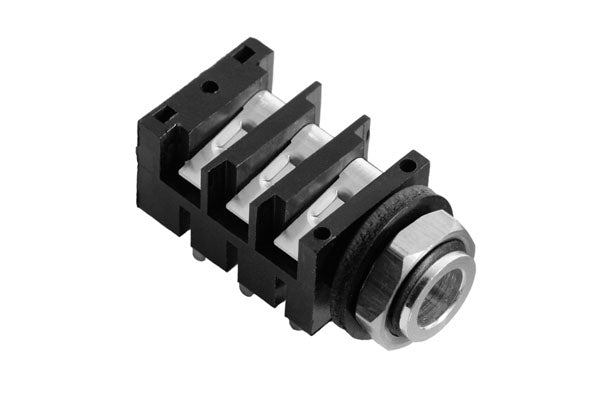

ACJS-MHDR 1/4" Dual Horizontal PCB Phone Jack, Stereo,Metal Bore,Metal Nut, PlasticThread

Name: ACJS-MHDR 1/4" Dual Horizontal PCB Phone Jack, Stereo,Metal Bore,Metal Nut, PlasticThread
Brand: Amphenol Audio
SKU: ACJS-MHDR
Availability: InStock

IMAGE MAY DIFFER

SKU:ACJS-MHDR

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Finish: Black
Current Carrying Capacity: 10A (depending on mating connector)
IP Rating: IP40
Termination: Solder
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 10mΩ
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25°C to + 70°C (-13°F to 158°F)
Mating Cycle Durability: 10,000
Housing Material: Nylon PA66 30% Glass Filled

1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Plastic Thread
