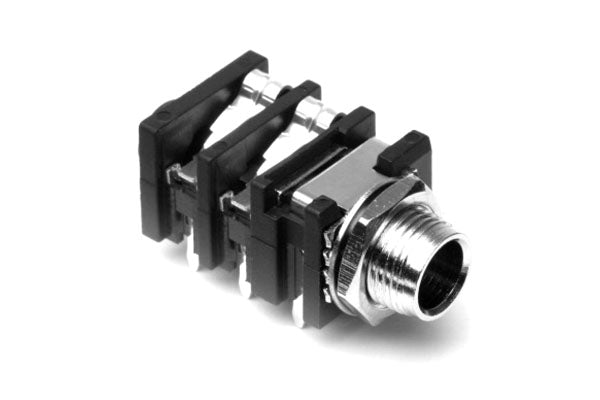

ACJS-MHOM 1/4" Phone Offset Jack, Stereo, Horizontal PCB,Metal Nut,Thread & Washer, Chassis Ground Connection. Comparable part no: NRJ6HM-1-PRE

Name: ACJS-MHOM 1/4" Phone Offset Jack, Stereo, Horizontal PCB,Metal Nut,Thread & Washer, Chassis Ground Connection. Comparable part no: NRJ6HM-1-PRE
Brand: Amphenol Audio
SKU: ACJS-MHOM
Availability: InStock

IMAGE MAY DIFFER

SKU:ACJS-MHOM

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 3
Finish: Black
Current Carrying Capacity: 10A (depending on mating connector)
IP Rating: IP40
Termination: Solder
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 10mΩ
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25°C to + 70°C (-13°F to 158°F)
Mating Cycle Durability: 10,000
Housing Material: Nylon PA66 30% Glass Filled

1/4" Phone Offset Jack, Stereo, Horizontal PCB, Metal Nut, Thread & Washer, Chassis Ground Connection
