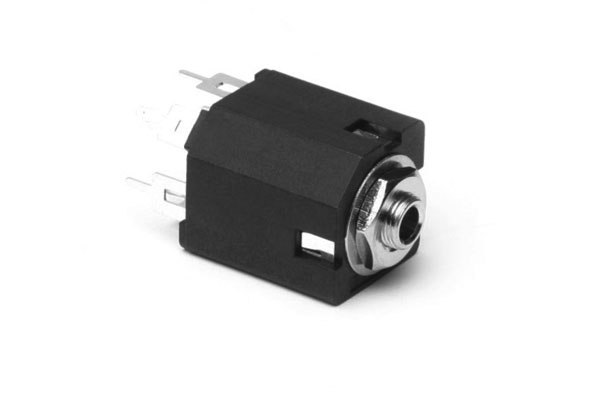

ACJS-MV35-3 3.5mm Single Vertical PCB Phone Jack, Stereo (3 Channels),Metal Bore,Metal Nut,MetalThread

Name: ACJS-MV35-3 3.5mm Single Vertical PCB Phone Jack, Stereo (3 Channels),Metal Bore,Metal Nut,MetalThread
Brand: Amphenol Audio
SKU: ACJS-MV35-3
Availability: InStock

IMAGE MAY DIFFER

SKU:ACJS-MV35-3

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet
3D Model
Assembly Instructions

Specifications

Finish: Black
Current Carrying Capacity: 10A (depending on mating connector)
IP Rating: IP40
Termination: Solder
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 10mΩ
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25°C to + 70°C (-13°F to 158°F)
Mating Cycle Durability: 10,000
Housing Material: Nylon PA66 30% Glass Filled

3.5mm Single Vertical PCB Phone Jack, Stereo (3 Channels), Metal Bore, Metal Nut, Metal Thread
