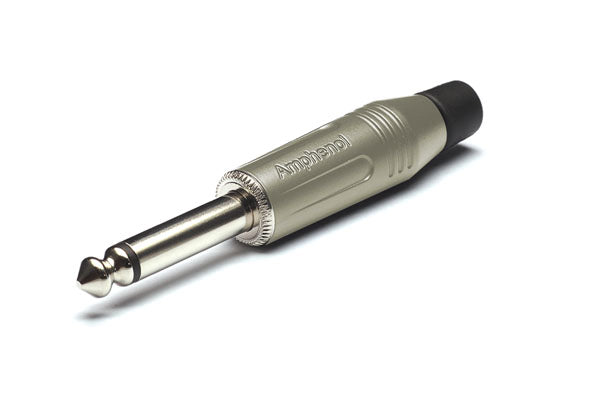

ACPM-GN 1/4" Phone Plug,Mono, Nickel Sleeve andTip, Nickel Shell

Name: ACPM-GN 1/4" Phone Plug,Mono, Nickel Sleeve andTip, Nickel Shell
Brand: Amphenol Audio
SKU: ACPM-GN
Availability: InStock

IMAGE MAY DIFFER

SKU:ACPM-GN

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet
Assembly Instructions

Specifications

No. of Positions: 2
Finish: Nickel
Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
IP Rating: IP40
Termination: Solder
Max Wire Gauge: AWG 16˜1.5mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: Depends on mating connector
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25ºC to +70ºC (-13ºF to 158ºF)
Mating Cycle Durability: 1,000
Housing Material: Diecast Zinc Alloy EZDA No.3

1/4" Phone Plug, Mono, Nickel Sleeve and Tip, Nickel Shell
