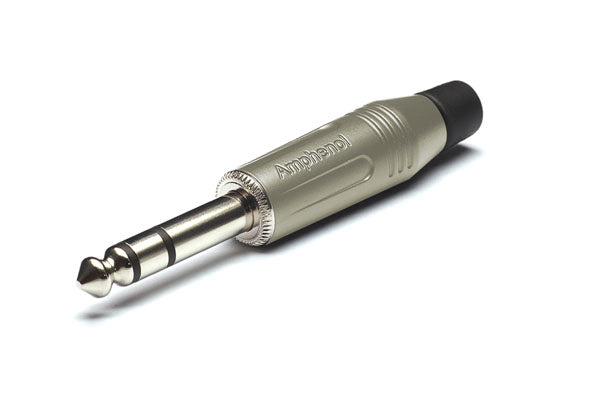

ACPS-GN 1/4" Stereo Straight Plug, 3 Pole, Nickel Ring, Sleeve andTip

Name: ACPS-GN 1/4" Stereo Straight Plug, 3 Pole, Nickel Ring, Sleeve andTip
Brand: Amphenol Audio
SKU: ACPS-GN
Availability: InStock

IMAGE MAY DIFFER

SKU:ACPS-GN

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 3
Finish: Nickel
Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
IP Rating: IP40
Termination: Solder
Max Wire Gauge: AWG 18˜1mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: Depends on mating connector
Insulation Resistance: < 2GΩ / >1GΩ after Damp Heat Test
Operating Temperature: -25°C to + 75°C (-13°F to 158°F)
Mating Cycle Durability: 1,000
Housing Material: Diecast Zinc Alloy EZDA No.3

1/4" Stereo Straight Plug, 3 Pole, Nickel Ring, Sleeve and Tip
