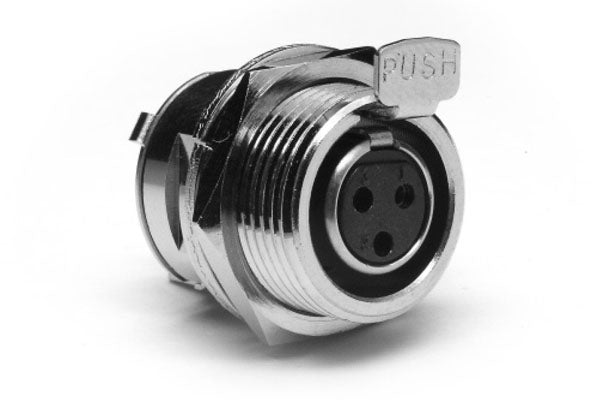

AG3FCE 3 PoleMini XLR ChassisMount,GTYPE, Female, Stamped Contacts, Vertical PCB, Nickel Finish
AG3FCE 3 PoleMini XLR ChassisMount,GTYPE, Female, Stamped Contacts, Vertical PCB, Nickel Finish
IMAGE MAY DIFFER
SKU:AG3FCE
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Female
Finish: Nickel
Current Carrying Capacity: 5A
IP Rating: IP00
Contact Type: Stamped
Contact Plating: Gold over Silver
Termination: Printed Circuit Board (PCB) or Solder Bucket
Max Wire Gauge: 24AWG-0.5mm²
Flammability Rating: UL94V-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 1000V
Test Voltage AC RMS: 125V AC
Typical Contact Resistance: < 10mΩ
Insulation Resistance: > 510MΩ / >10MΩ after Damp Heat Test
Operating Temperature: -30°C to + 80°C (-20°F to 176°F)
Mating Cycle Durability: 5000
Housing Material: Nickel Plated Bronze & Zinc
3 Pole Mini XLR Chassis Mount, G Type, Female, Stamped Contacts, Vertical PCB, Nickel Finish
