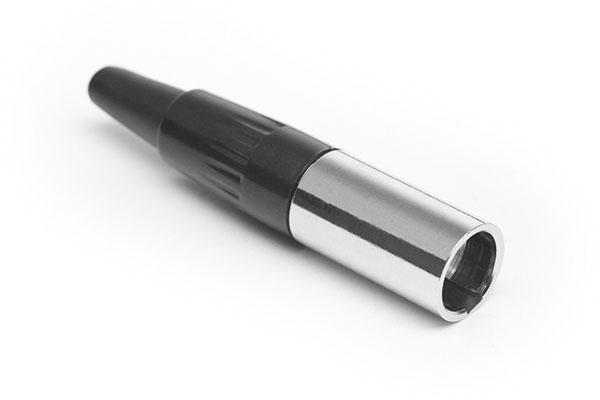

AG3M 3 PoleMini XLR Cable Connectors,GTYPE,Male,Machined Contacts, Nickel Finish. Comparable part no:TA3M

Name: AG3M 3 PoleMini XLR Cable Connectors,GTYPE,Male,Machined Contacts, Nickel Finish. Comparable part no:TA3M
Brand: Amphenol Audio
SKU: AG3M
Availability: InStock

IMAGE MAY DIFFER

SKU:AG3M

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 3
Gender: Male
Finish: Nickel
Current Carrying Capacity: 5A
IP Rating: IP40
Contact Type: Machined
Contact Plating: Gold over Silver
Termination: Printed Circuit Board (PCB) or Solder Bucket
Max Wire Gauge: 24AWG-0.5mm²
Flammability Rating: UL94V-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 1000V
Test Voltage AC RMS: 125V AC
Typical Contact Resistance: < 10mΩ
Insulation Resistance: > 510MΩ / >10MΩ after Damp Heat Test
Operating Temperature: -30°C to + 80°C (-20°F to 176°F)
Mating Cycle Durability: 5000
Housing Material: Nickel Plated Bronze & Zinc

3 Pole Mini XLR Cable Connectors, G Type, Male, Machined Contacts, Nickel Finish

View full details
