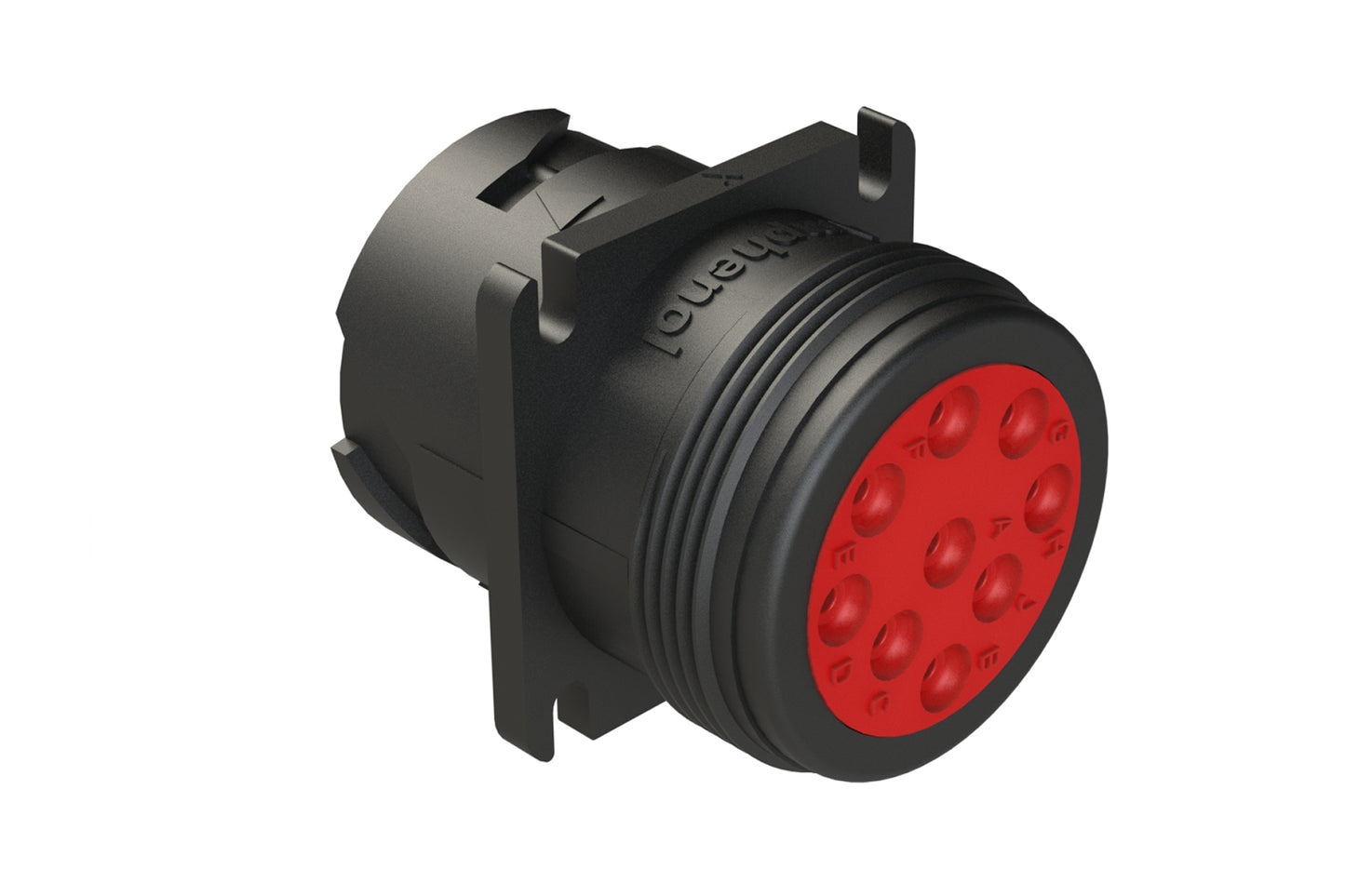

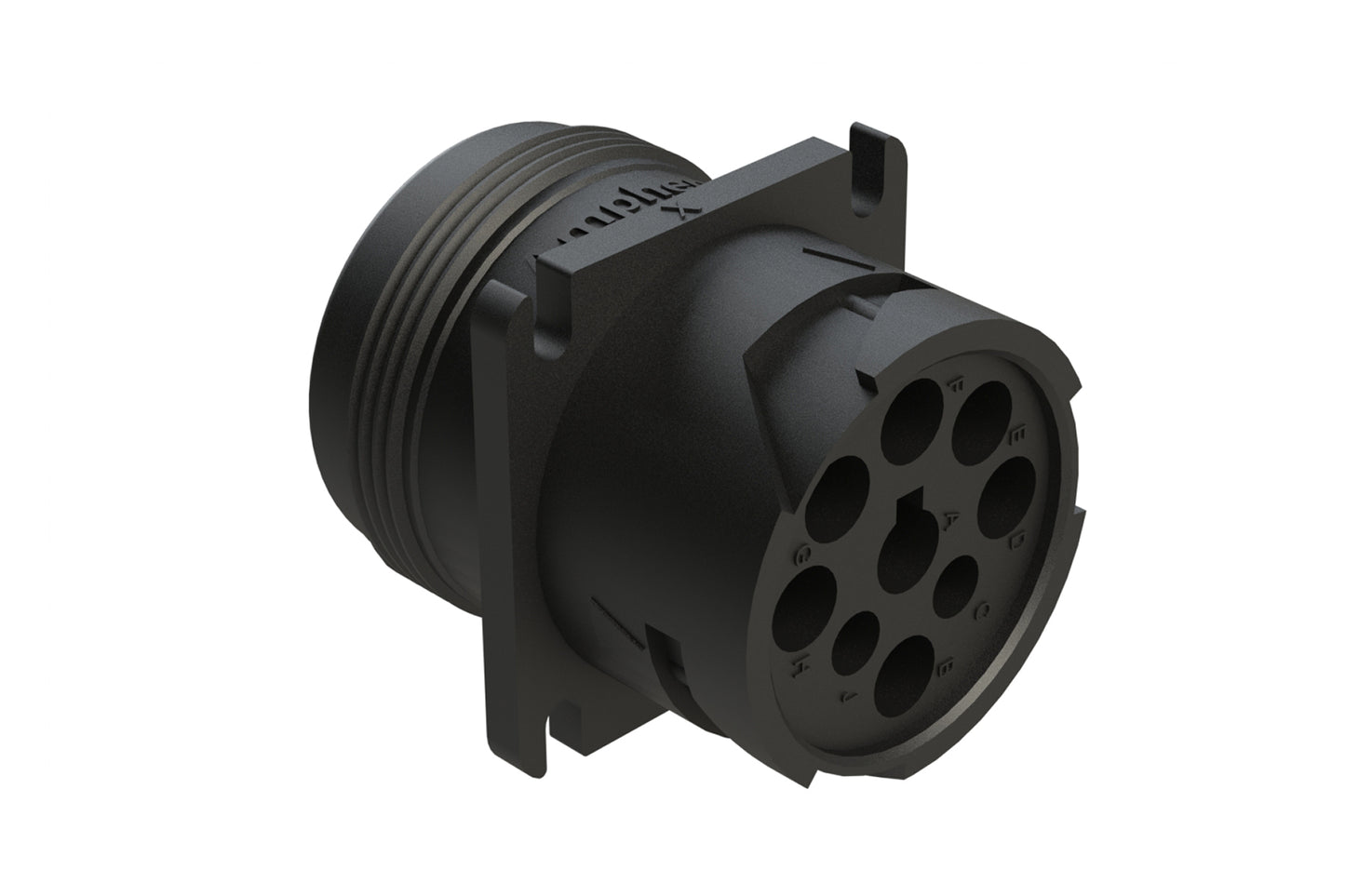

AHD10-9-1939P 9 Position Receptacle, Male, Flange, Threaded Rear. HD10-9-1939P
AHD10-9-1939P 9 Position Receptacle, Male, Flange, Threaded Rear. HD10-9-1939P
IMAGE MAY DIFFER
SKU:AHD10-9-1939P
Regular price
$1.00 AUD
Regular price
Sale price
$1.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
No. of Positions: 9Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AHD16-9-1939S,AHD16-9-1939S80,AHD16-9-1939S8R,AHD16-9-1939SE, AHD17-9-1939S
Seal Diameter: 2.54MM (.100") - 3.81mm (.150")
Wire Range: 14-20 AWG
Shape: Circular
9 Position Receptacle, Male, Flange, Threaded Rear
