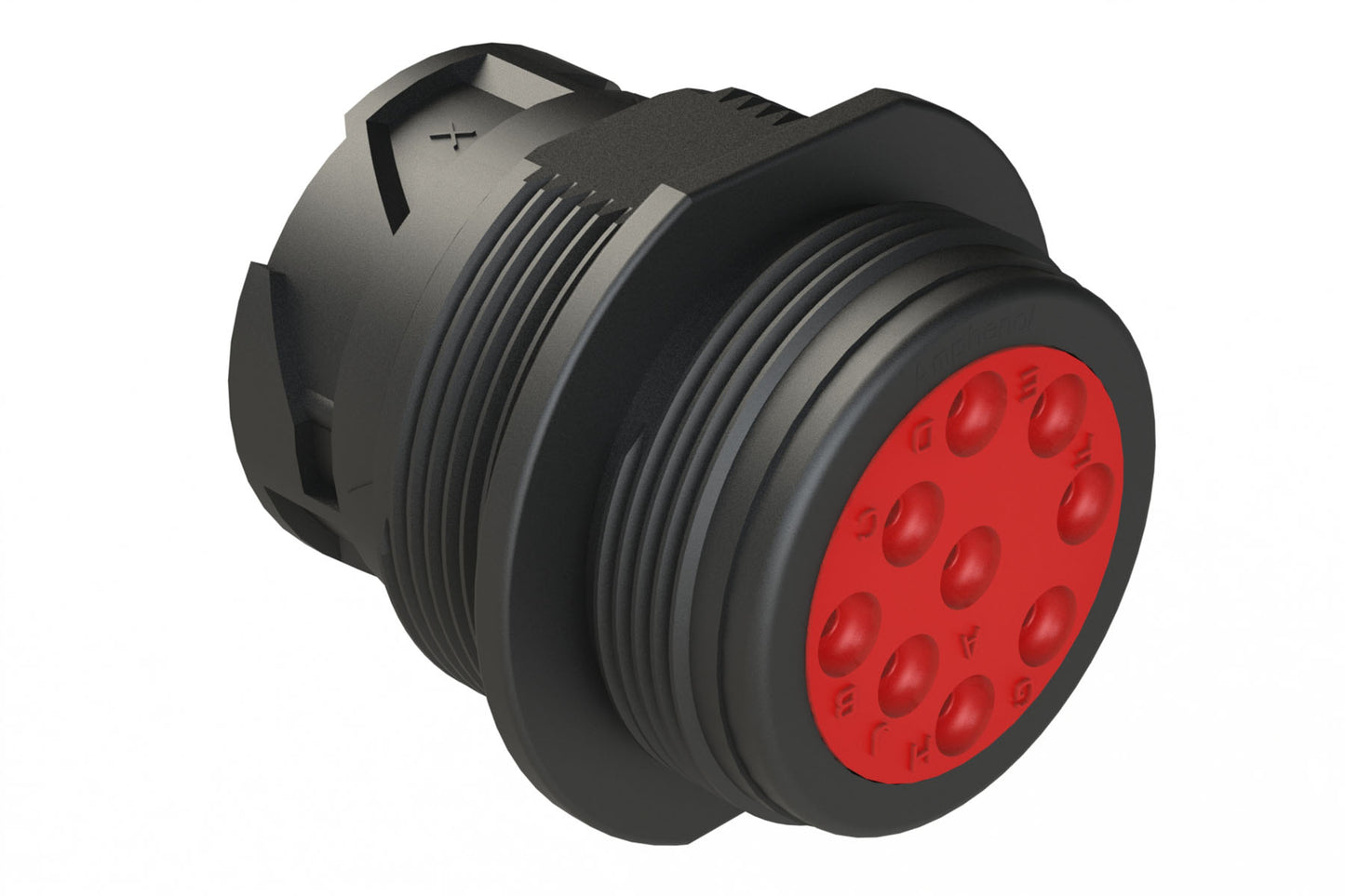

AHD10-9-1939P-B022 9 Position, J1939-13 Type 1 Panel Mount Receptacle, D-Hole. HD10-9-1939P-B022
AHD10-9-1939P-B022 9 Position, J1939-13 Type 1 Panel Mount Receptacle, D-Hole. HD10-9-1939P-B022
IMAGE MAY DIFFER
SKU:AHD10-9-1939P-B022
Regular price
$1.00 AUD
Regular price
Sale price
$1.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
No. of Positions: 9Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AHD16-9-1939S80,AHD16-9-1939S8R, AHD16-9-1939S,AHD16-9-1939S80,AHD16-9-1939S8R,AHD16-9-1939SE
Wire Range: 14-20 AWG
Shape: Rectangular
9 Position, J1939-13 Type 1 Panel Mount Receptacle, D-Hole
