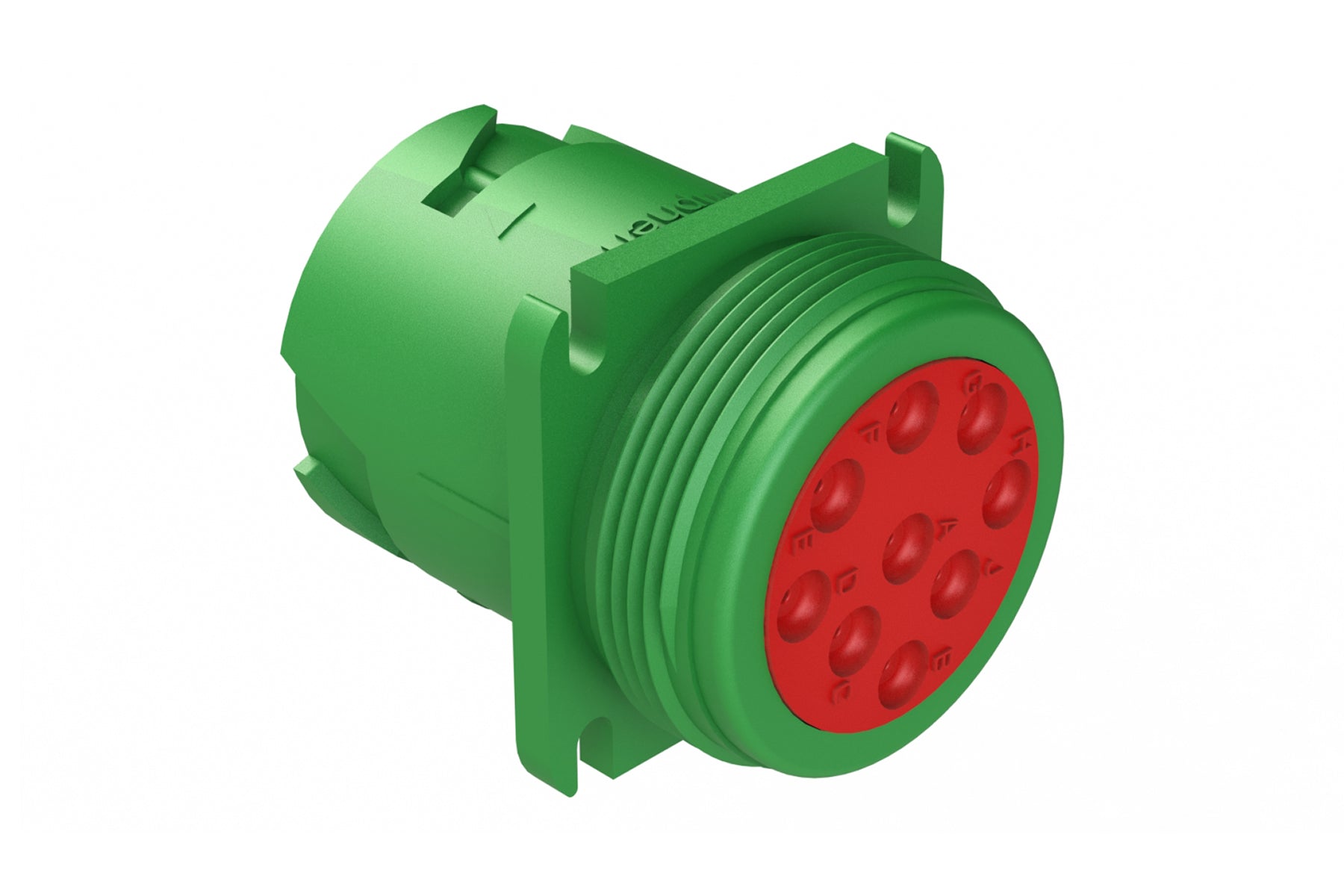

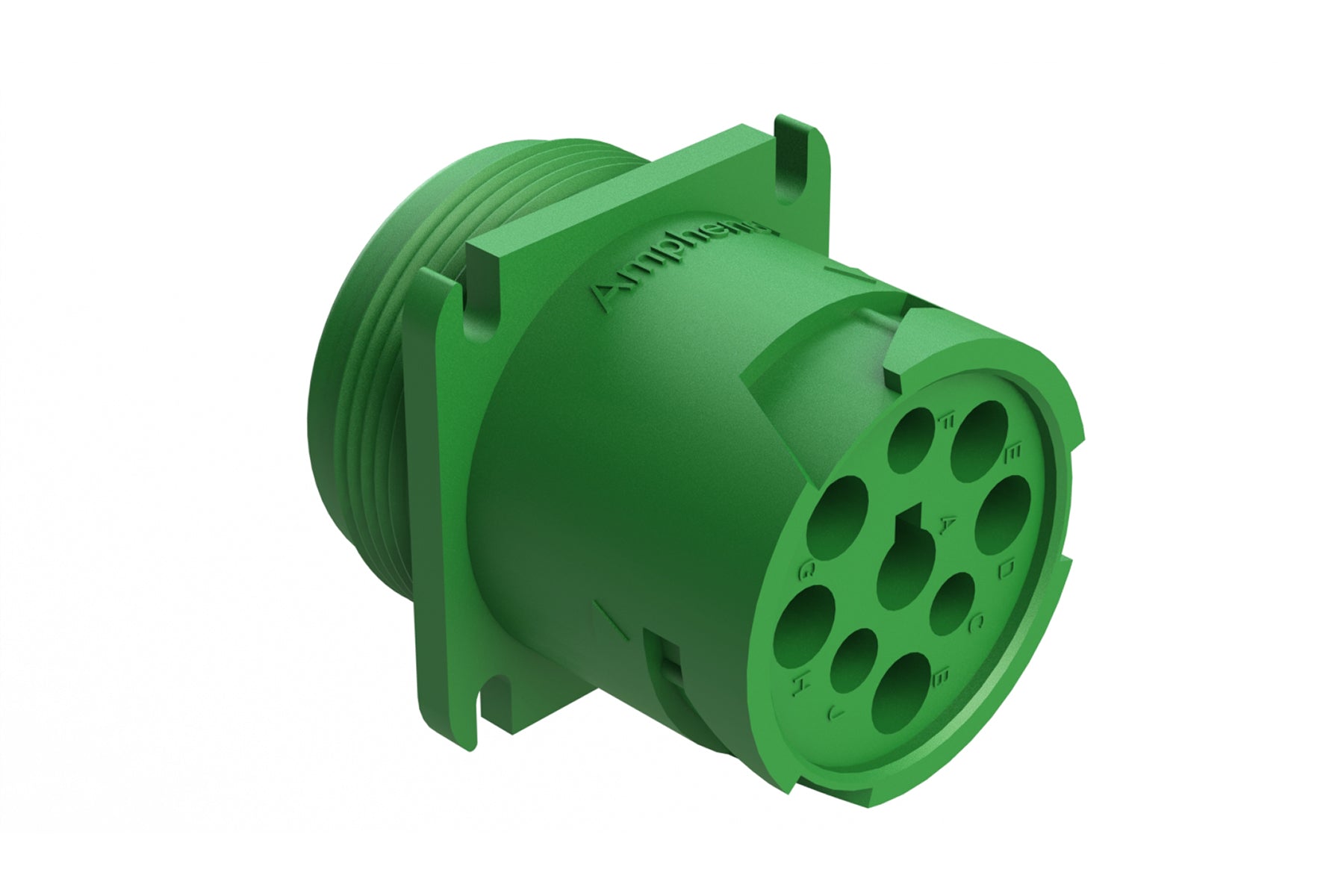

AHD10-9-1939P8R 9 Position Receptacle with Reduced Rear Seal, Male Flange Receptacle, Green, Type II. Threaded Rear, J1939. HD10-9-1939PE-P080
AHD10-9-1939P8R 9 Position Receptacle with Reduced Rear Seal, Male Flange Receptacle, Green, Type II. Threaded Rear, J1939. HD10-9-1939PE-P080
IMAGE MAY DIFFER
SKU:AHD10-9-1939P8R
Regular price
$1.00 AUD
Regular price
Sale price
$1.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 9Gender: Male
Contact Size: 16
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AHD16-9-1939S80,AHD16-9-1939S8R,AHD16-9-1939S80,AHD16-9-1939S8R
Seal Diameter: 1.35mm (.053") -3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Circular
9 Position Receptacle with Reduced Rear Seal, Male Flange Receptacle, Green, Type II. Threaded Rear, J1939
