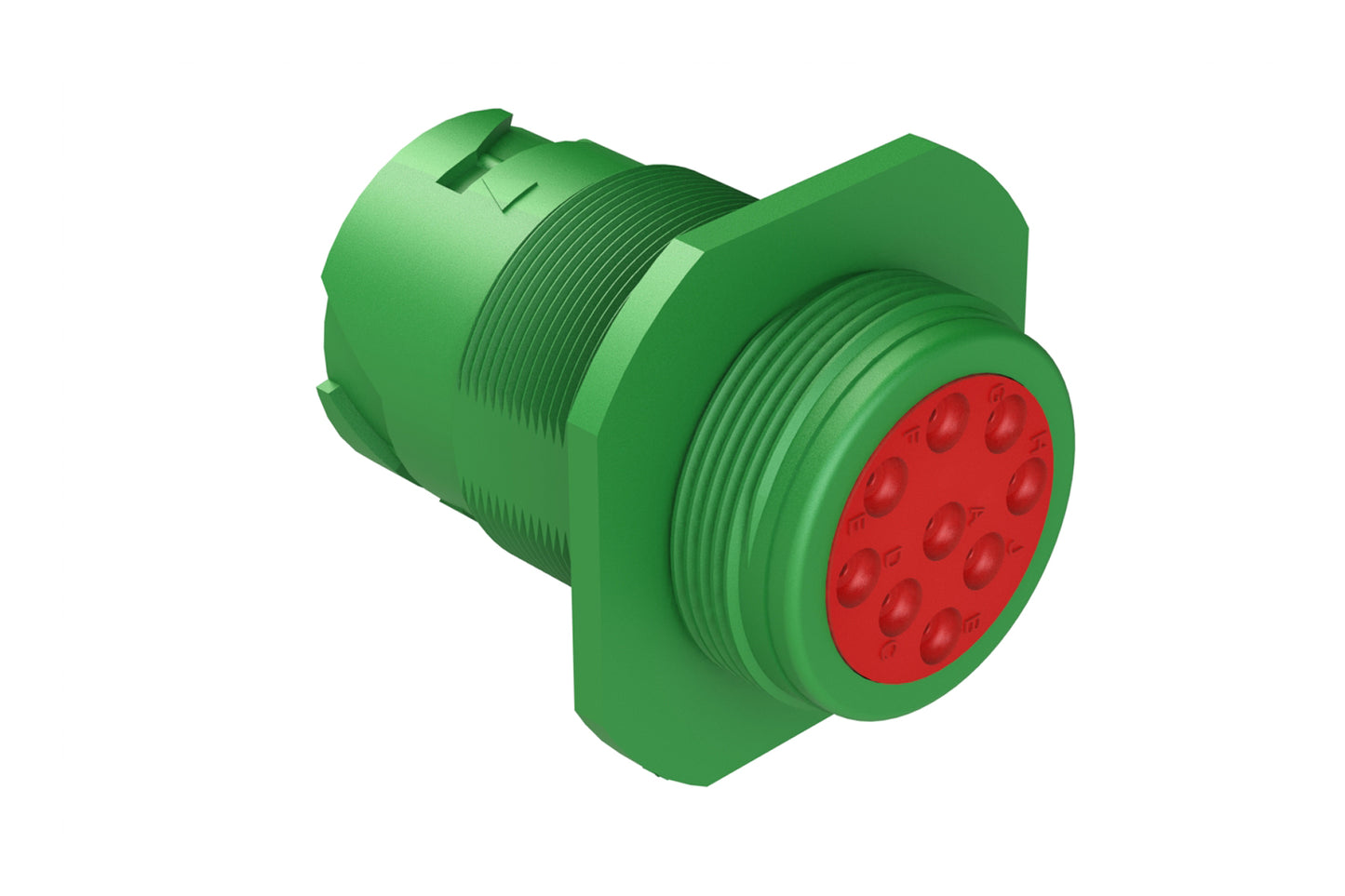

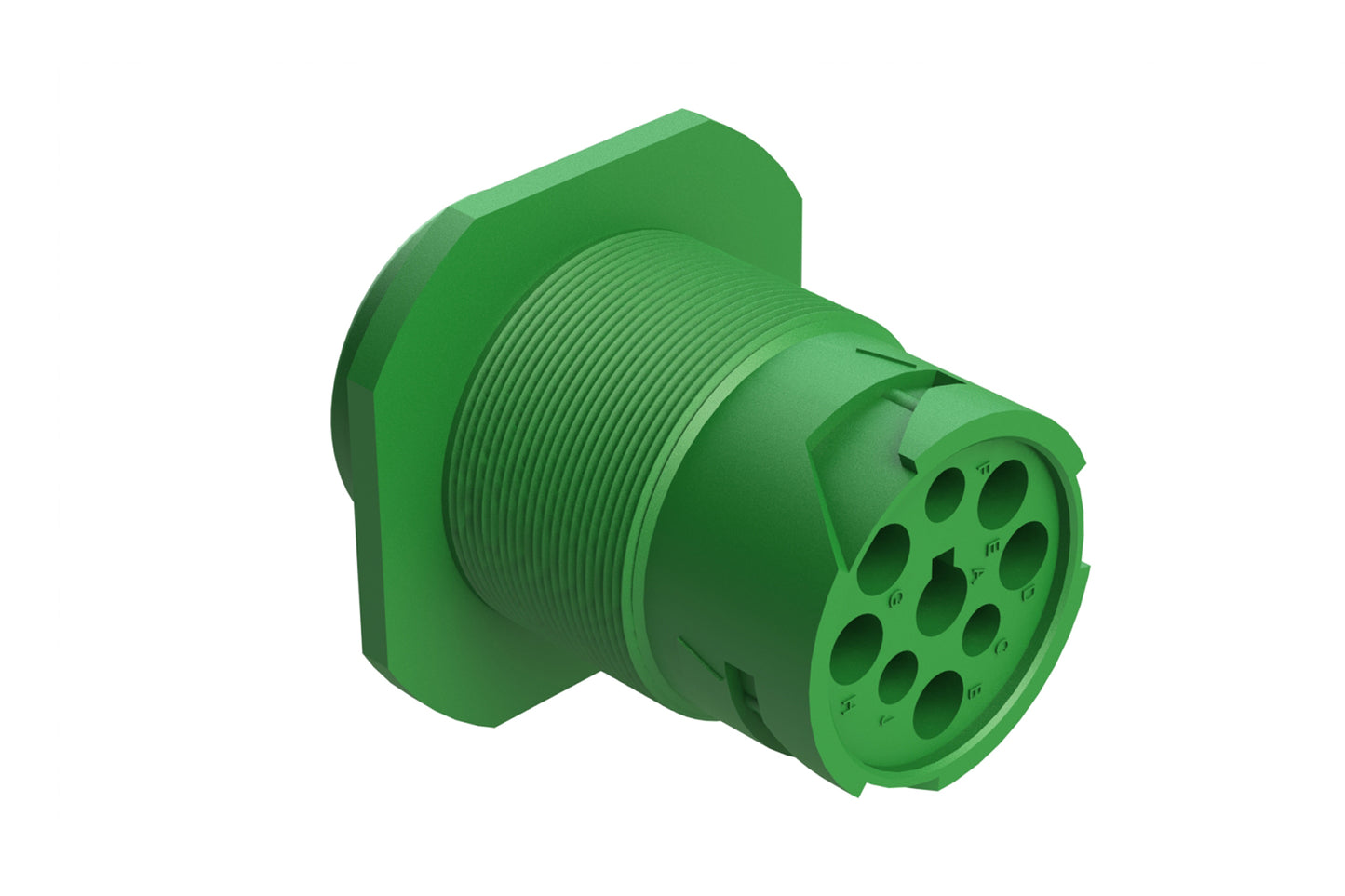

AHD17-9-1939PES80 9 Position Jam Nut Receptacle 9 Position Receptacle, J1939 (TYPE 2), EXTENTED SHROUD
AHD17-9-1939PES80 9 Position Jam Nut Receptacle 9 Position Receptacle, J1939 (TYPE 2), EXTENTED SHROUD
IMAGE MAY DIFFER
SKU:AHD17-9-1939PES80
Regular price
$1.00 AUD
Regular price
Sale price
$1.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 9Gender: Male
Contact Size: 16
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHD16-9-1939S80 & AHD16-9-1939S8R
Seal Diameter: 2.54mm (.100") - 3.81mm (.150")
Wire Range: 14-20 AWG
Shape: Circular
9 Position Jam Nut Receptacle 9 Position Receptacle, J1939 (TYPE 2), EXTENTED SHROUD
