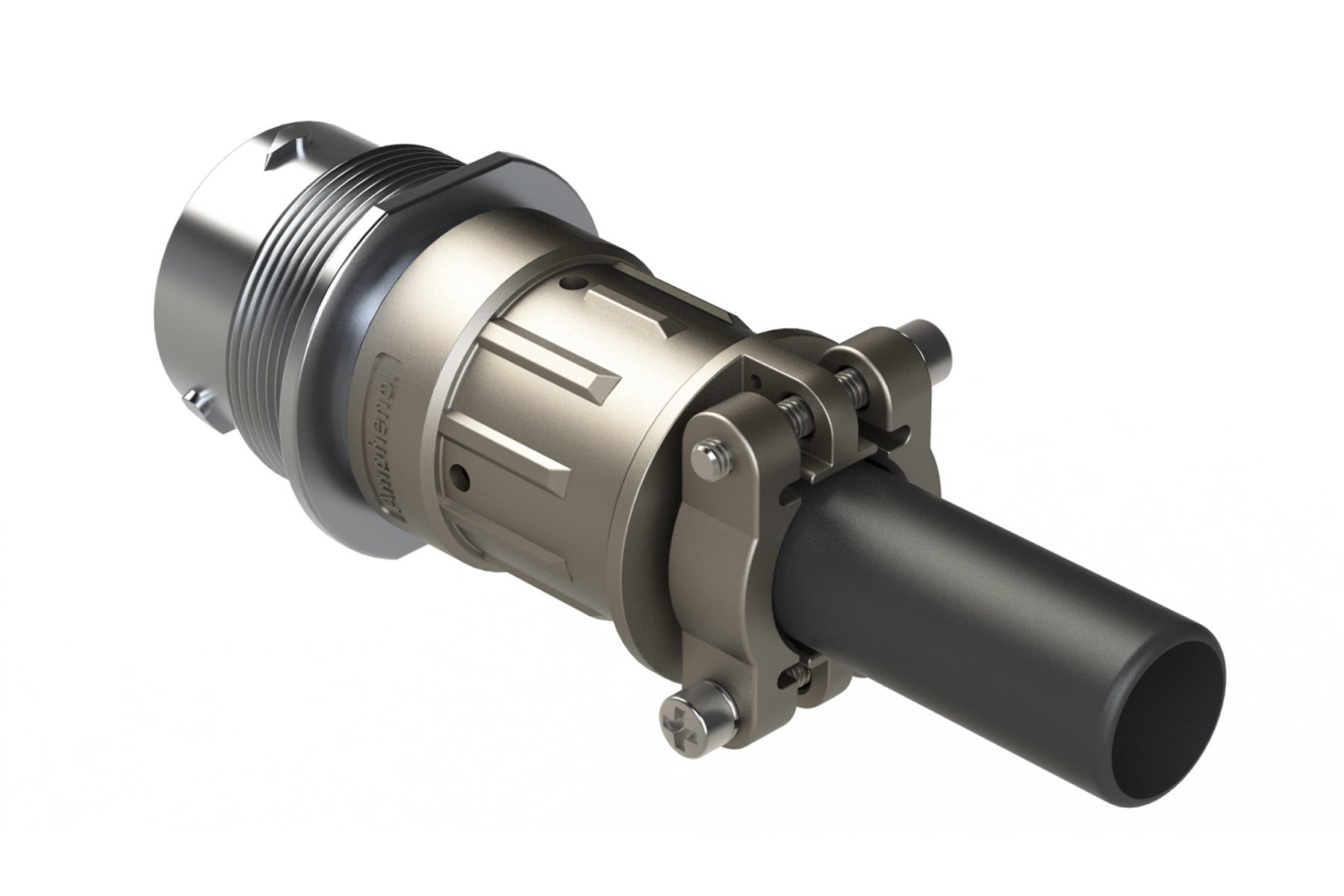

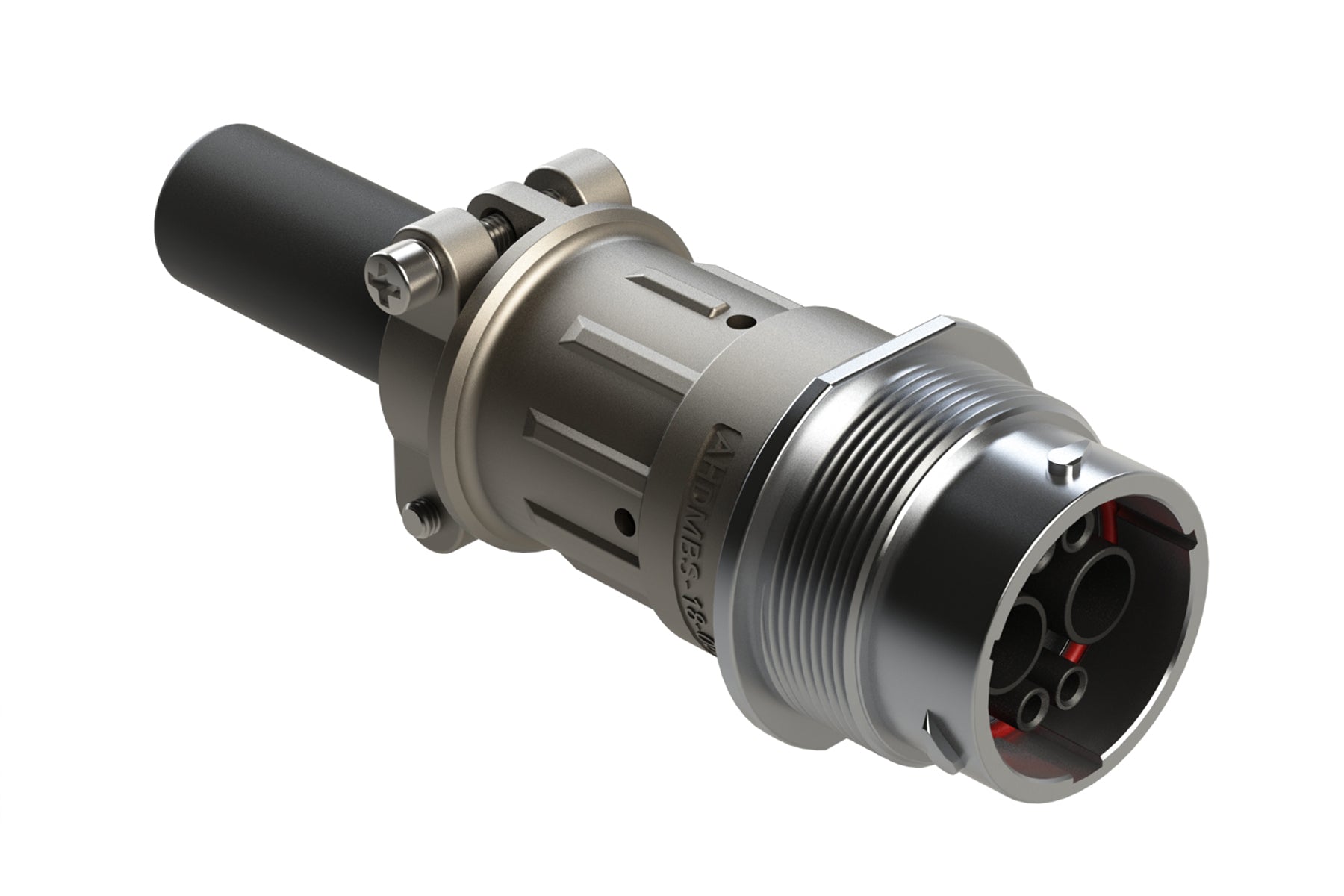

AHDM04-18-06SN-C030-059 2 Position Receptacle Kit, Socket, Shell Size 18, Wide Thread, Cable Clamp Backshell
AHDM04-18-06SN-C030-059 2 Position Receptacle Kit, Socket, Shell Size 18, Wide Thread, Cable Clamp Backshell
IMAGE MAY DIFFER
SKU:AHDM04-18-06SN-C030-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Female (Reversed)
Contact Size: 4
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-18-06P* (* = SEAL TYPE) (C030 OPTION)
Seal Diameter: 6.63 mm (.261")-7.41 mm (.292")
Wire Range: 4-6AWG
Shape: Circular
2 Position Receptacle Kit, Socket, Shell Size 18, Wide Thread, Cable Clamp Backshell
