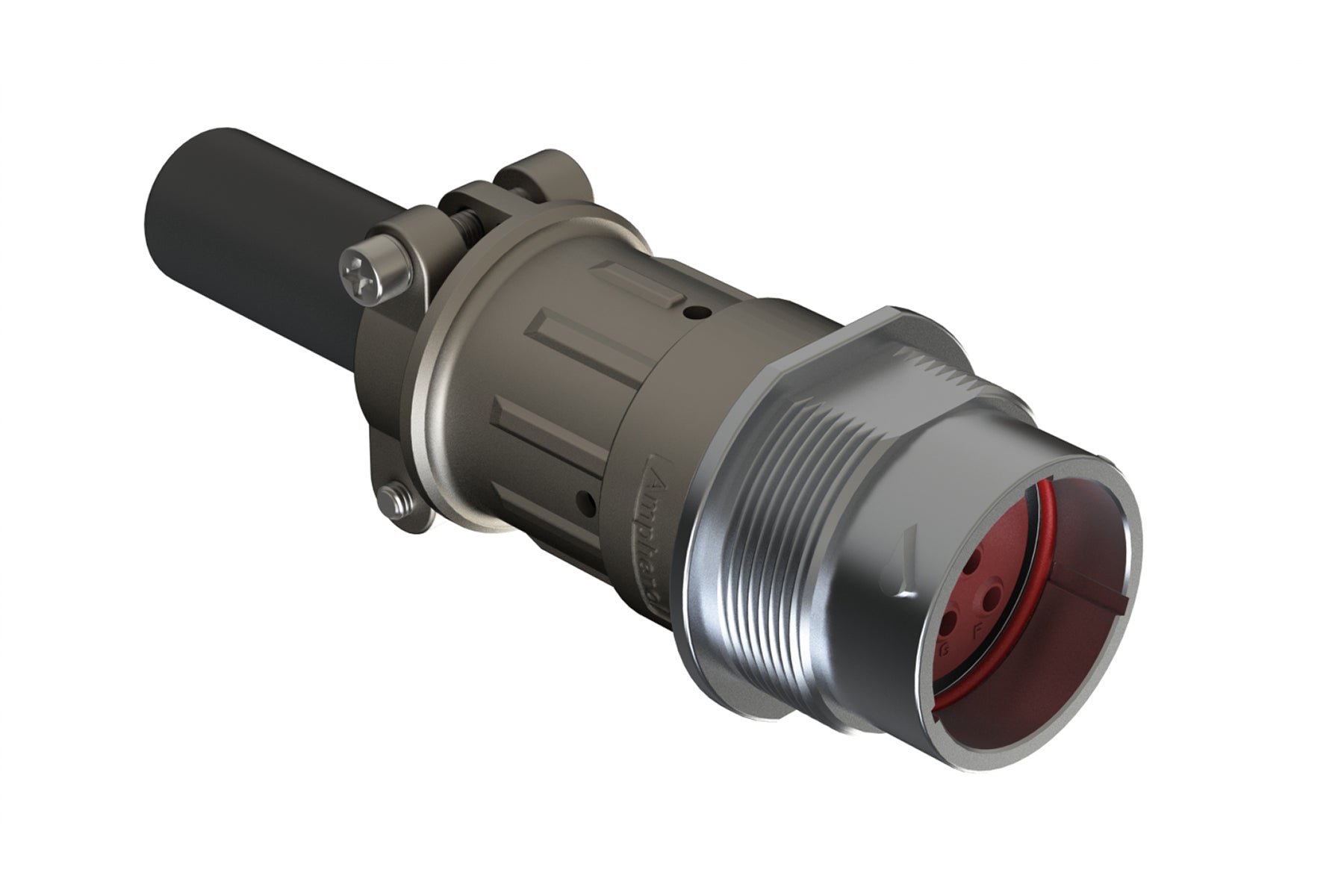

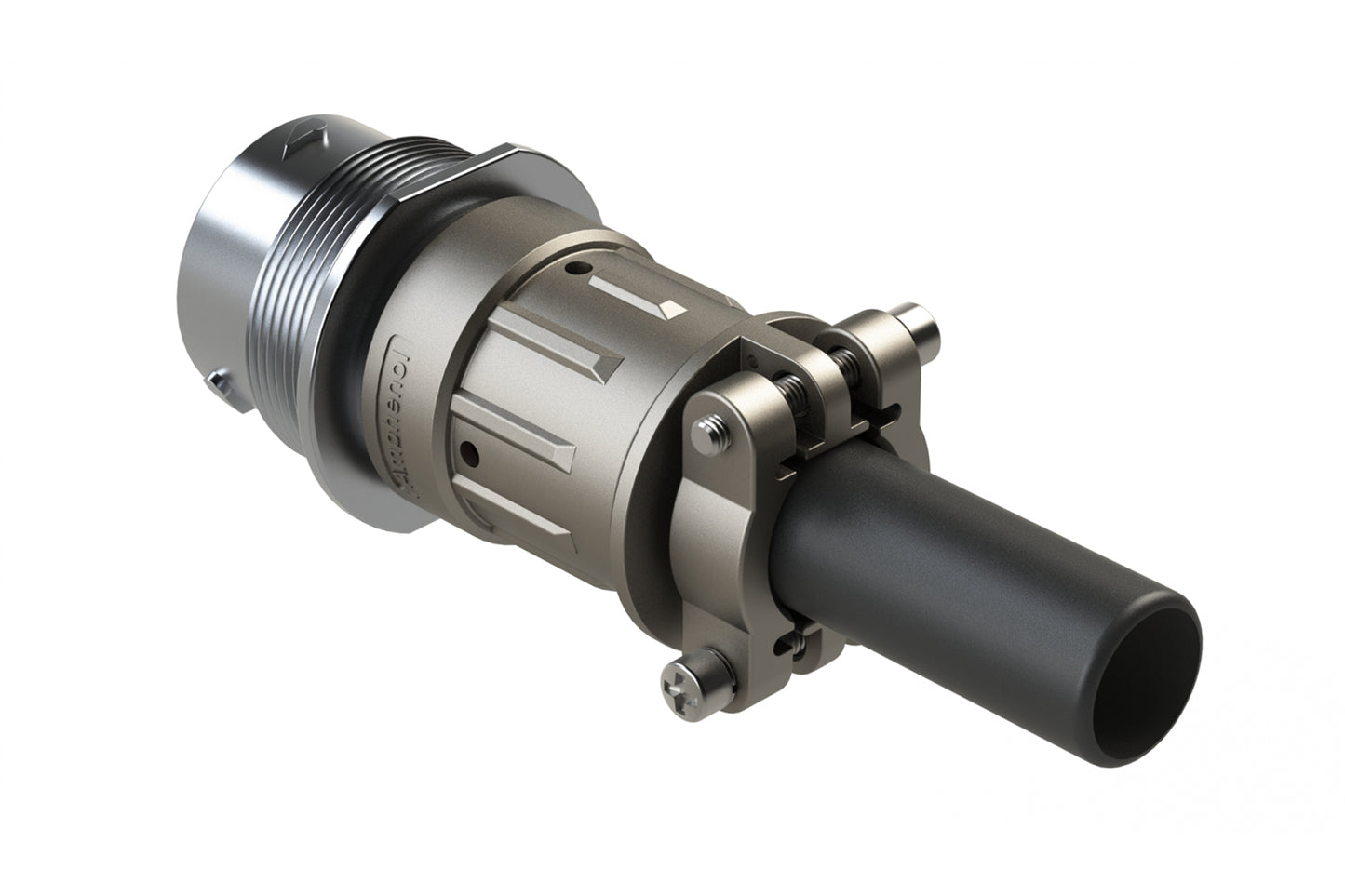

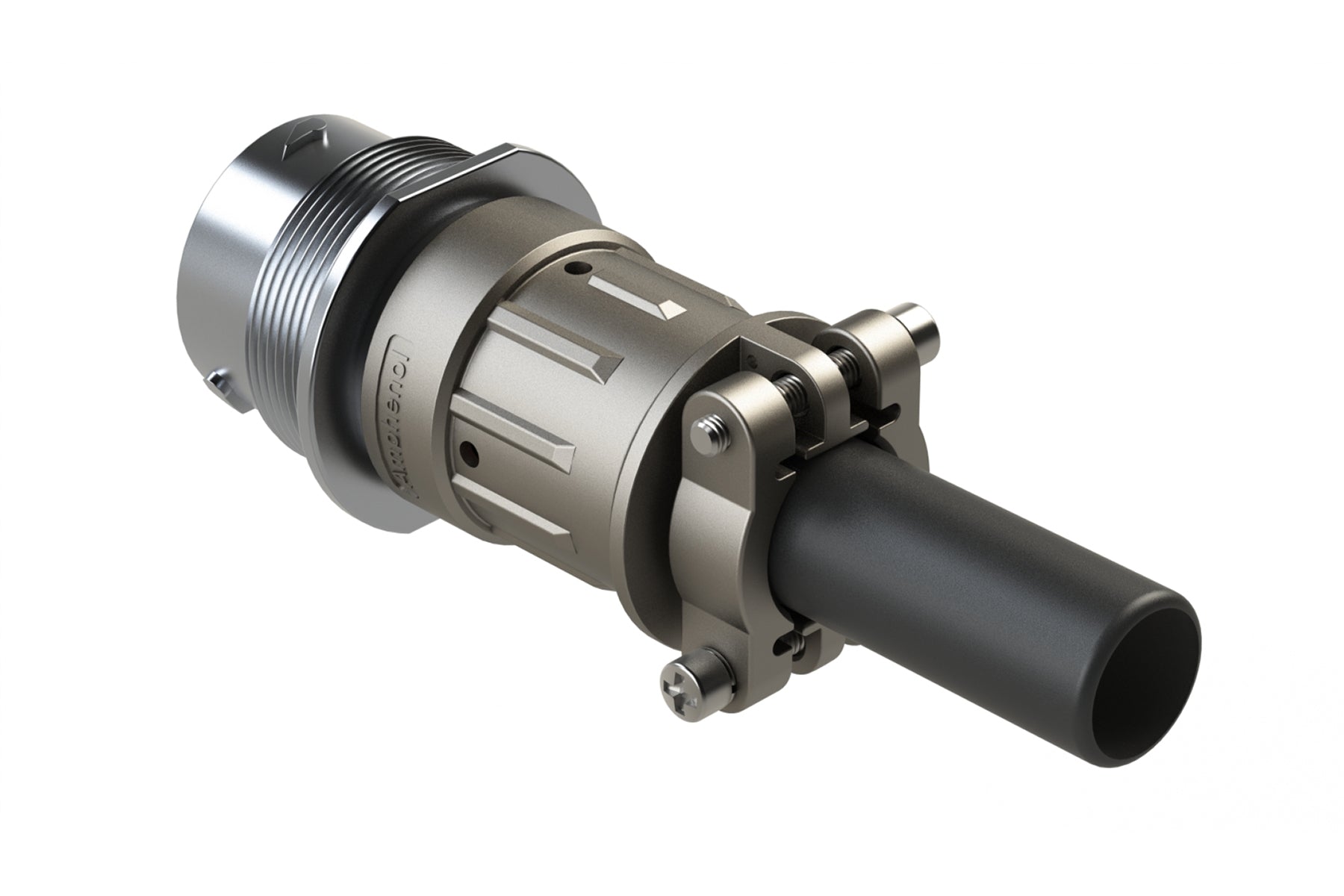

AHDM04-18-08PR-059 8 Position Receptacle Kit, Pin, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-18-8PE-059
AHDM04-18-08PR-059 8 Position Receptacle Kit, Pin, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-18-8PE-059
IMAGE MAY DIFFER
SKU:AHDM04-18-08PR-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Male (Standard)
Contact Size: 12
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-18-08SN, AHDM06-18-08SR
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG
Shape: Circular
8 Position Receptacle Kit, Pin, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell
