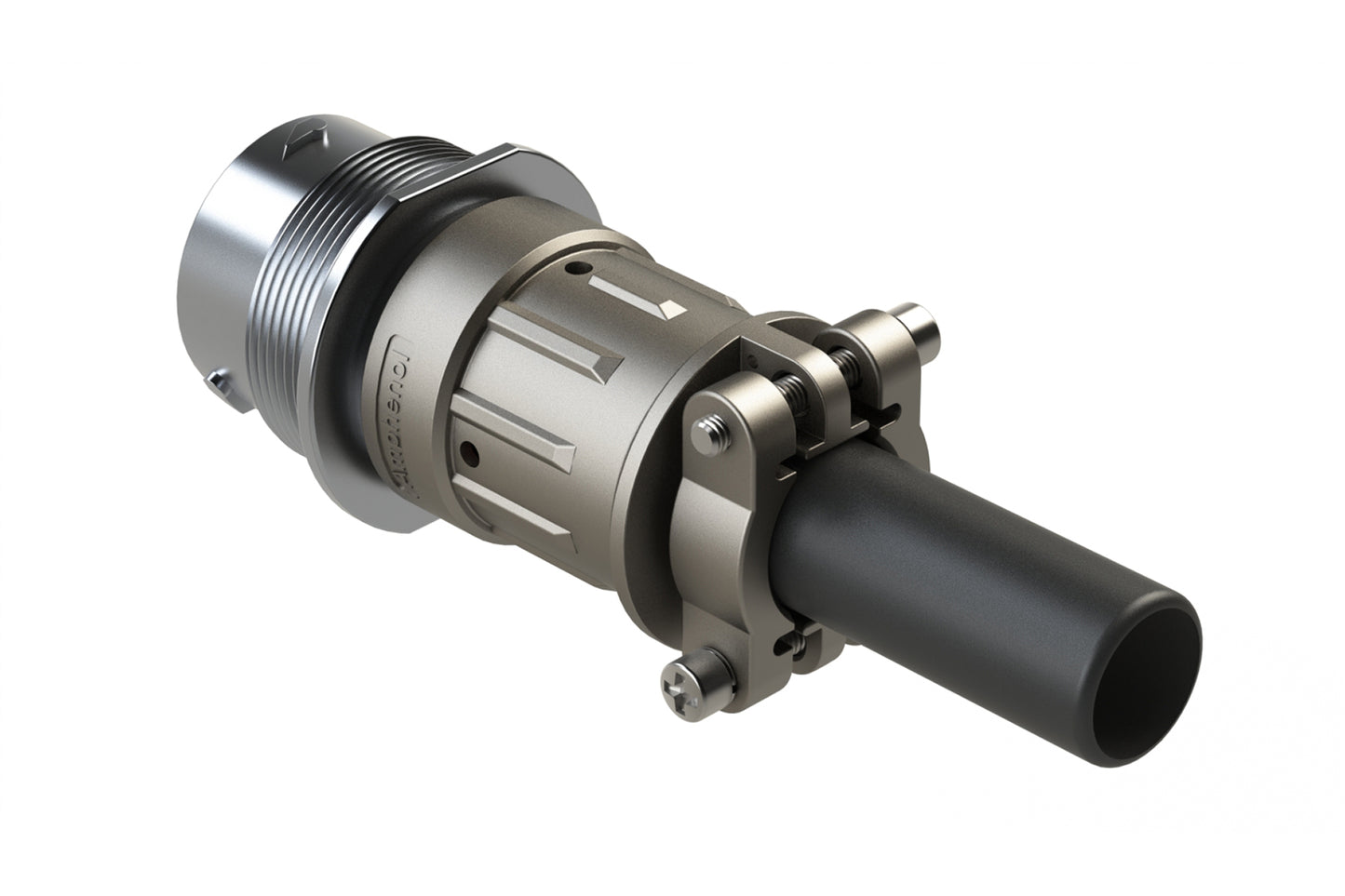

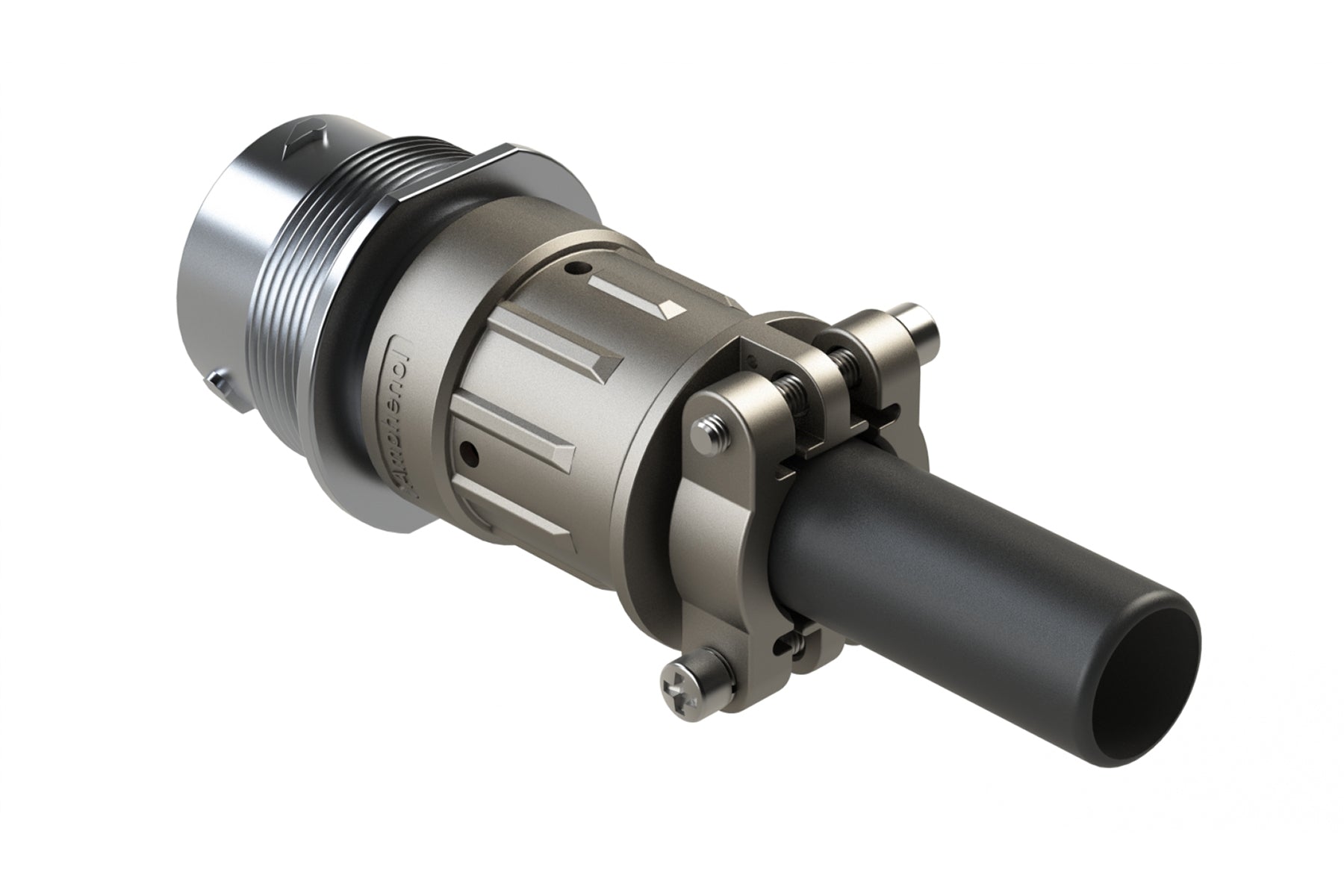

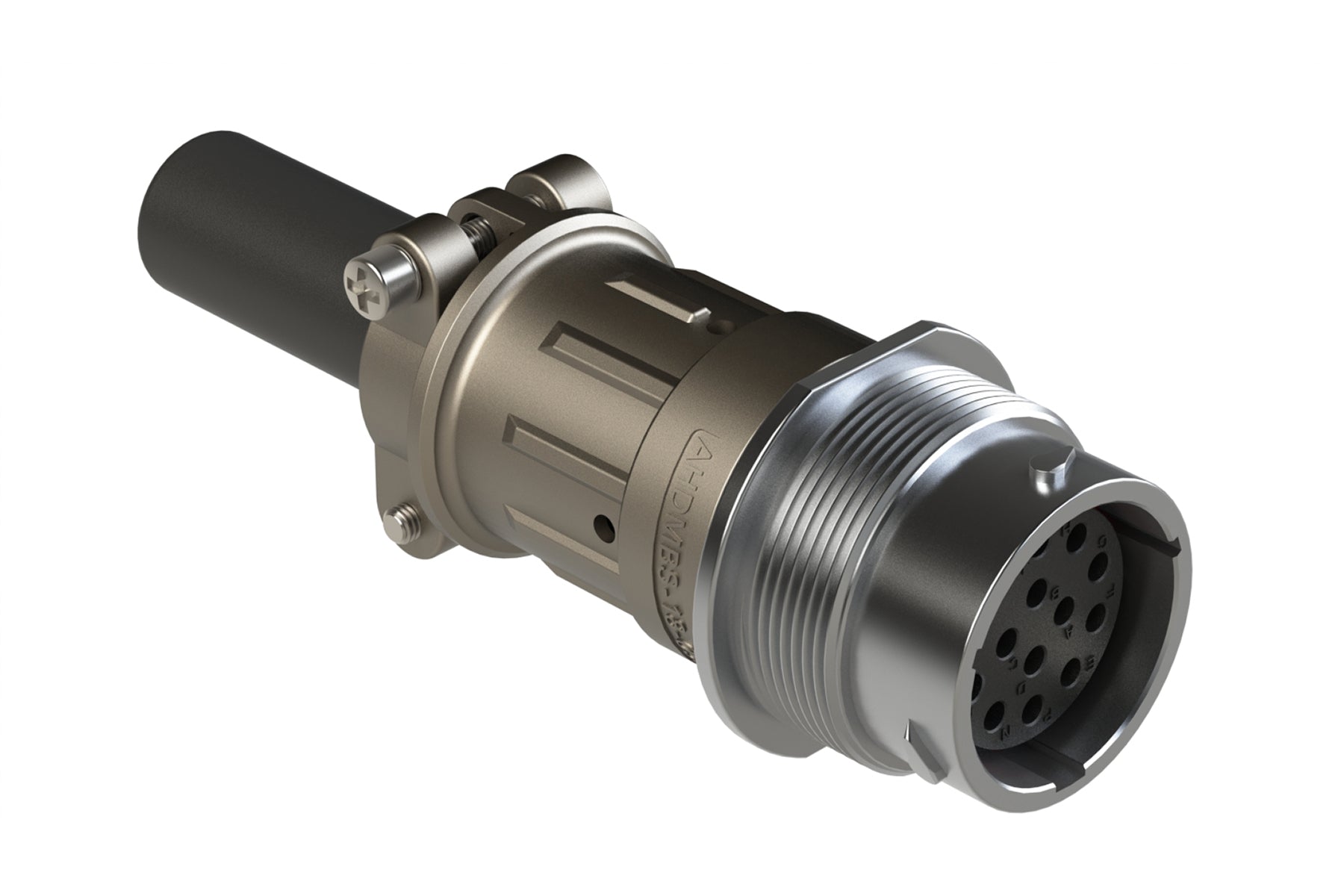

AHDM04-18-14SR-059 14 Position Receptacle Kit, Socket, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-18-14SE-059
AHDM04-18-14SR-059 14 Position Receptacle Kit, Socket, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-18-14SE-059
IMAGE MAY DIFFER
SKU:AHDM04-18-14SR-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 14Gender: Female (Reversed)
Contact Size: 16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-18-14PN, AHDM06-18-14PR
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Circular
14 Position Receptacle Kit, Socket, Shell Size 18, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell
