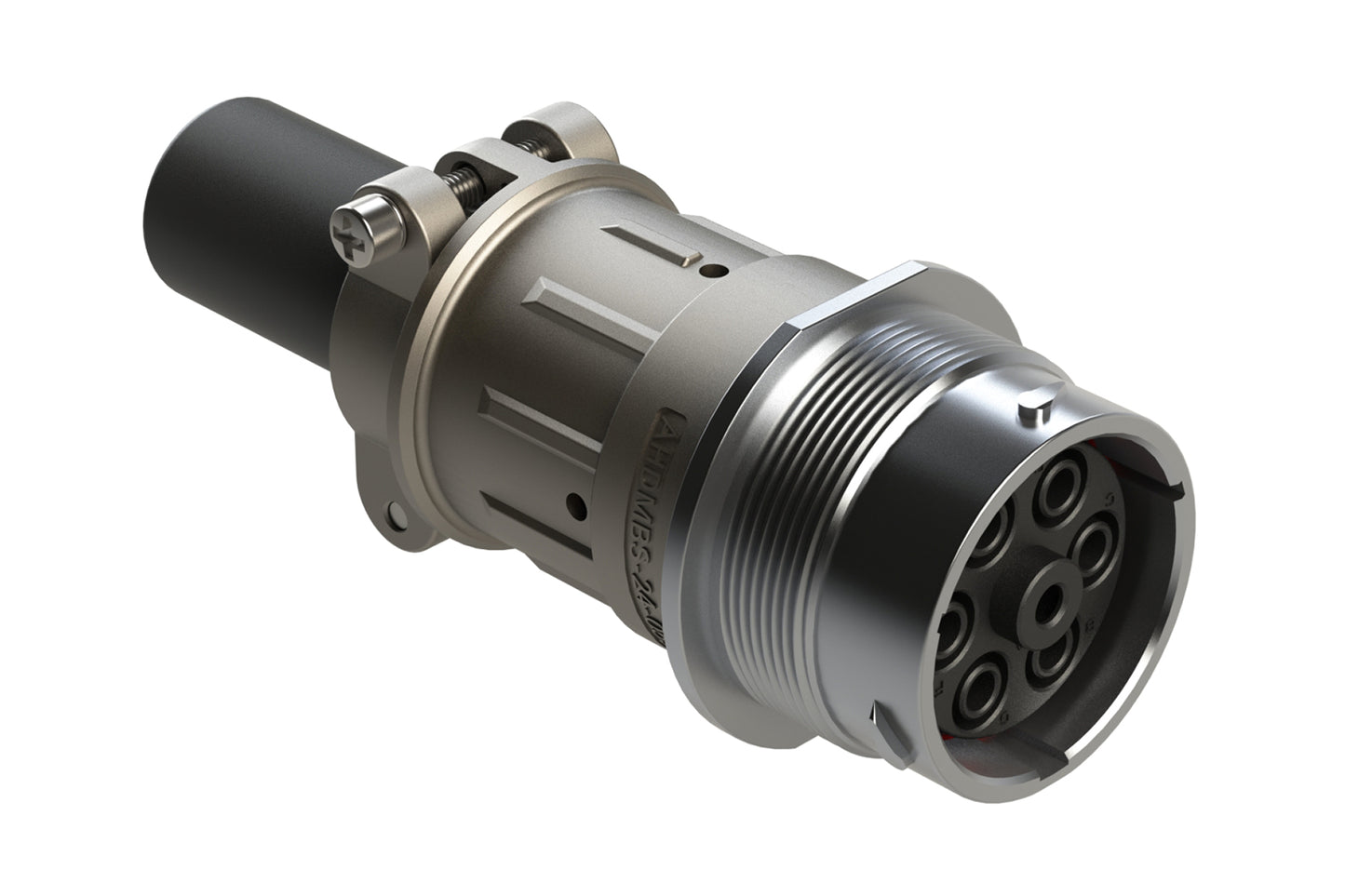

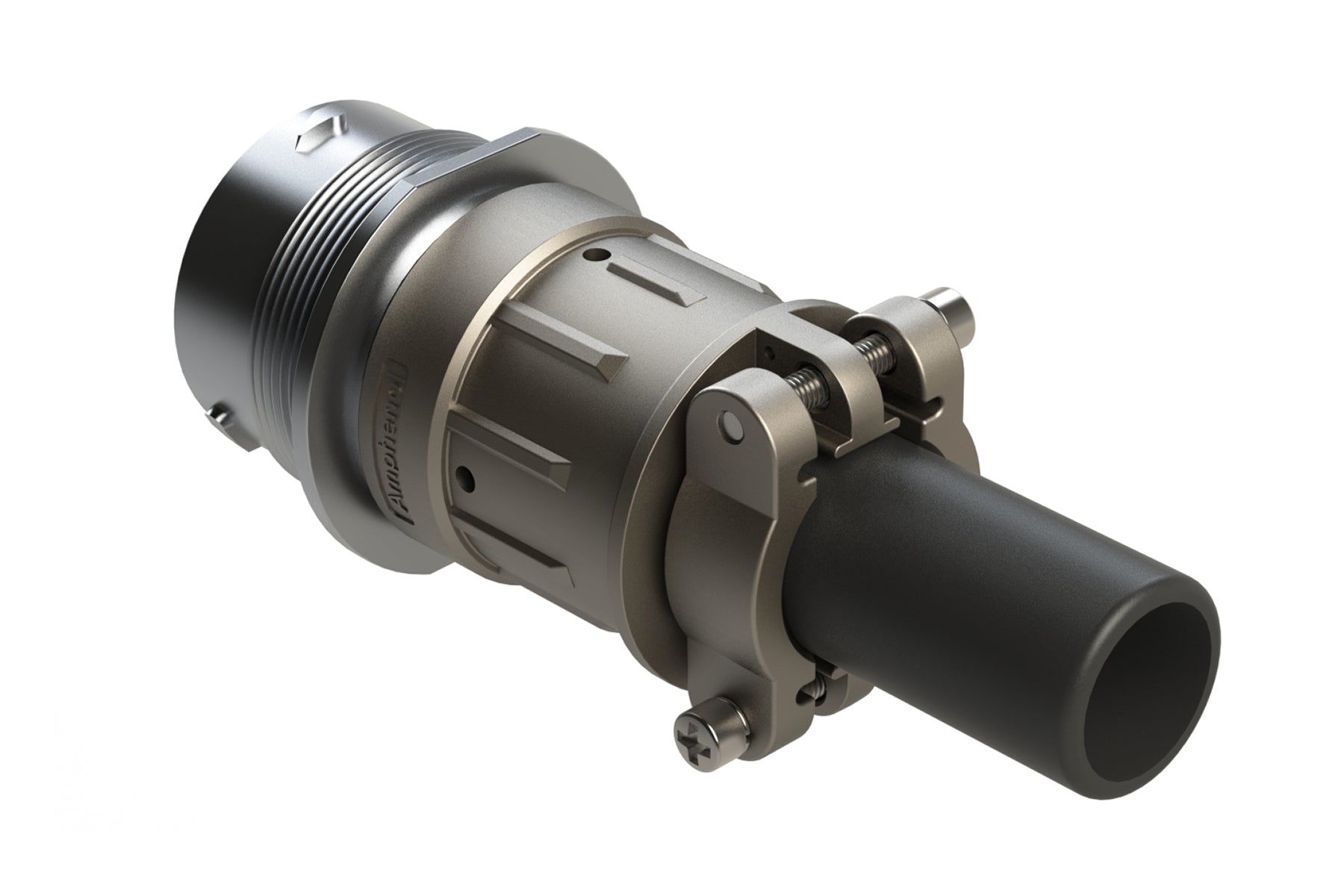

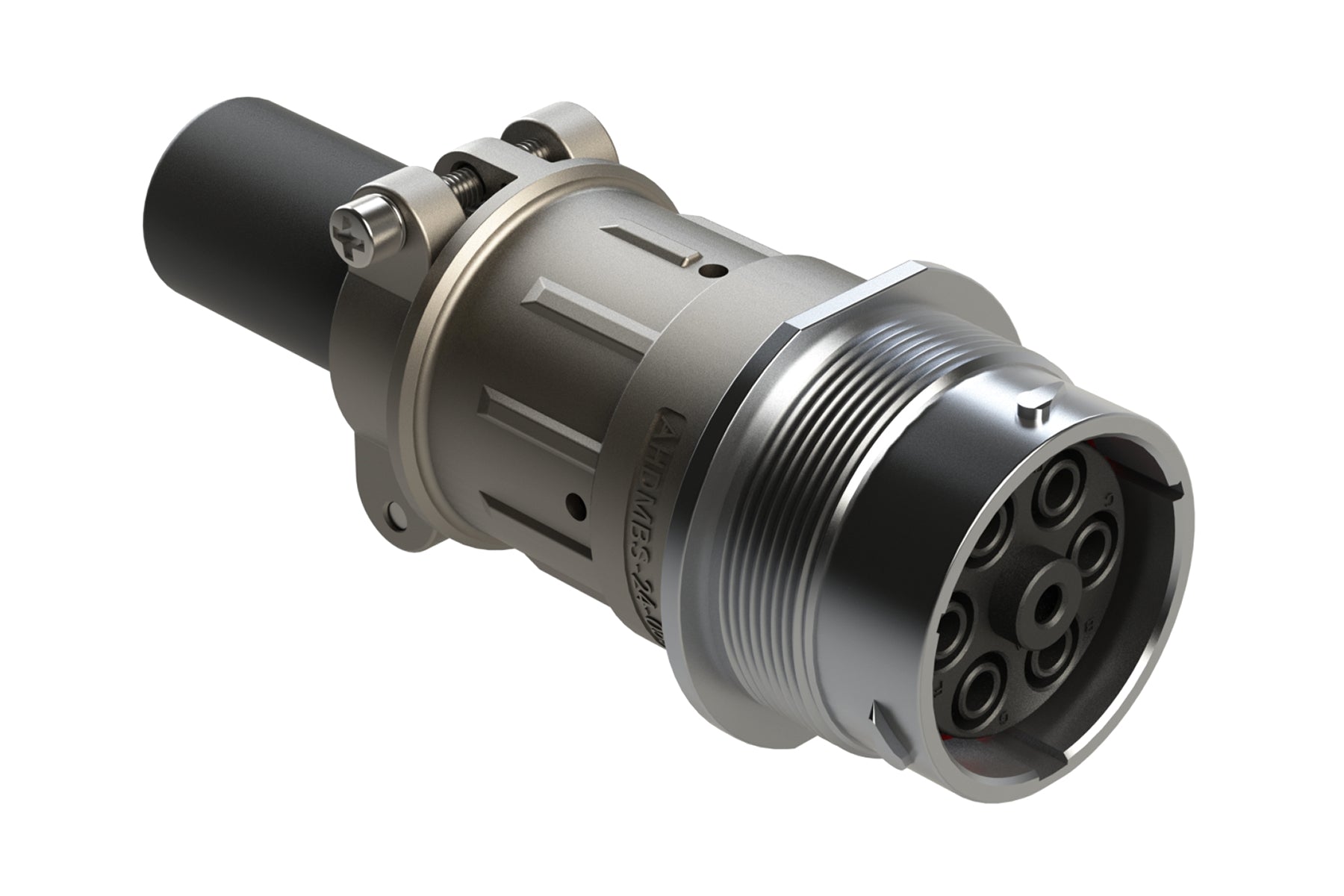

AHDM04-24-07SN-059 7 Position Receptacle Kit, Socket, Shell Size 24,Standard Seal, Wide Thread, Cable Clamp Backshell. HD34-24-07SN-059
AHDM04-24-07SN-059 7 Position Receptacle Kit, Socket, Shell Size 24,Standard Seal, Wide Thread, Cable Clamp Backshell. HD34-24-07SN-059
IMAGE MAY DIFFER
SKU:AHDM04-24-07SN-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 7Gender: Female (Reversed)
Contact Size: 8,12
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-07PN
Seal Diameter: 4.83mm (.190") - 6.10mm (.240"), 3.40mm (.134") - 4.32mm (.170")
Wire Range: 16-22 AWG (1.5-0.35mm²)
Shape: Circular
7 Position Receptacle Kit, Socket, Shell Size 24,Standard Seal, Wide Thread, Cable Clamp Backshell
