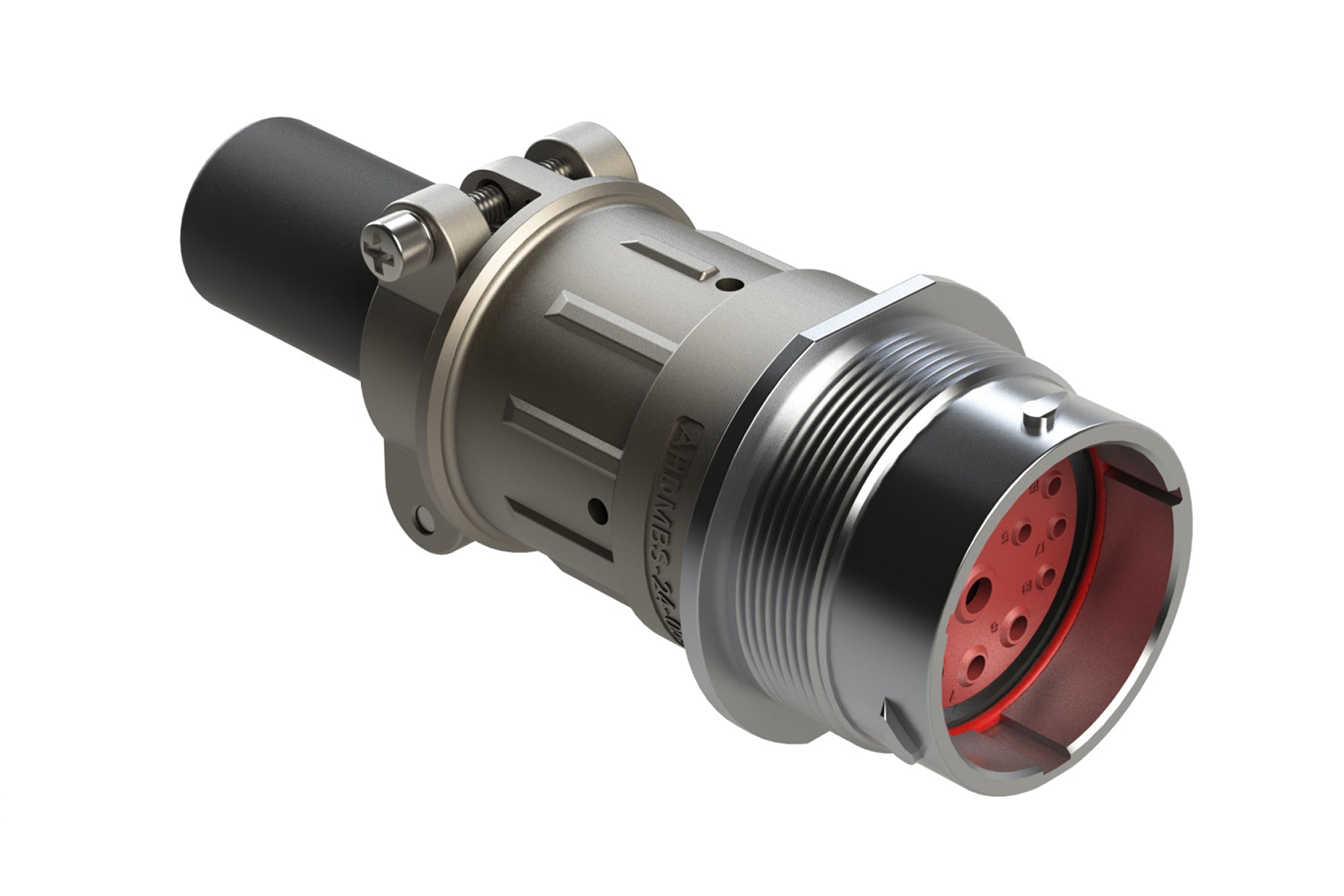

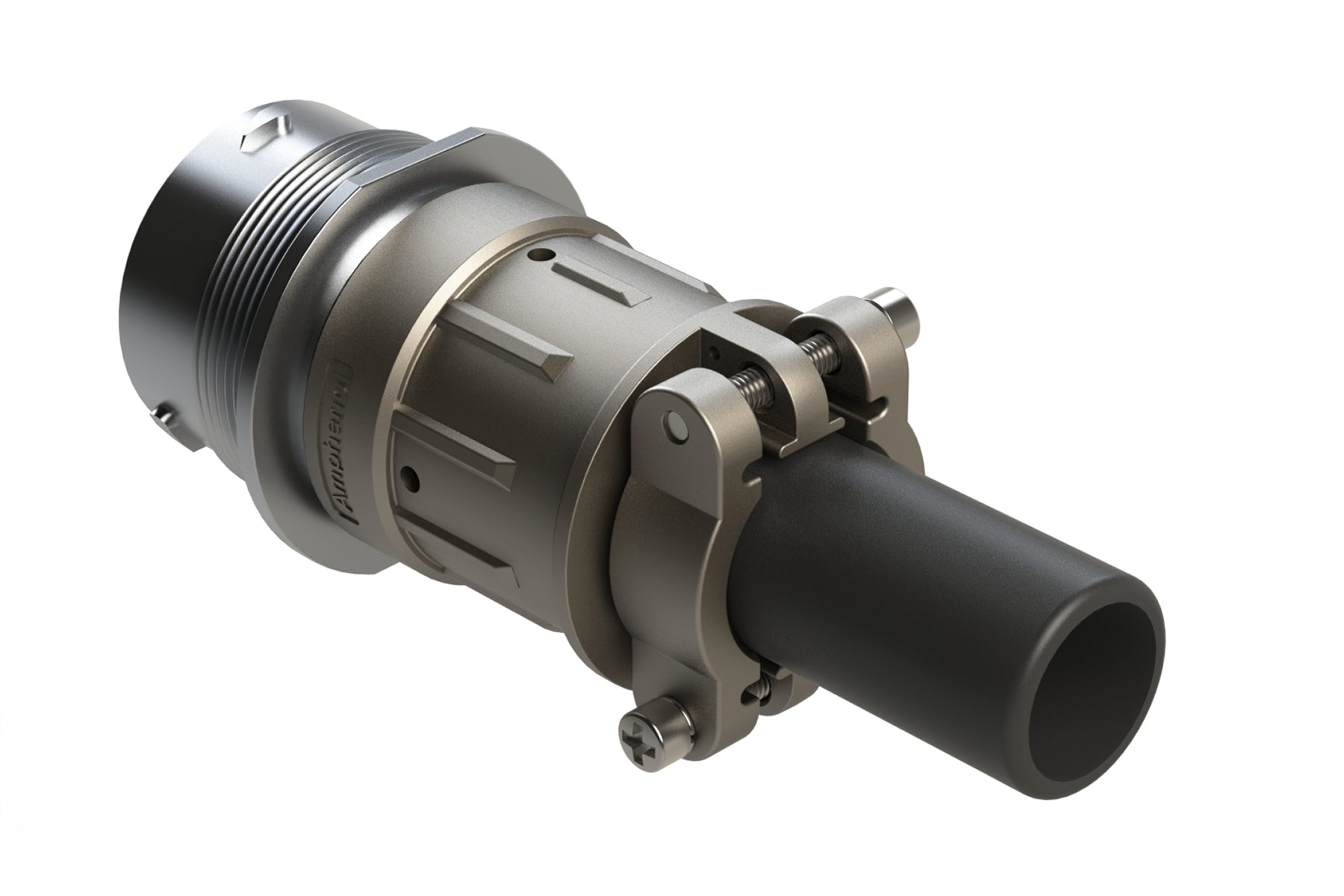

AHDM04-24-18PR-059 18 Position Receptacle Kit, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-24-18PE-059
AHDM04-24-18PR-059 18 Position Receptacle Kit, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-24-18PE-059
IMAGE MAY DIFFER
SKU:AHDM04-24-18PR-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 18Gender: Male (Standard)
Contact Size: 8,12,16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-18S*
Seal Diameter: 3.43mm (.135") - 5.59mm (.220"), 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 8-10 AWG, 10-14 AWG, 14-20 AWG
Shape: Circular
18 Position Receptacle Kit, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell
