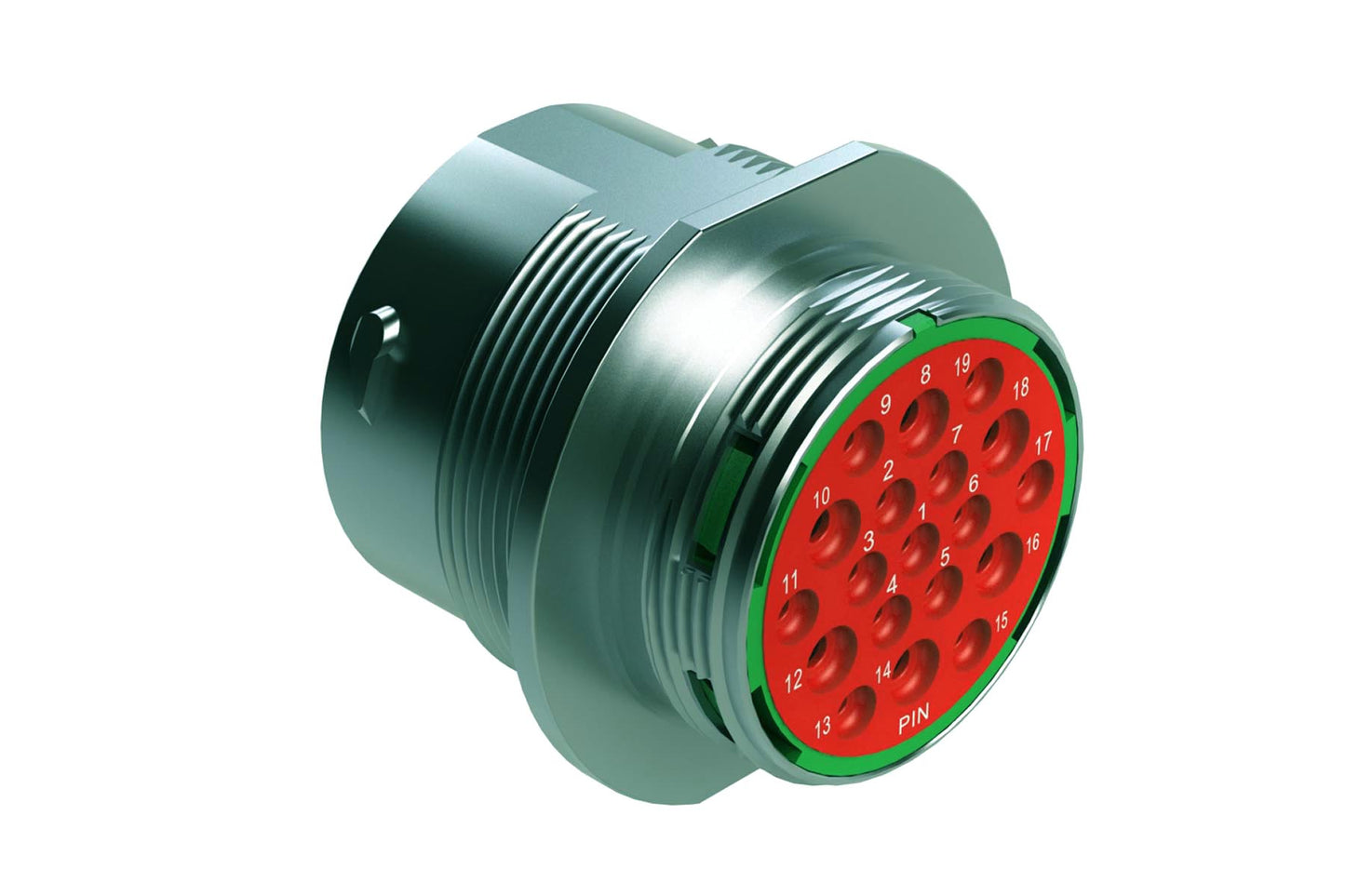

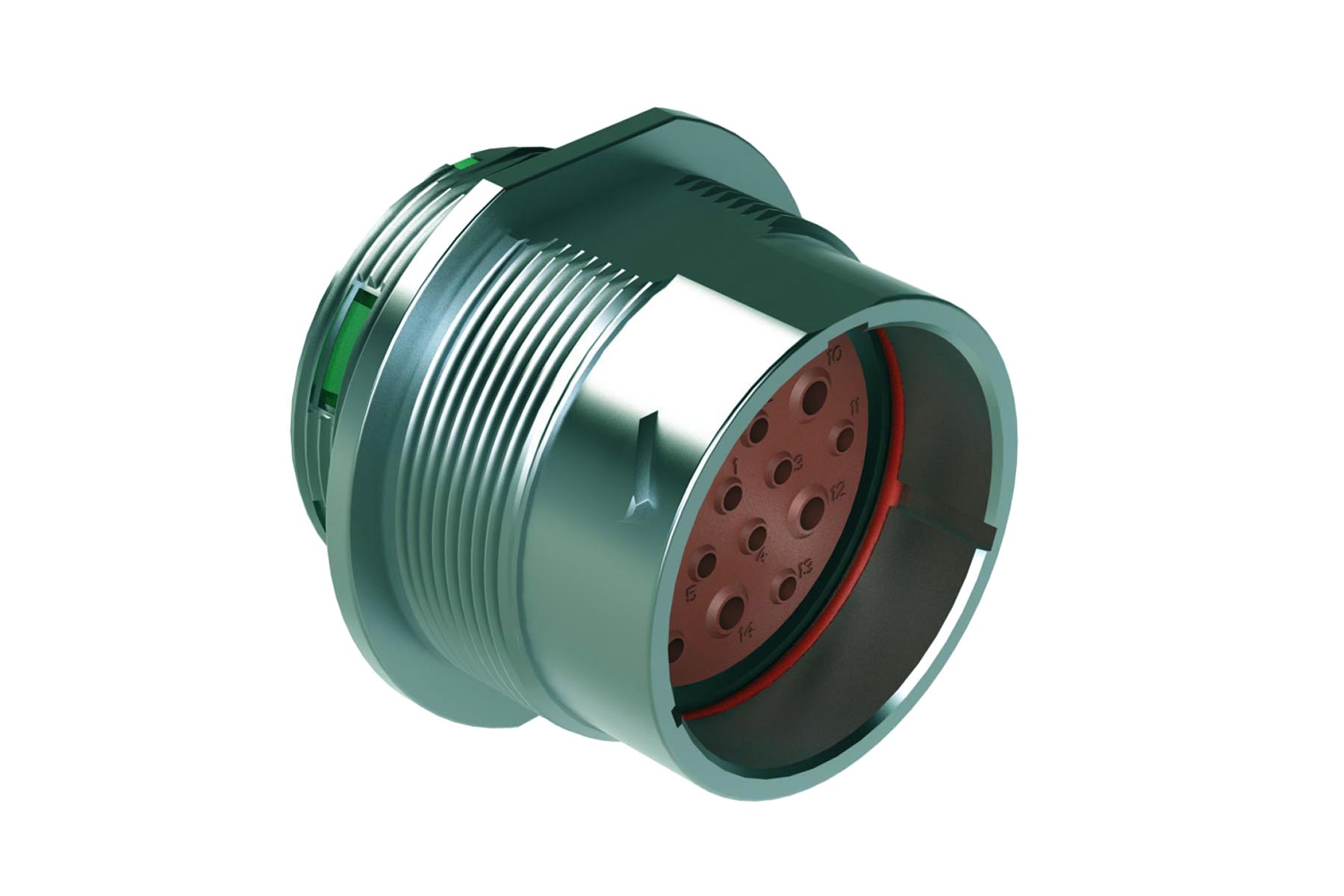

AHDM04-24-19PN 19 Position Receptacle, Shell Size 24, Pin, Standard Seal, Wide Thread. HD34-24-19PN
AHDM04-24-19PN 19 Position Receptacle, Shell Size 24, Pin, Standard Seal, Wide Thread. HD34-24-19PN
IMAGE MAY DIFFER
SKU:AHDM04-24-19PN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 19Gender: Male (Standard)
Contact Size: 12,16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-18S*
Seal Diameter: 3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
19 Position Receptacle, Shell Size 24, Pin, Standard Seal, Wide Thread
