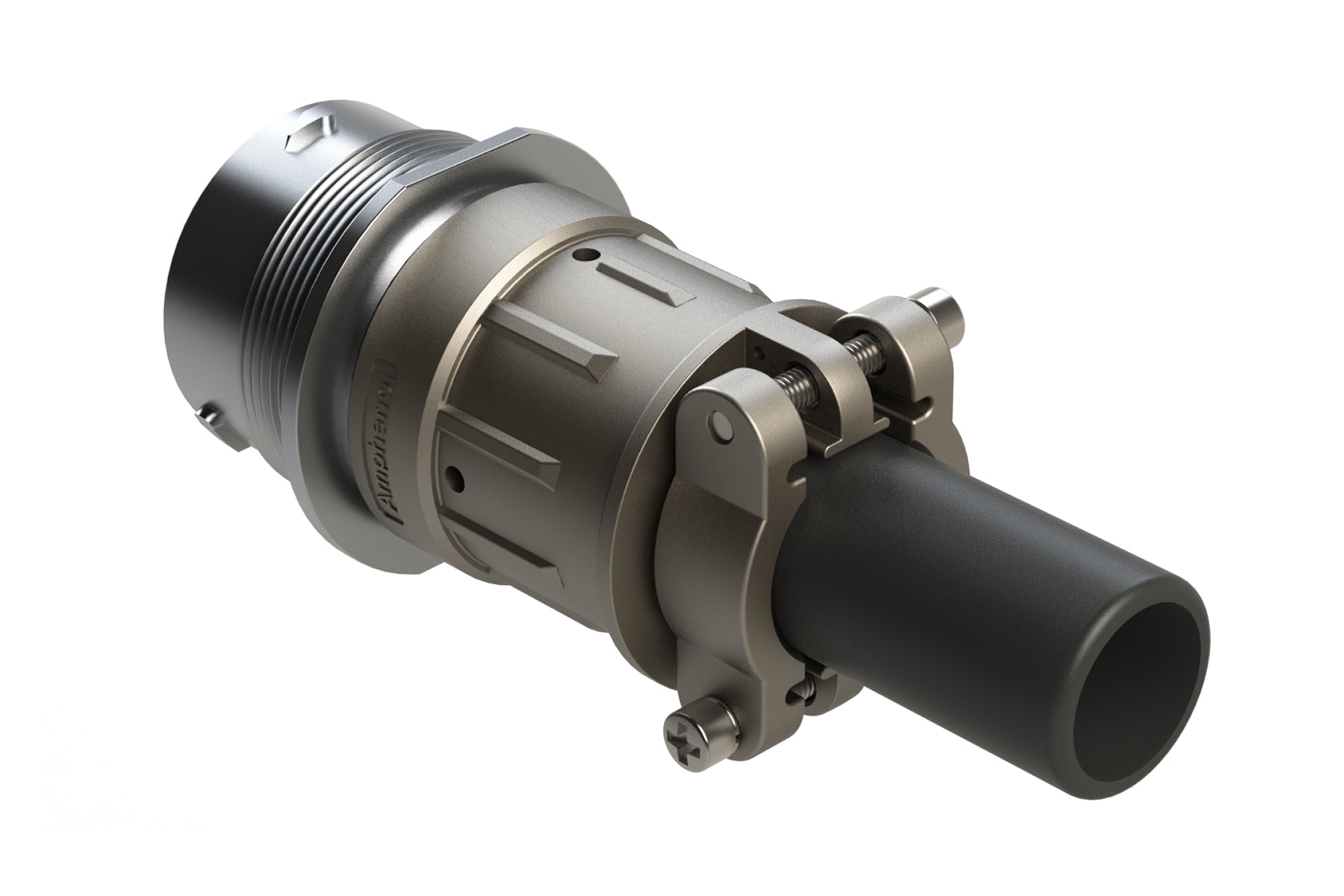

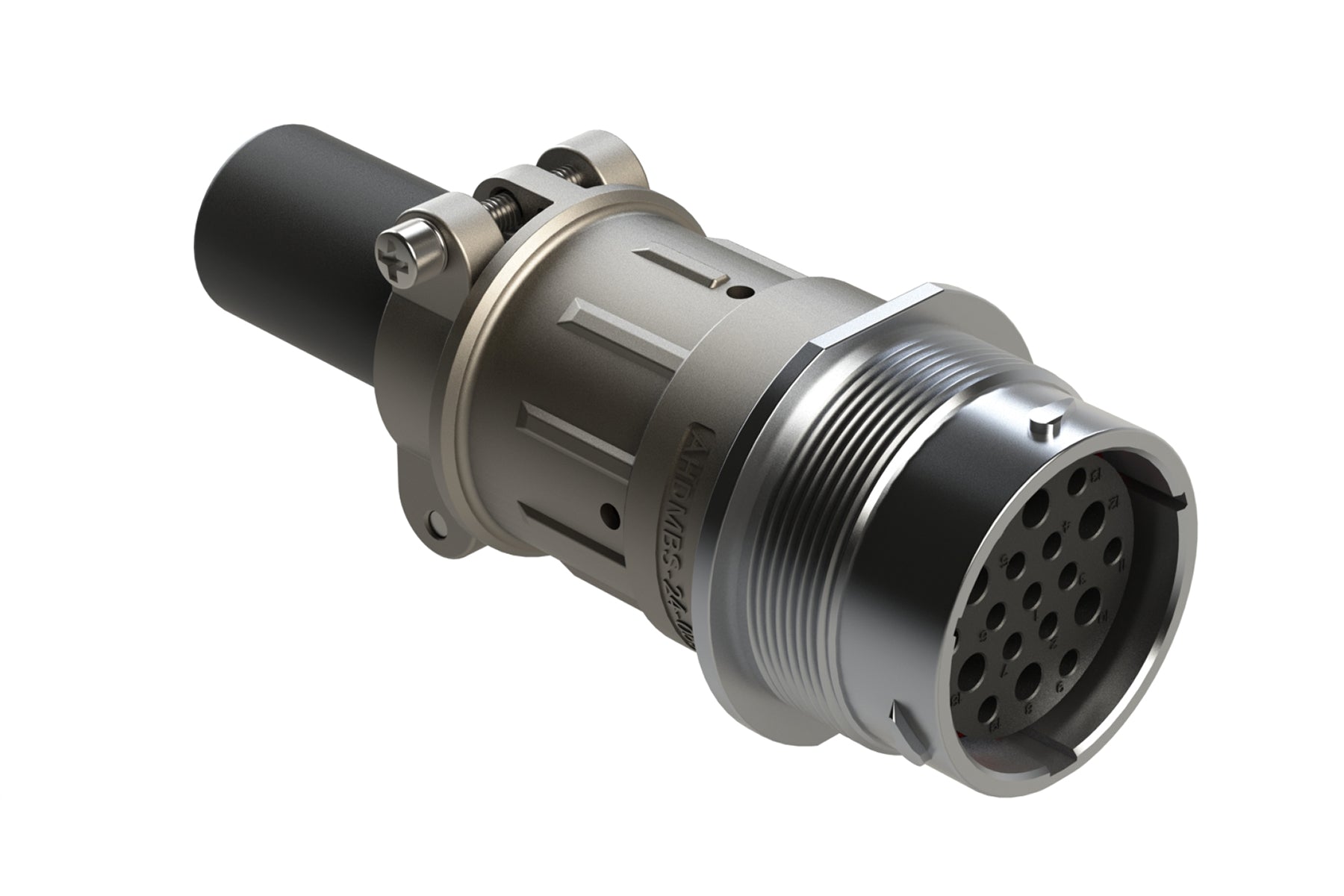

AHDM04-24-19SR-059 19 Position Receptacle Kit, Shell Size 24, 19 Position Socket, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-24-19SE-059
AHDM04-24-19SR-059 19 Position Receptacle Kit, Shell Size 24, 19 Position Socket, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell. HD34-24-19SE-059
IMAGE MAY DIFFER
SKU:AHDM04-24-19SR-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 19Gender: Female (Reversed)
Contact Size: 12,16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-19S*
Seal Diameter: 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
19 Position Receptacle Kit, Shell Size 24, 19 Position Socket, Reduced Diameter Seal, Wide Thread, Cable Clamp Backshell
