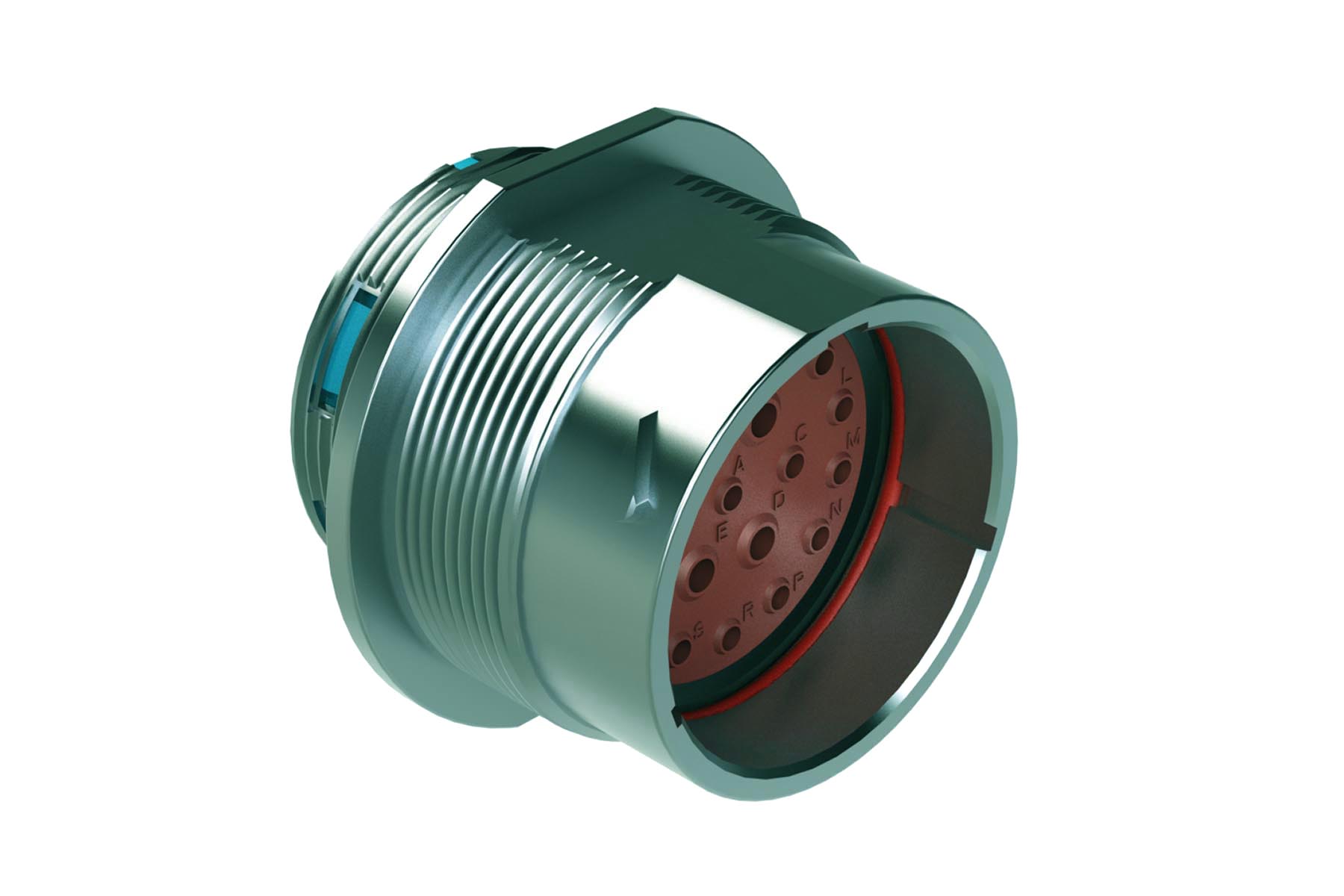

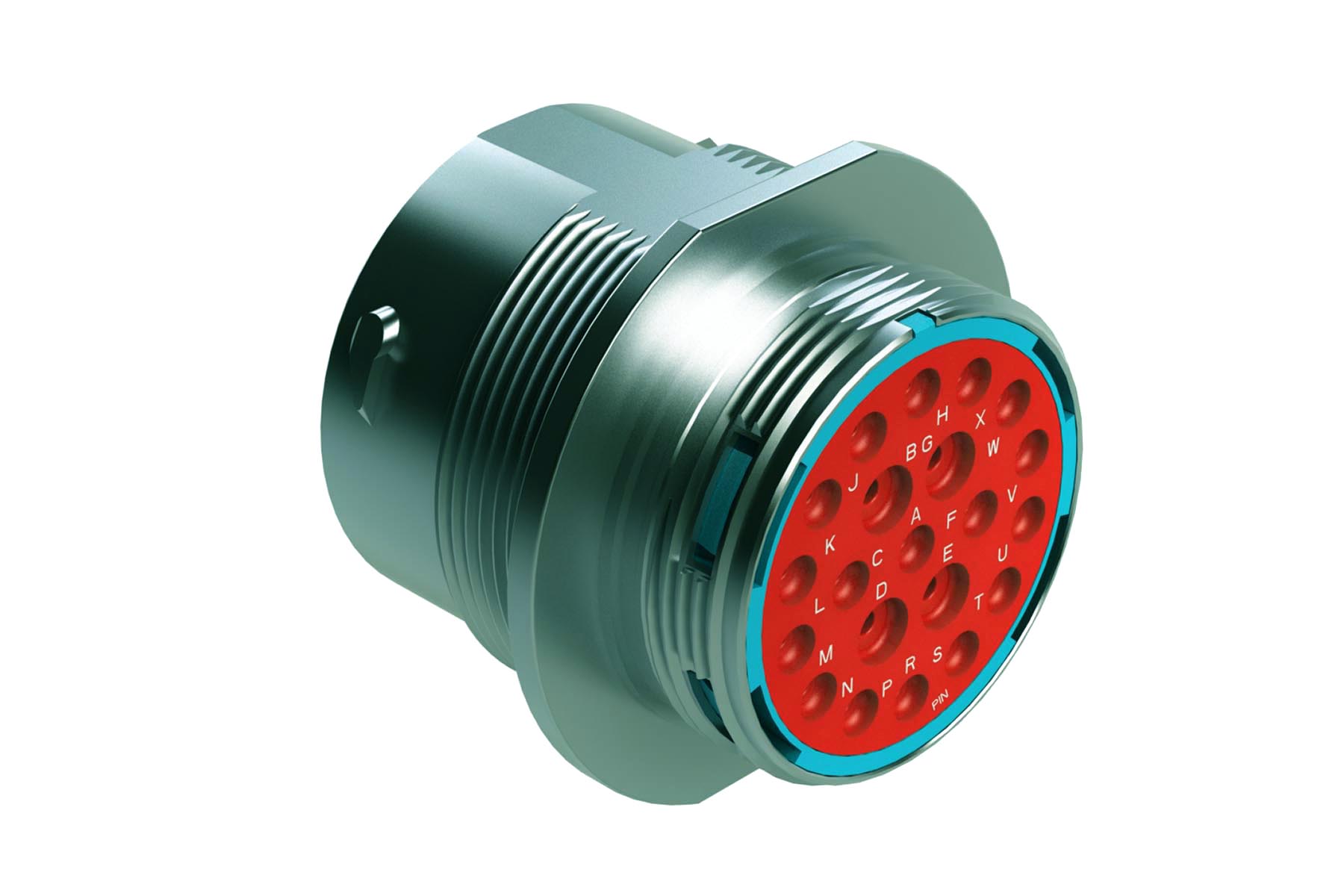

AHDM04-24-21PR 21 Position Receptacle, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread. HD34-24-21PE
AHDM04-24-21PR 21 Position Receptacle, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread. HD34-24-21PE
IMAGE MAY DIFFER
SKU:AHDM04-24-21PR
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 21Gender: Male (Standard)
Contact Size: 12,16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-21S*
Seal Diameter: 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5 mm²)
Shape: Circular
21 Position Receptacle, Shell Size 24, Pin, Reduced Diameter Seal, Wide Thread
