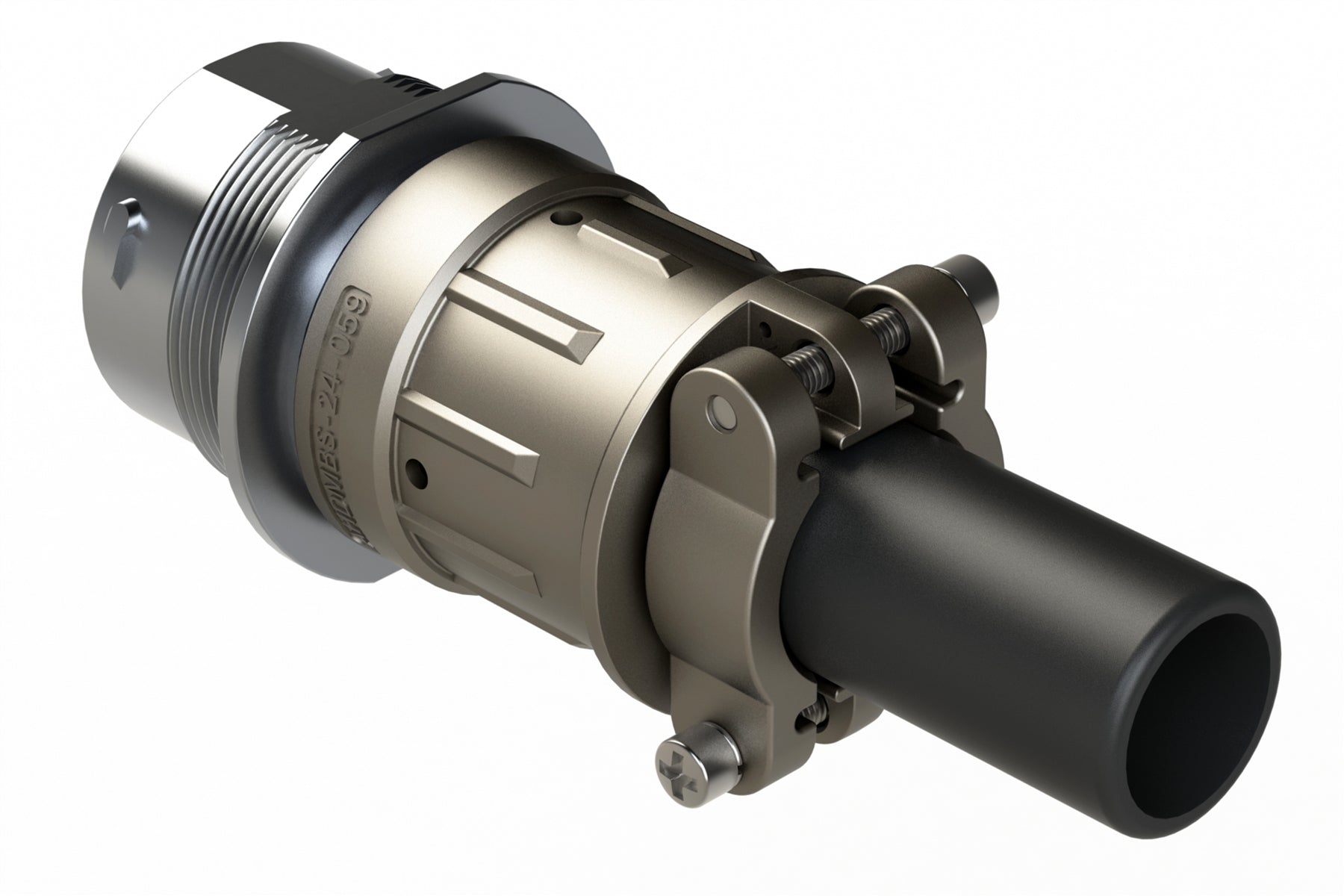

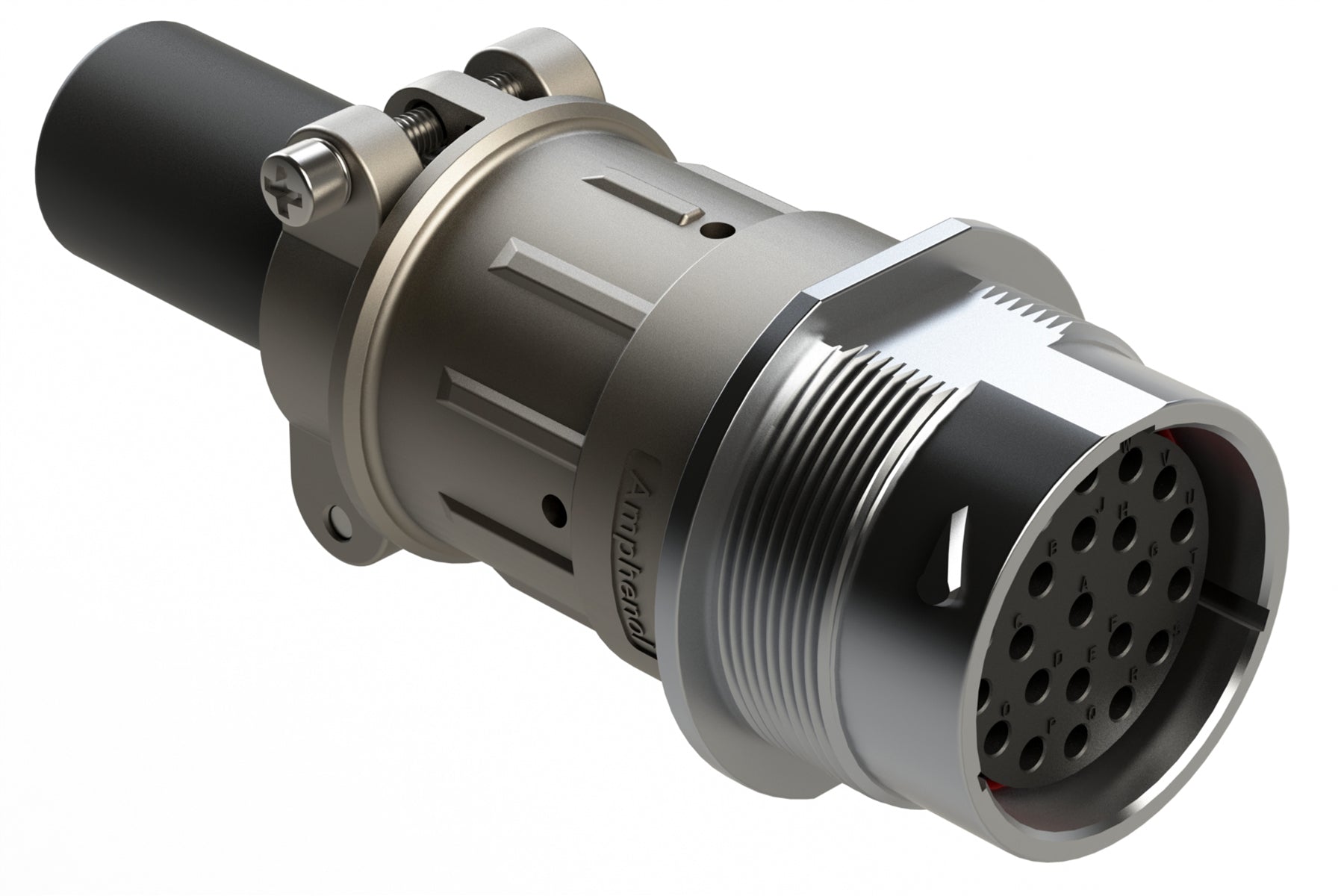

AHDM04-24-23ST-059 23 Position Receptacle, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter) Cable Clamp Backshell,. HD34-24-23ST-059
AHDM04-24-23ST-059 23 Position Receptacle, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter) Cable Clamp Backshell,. HD34-24-23ST-059
IMAGE MAY DIFFER
SKU:AHDM04-24-23ST-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 23Gender: Female (Reversed)
Contact Size: 16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-23P*
Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
Wire Range: 14-20 AWG
Shape: Circular
23 Position Receptacle, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter) Cable Clamp Backshell,
