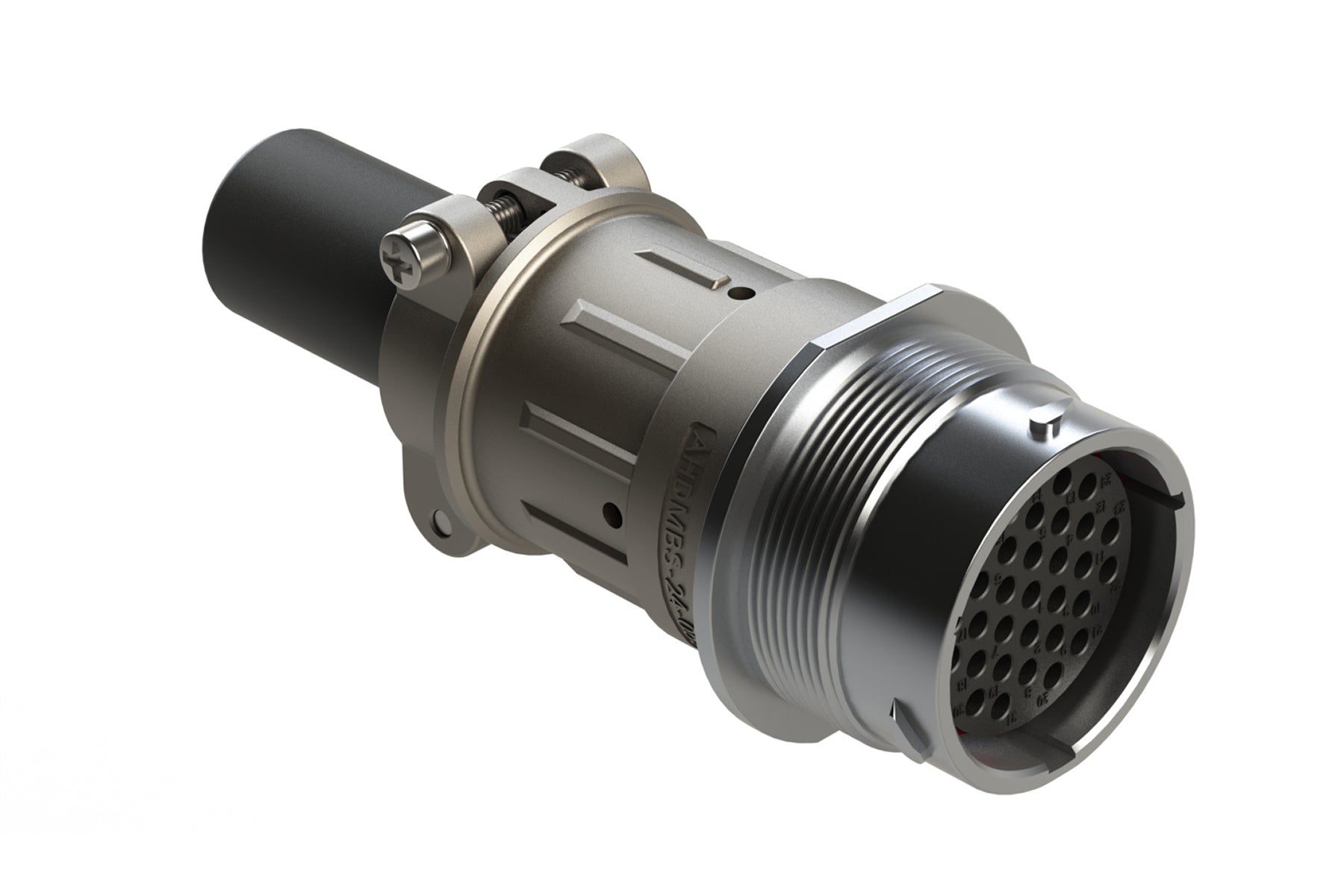

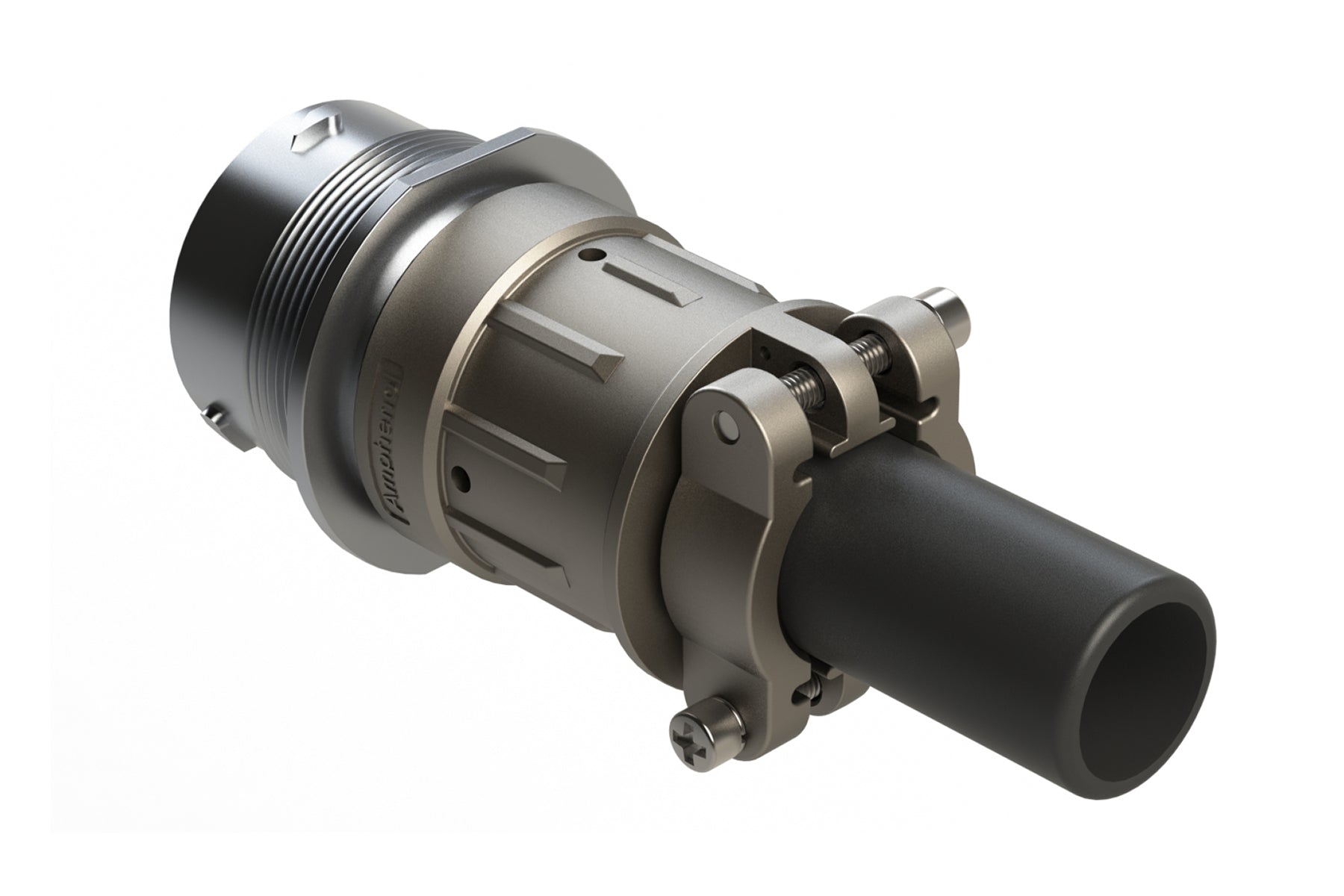

AHDM04-24-31ST-059 31 Position Receptacle Kit, Shell Size 24, Socket,thin seal, Wide Thread, Cable Clamp Backshell. HD34-24-31ST-059
AHDM04-24-31ST-059 31 Position Receptacle Kit, Shell Size 24, Socket,thin seal, Wide Thread, Cable Clamp Backshell. HD34-24-31ST-059
IMAGE MAY DIFFER
SKU:AHDM04-24-31ST-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 31Gender: Female (Reversed)
Contact Size: 16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-31P*
Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
Wire Range: 14-20 AWG
Shape: Circular
31 Position Receptacle Kit, Shell Size 24, Socket,thin seal, Wide Thread, Cable Clamp Backshell
