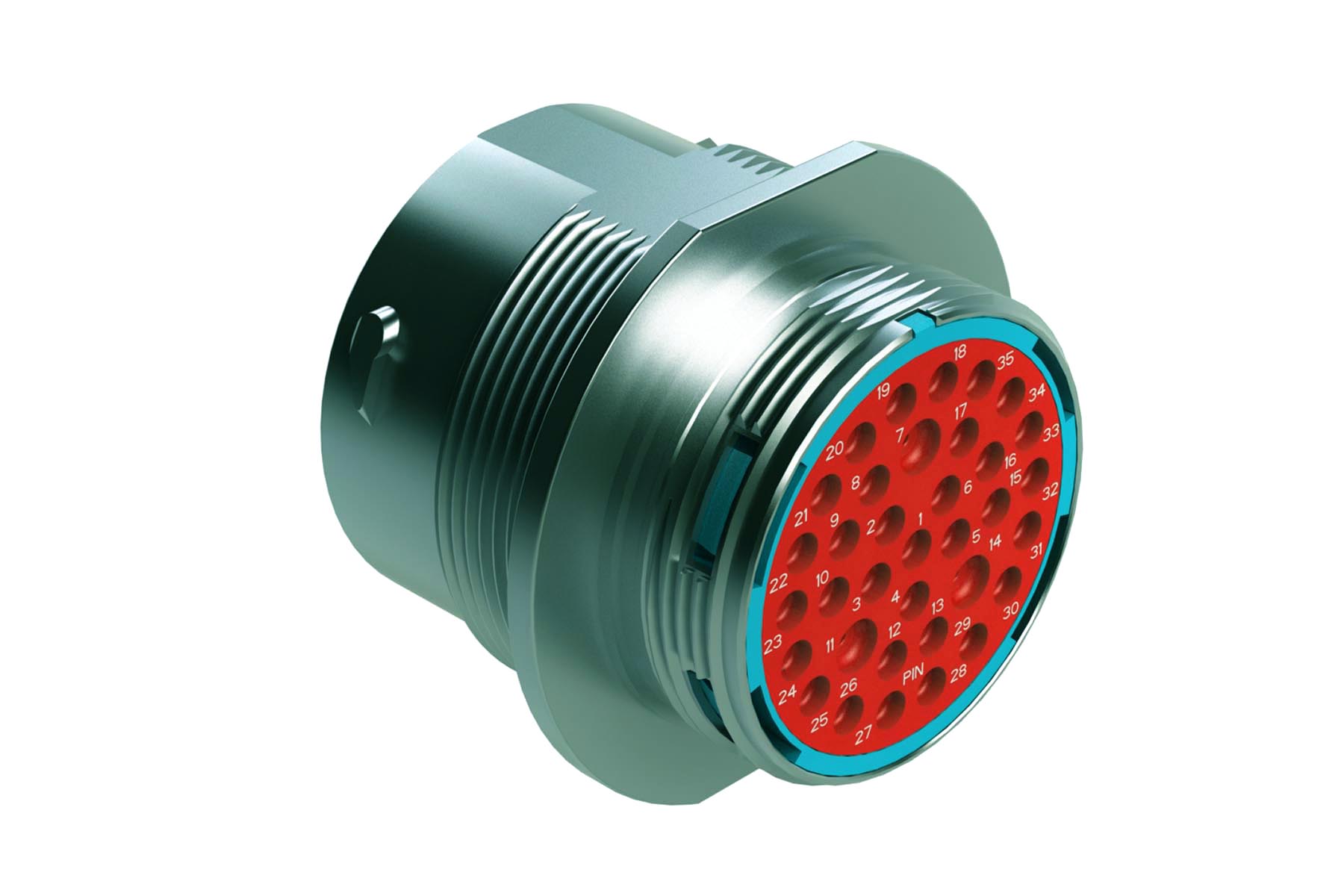

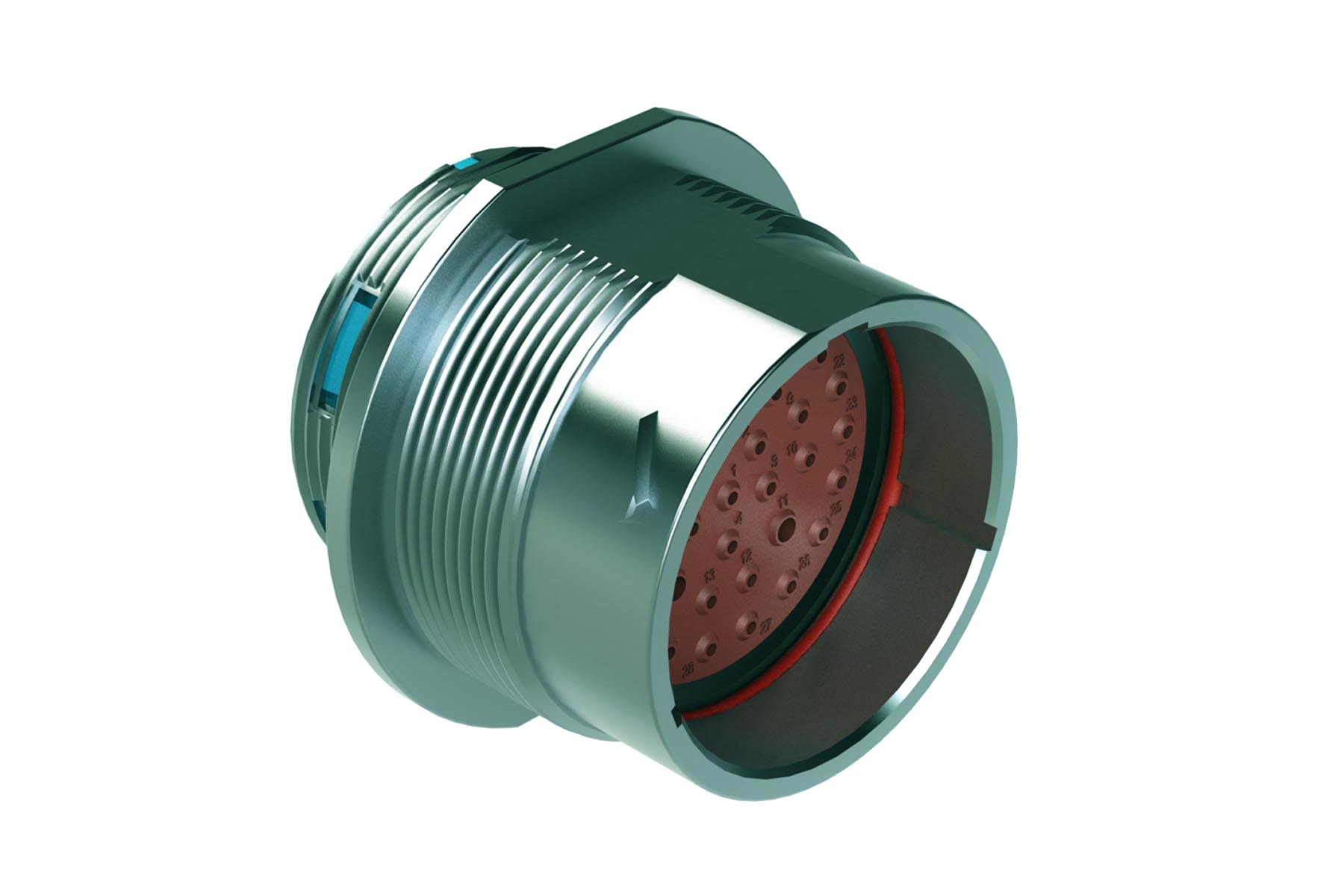

AHDM04-24-35PR 35 Position Receptacle, Shell Size 24, 35 Position Pin, Reduced Diameter Seal, Wide Thread. HD34-24-35PN
AHDM04-24-35PR 35 Position Receptacle, Shell Size 24, 35 Position Pin, Reduced Diameter Seal, Wide Thread. HD34-24-35PN
IMAGE MAY DIFFER
SKU:AHDM04-24-35PR
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 35Gender: Male (Standard)
Contact Size: 16,20
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-35SR*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120"), 1.02mm (.040") - 2.10mm (.083")
Wire Range: 14-20 AWG, 16-22 AWG
Shape: Circular
35 Position Receptacle, Shell Size 24, 35 Position Pin, Reduced Diameter Seal, Wide Thread
