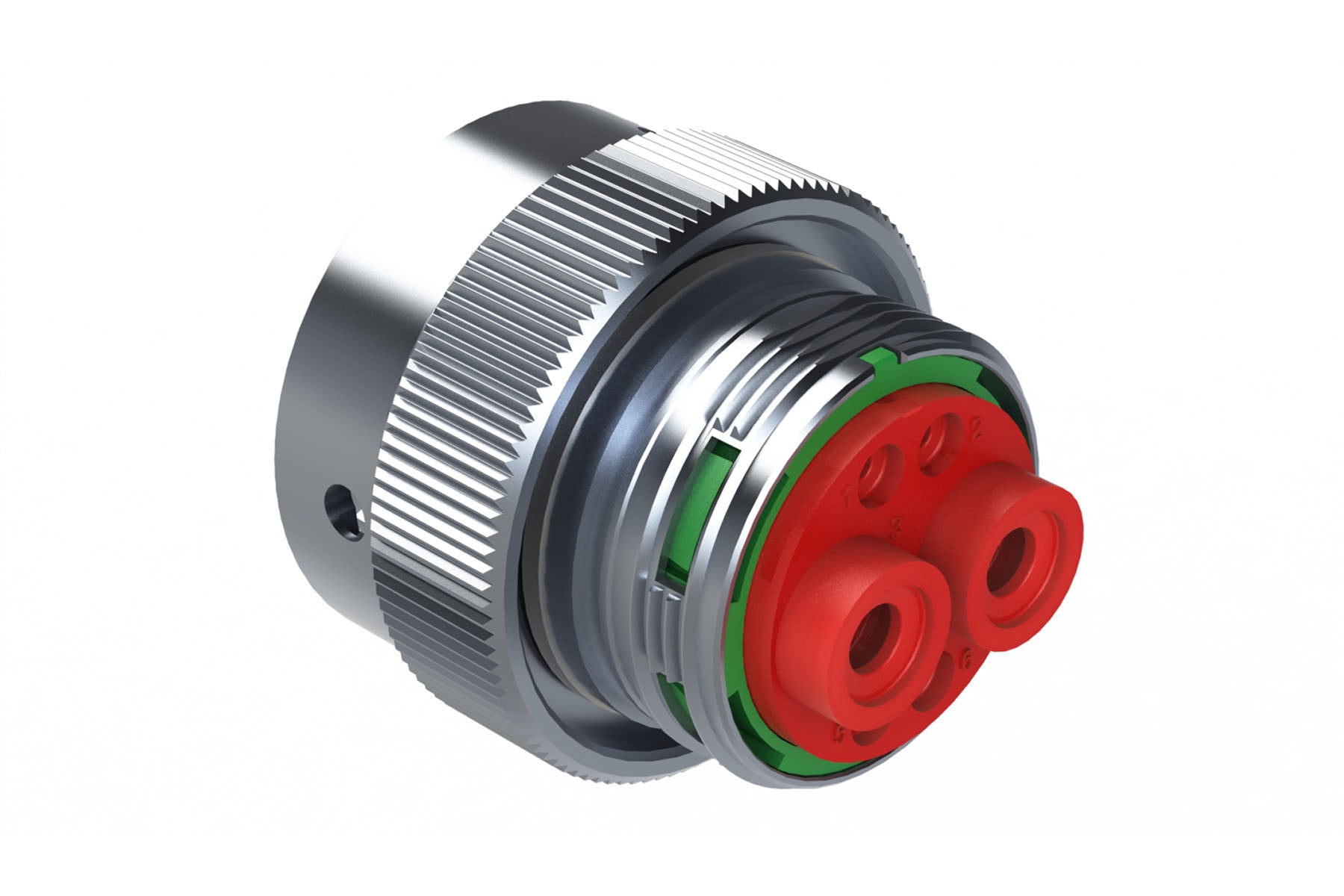

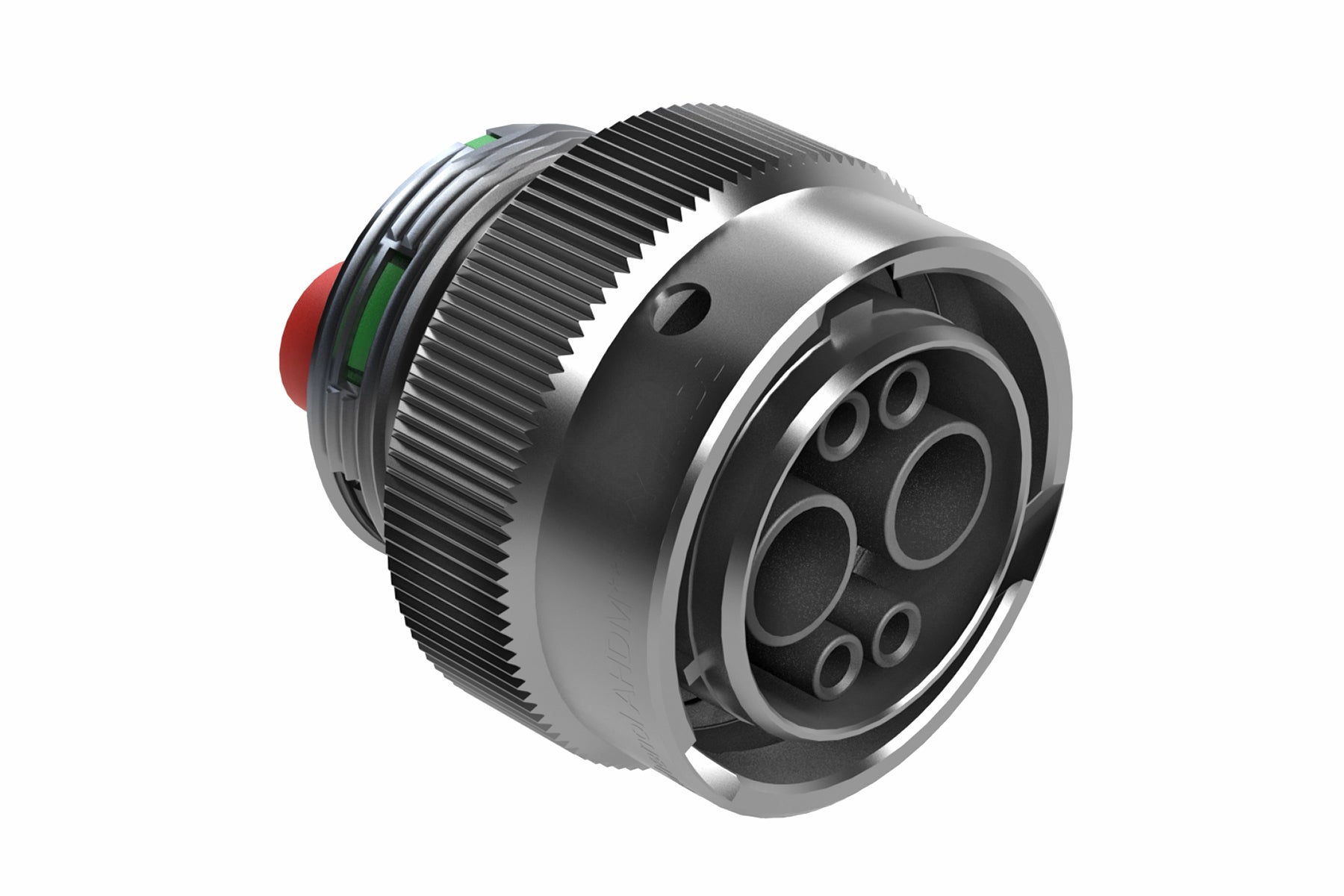

AHDM06-18-06SN 6 Position, Plug, Socket, Size 18, Normal Seal, Wide Thread. HD36-18-6SN
AHDM06-18-06SN 6 Position, Plug, Socket, Size 18, Normal Seal, Wide Thread. HD36-18-6SN
IMAGE MAY DIFFER
SKU:AHDM06-18-06SN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Female (Standard)
Contact Size: 4,16
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDM04-18-06S* (* = SEAL TYPE)
Seal Diameter: 2.54 mm (.100") -3.40 mm (.134"), 6.63mm (.261") - 7.42mm (.292")
Wire Range: 4-6, 14-20AWG
Shape: Circular
6 Position, Plug, Socket, Size 18, Normal Seal, Wide Thread
