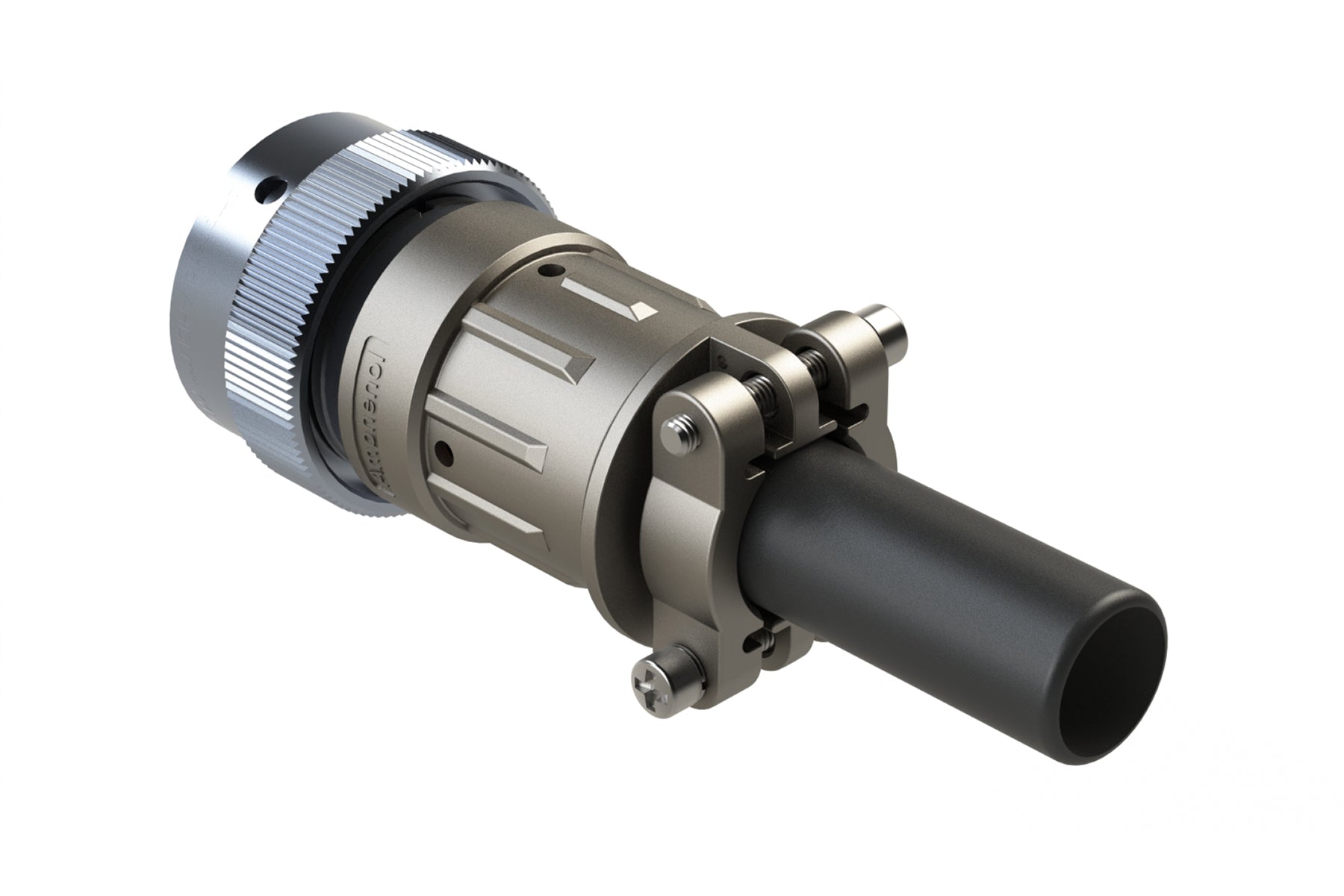

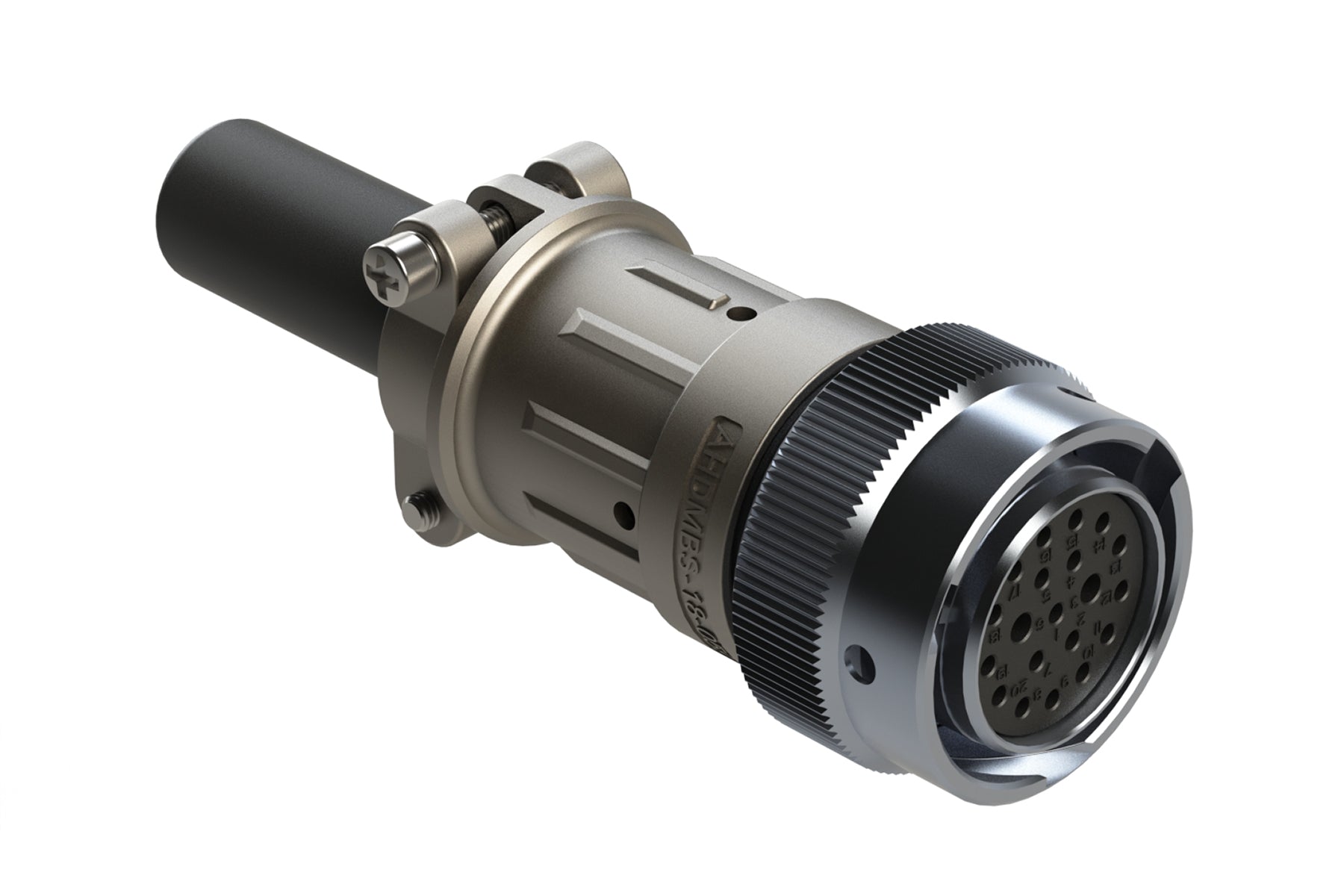

AHDM06-18-20SN-059 20 Position Plug Kit, Shell Size 18, 20 Position Socket, Standard Seal, Wide Thread, Cable Clamp Backshell. HD36-18-20SN-059
AHDM06-18-20SN-059 20 Position Plug Kit, Shell Size 18, 20 Position Socket, Standard Seal, Wide Thread, Cable Clamp Backshell. HD36-18-20SN-059
IMAGE MAY DIFFER
SKU:AHDM06-18-20SN-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 20Gender: Female (Standard)
Contact Size: 16,20
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-18-20P*
Seal Diameter: 1.02mm (.040") - 2.41mm (.095"), 2.54mm (.100") - 3.40mm (.134")
Wire Range: 16-22AWG, 14-20 AWG
Shape: Circular
20 Position Plug Kit, Shell Size 18, 20 Position Socket, Standard Seal, Wide Thread, Cable Clamp Backshell
