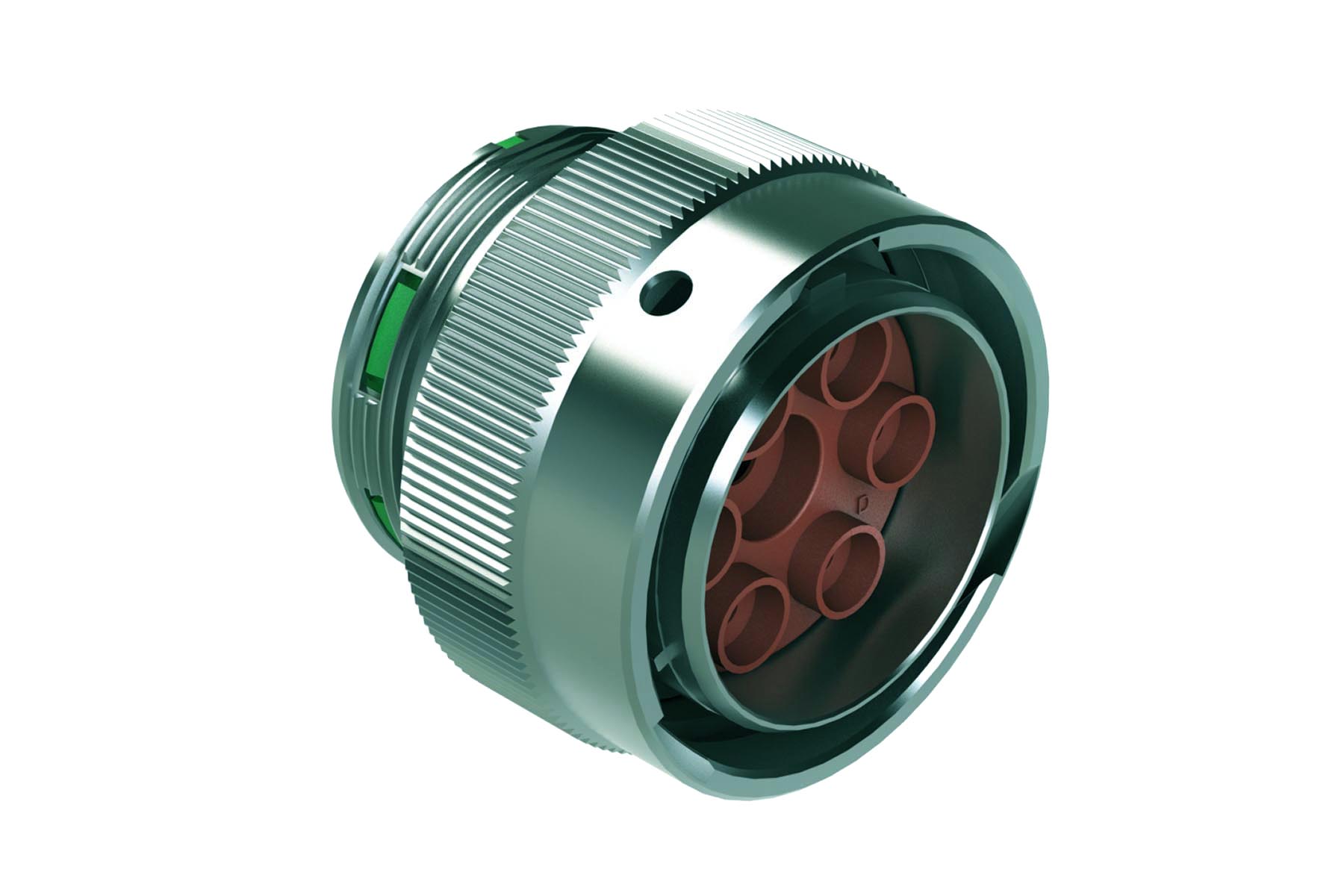

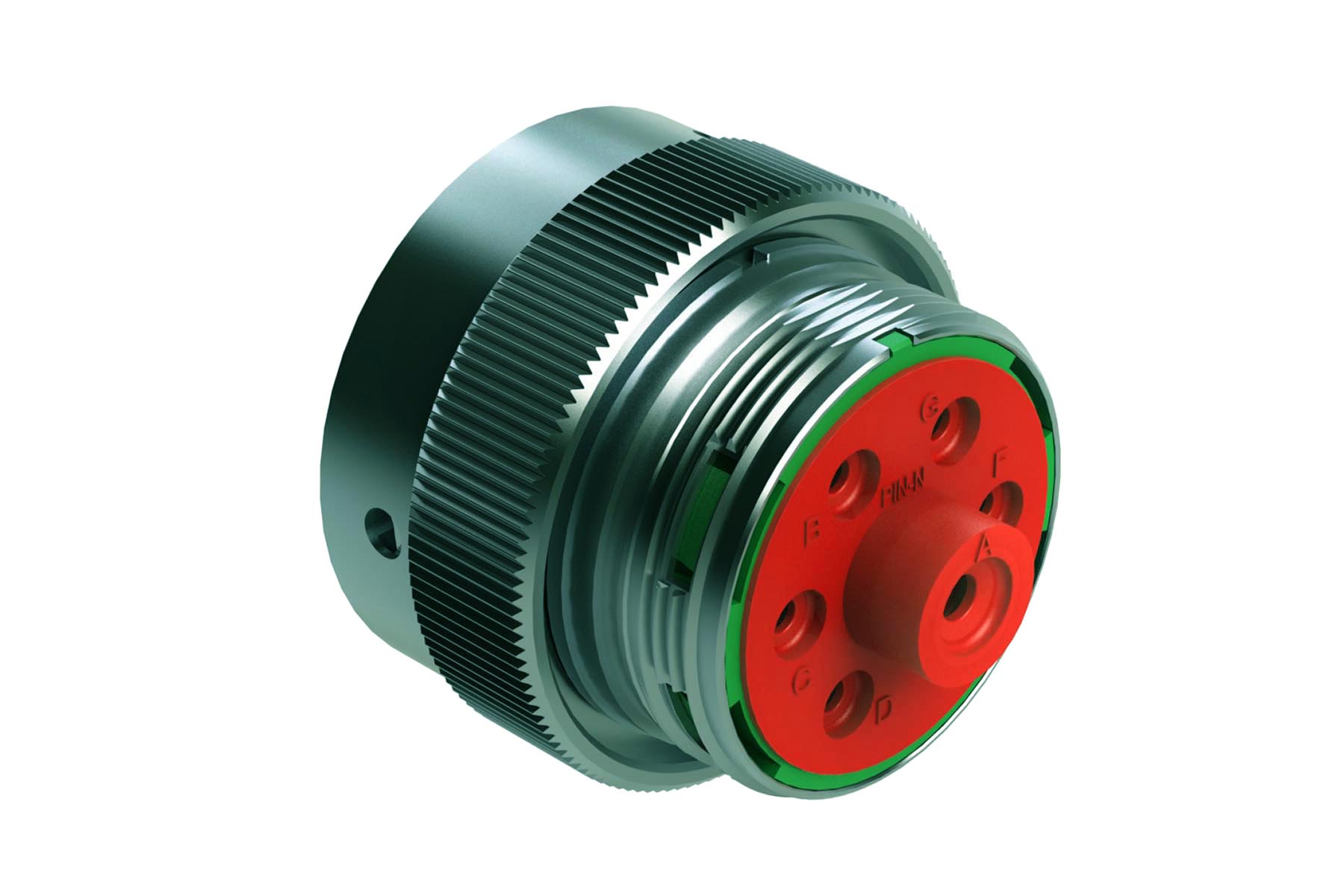

AHDM06-24-07PN 7 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread
AHDM06-24-07PN 7 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread
IMAGE MAY DIFFER
SKU:AHDM06-24-07PN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 7Gender: Male (Reversed)
Contact Size: 8,12
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 MEGOHM MIN@ 25° C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-07SN
Seal Diameter: 4.83mm (.190") - 6.10mm (.240"), 3.40mm (.134") - 4.32mm (.170")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
7 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread
