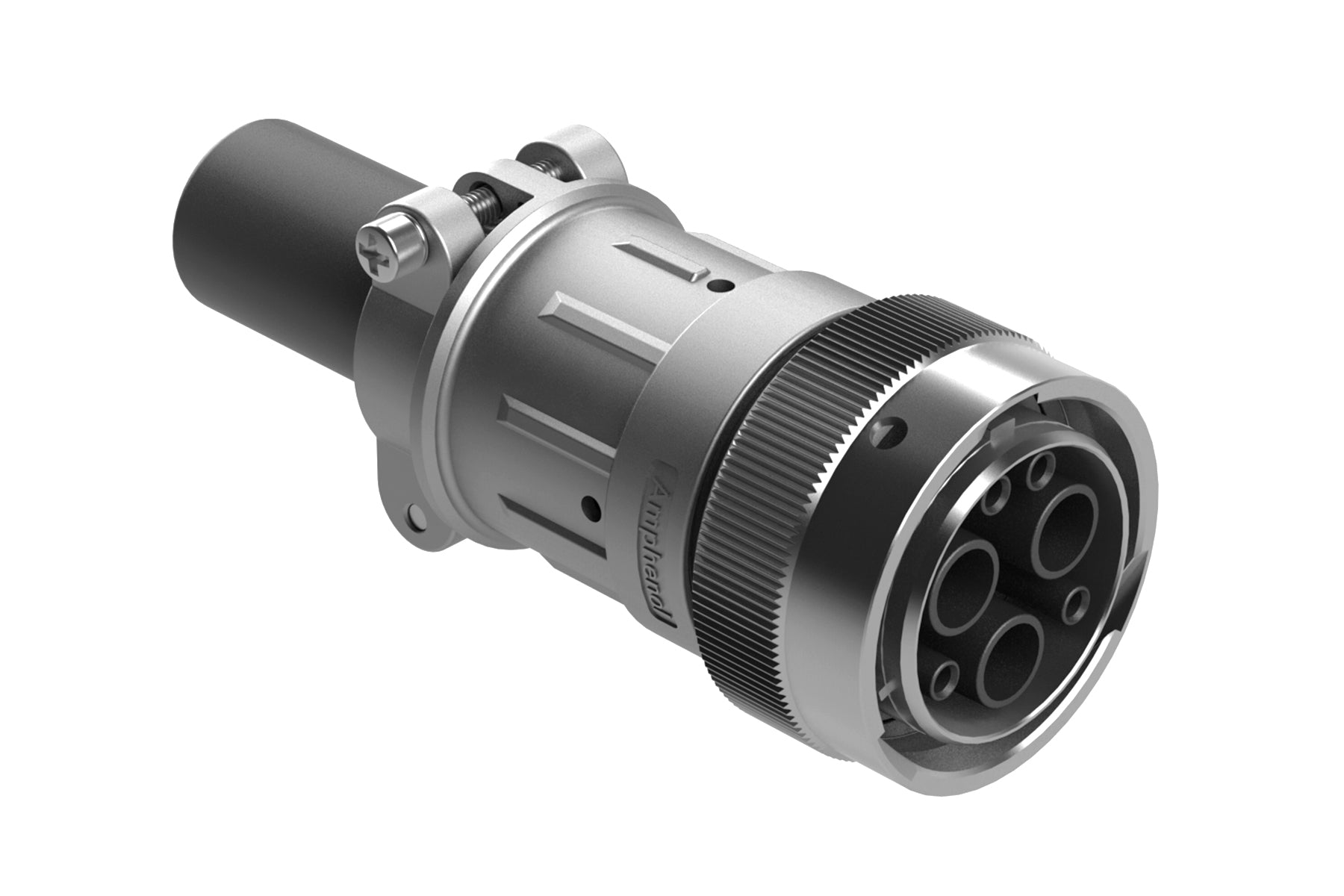

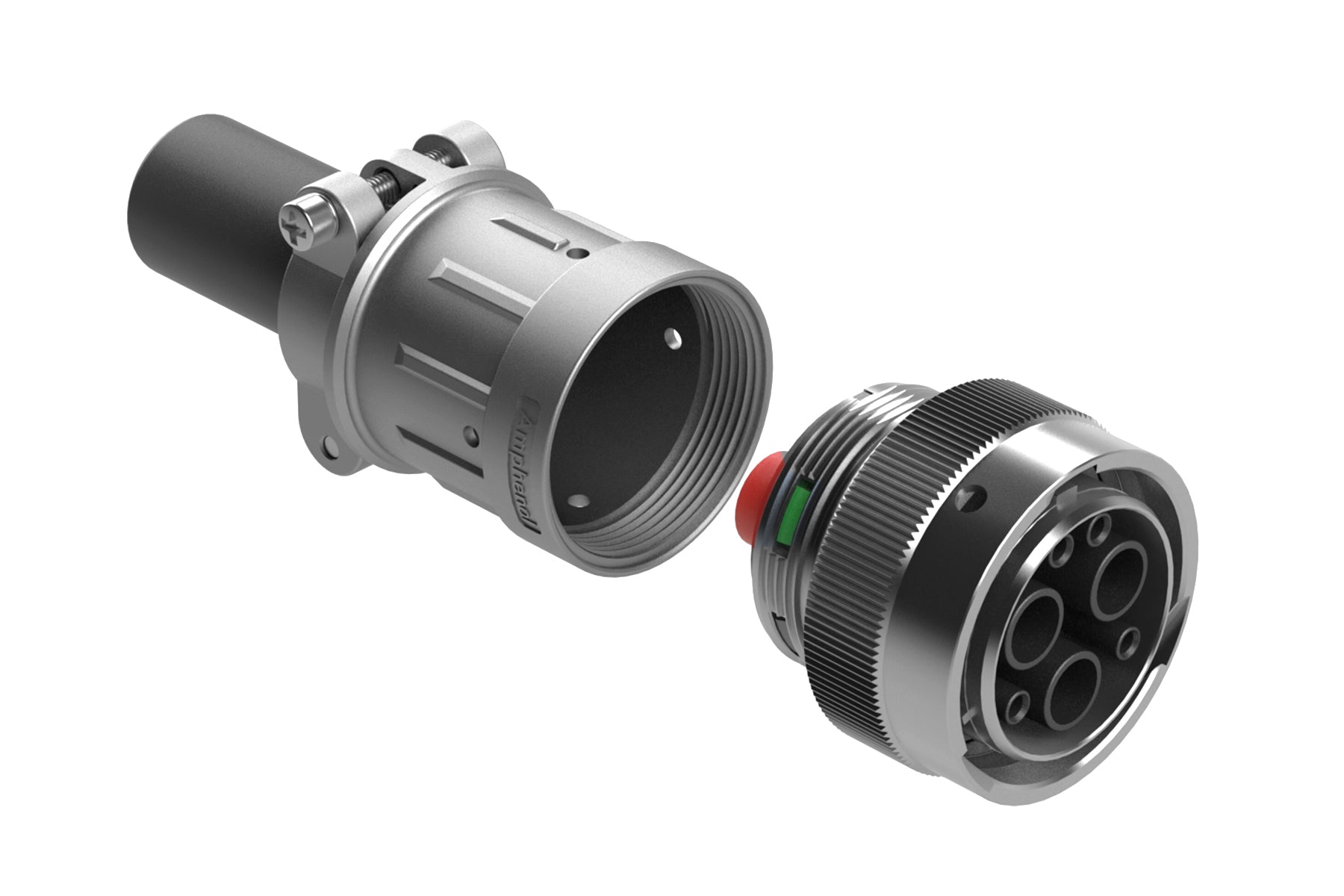

AHDM06-24-07SN-CL22-059 7 Position Plug Kit, Shell Size 24, Socket, Standard Seal, Wide Thread Adapter, Cable Clamp Backshell
AHDM06-24-07SN-CL22-059 7 Position Plug Kit, Shell Size 24, Socket, Standard Seal, Wide Thread Adapter, Cable Clamp Backshell
IMAGE MAY DIFFER
SKU:AHDM06-24-07SN-CL22-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 7Gender: Female (Standard)
Contact Size: 16,4
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-07PN-CL22*
Seal Diameter: 2.54 mm (.100") -3.40 mm (.134")
Wire Range: 4-6, 14-20 AWG
Shape: Circular
7 Position Plug Kit, Shell Size 24, Socket, Standard Seal, Wide Thread Adapter, Cable Clamp Backshell
