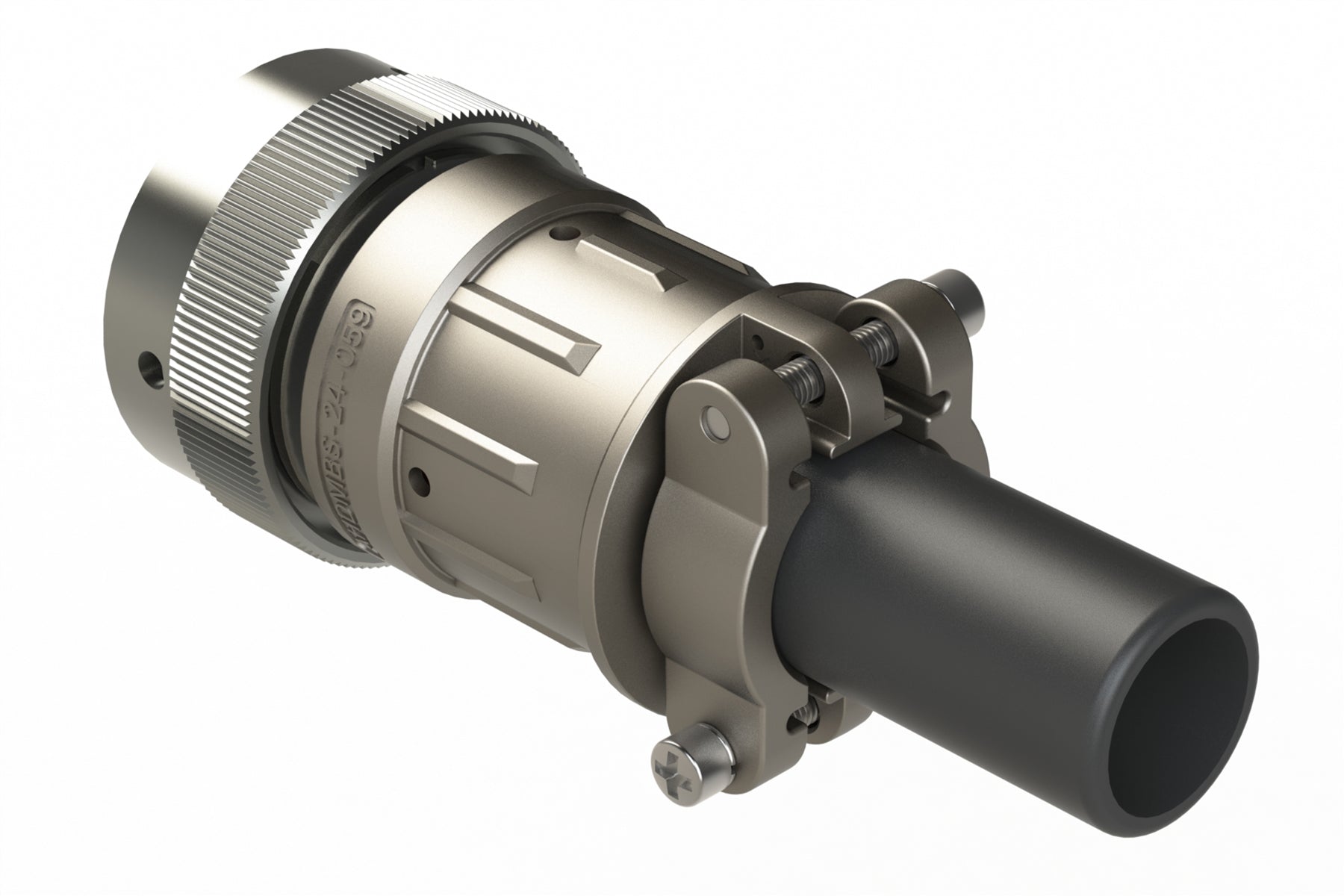

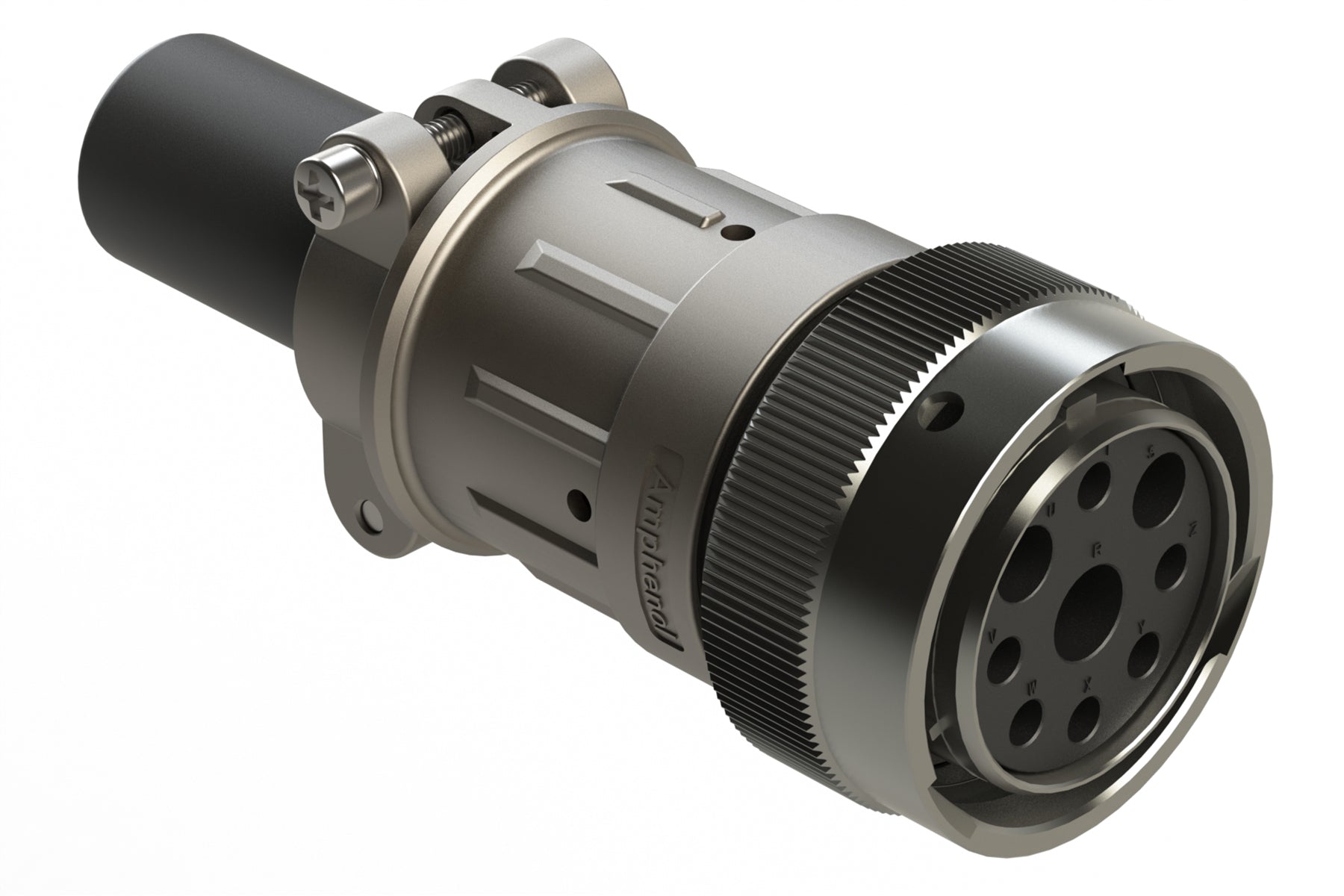

AHDM06-24-09SN-059 9 Position Plug Kit, Shell Sze 24, Socket, Normal Diameter Seal (Green Adapter), Wide Thread, Cable Clamp Backshell. HD36-24-9SN-059
AHDM06-24-09SN-059 9 Position Plug Kit, Shell Sze 24, Socket, Normal Diameter Seal (Green Adapter), Wide Thread, Cable Clamp Backshell. HD36-24-9SN-059
IMAGE MAY DIFFER
SKU:AHDM06-24-09SN-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 9Gender: Female
Contact Size: 4,8,12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-09P*
Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (10.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
Shape: Circular
9 Position Plug Kit, Shell Sze 24, Socket, Normal Diameter Seal (Green Adapter), Wide Thread, Cable Clamp Backshell
