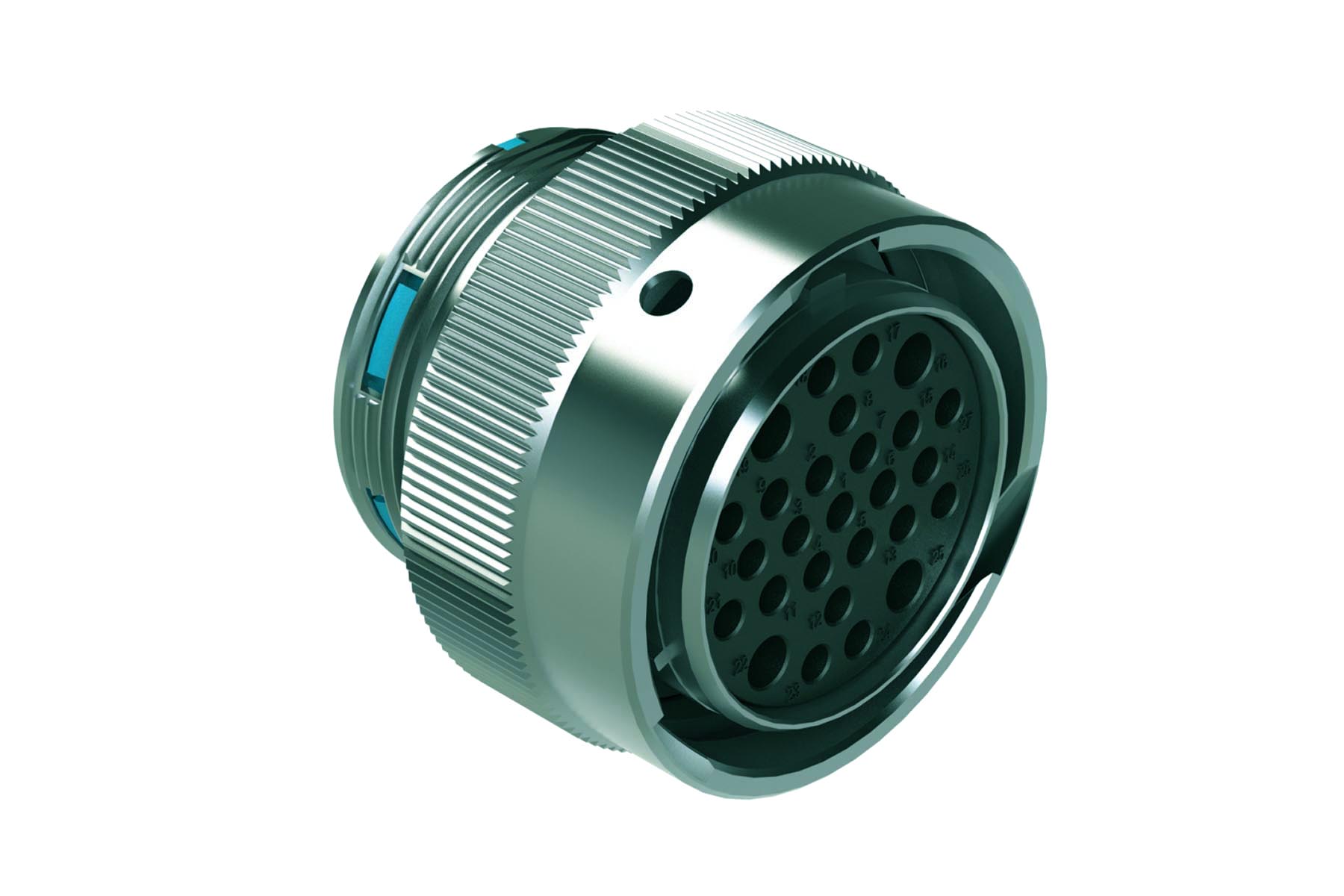

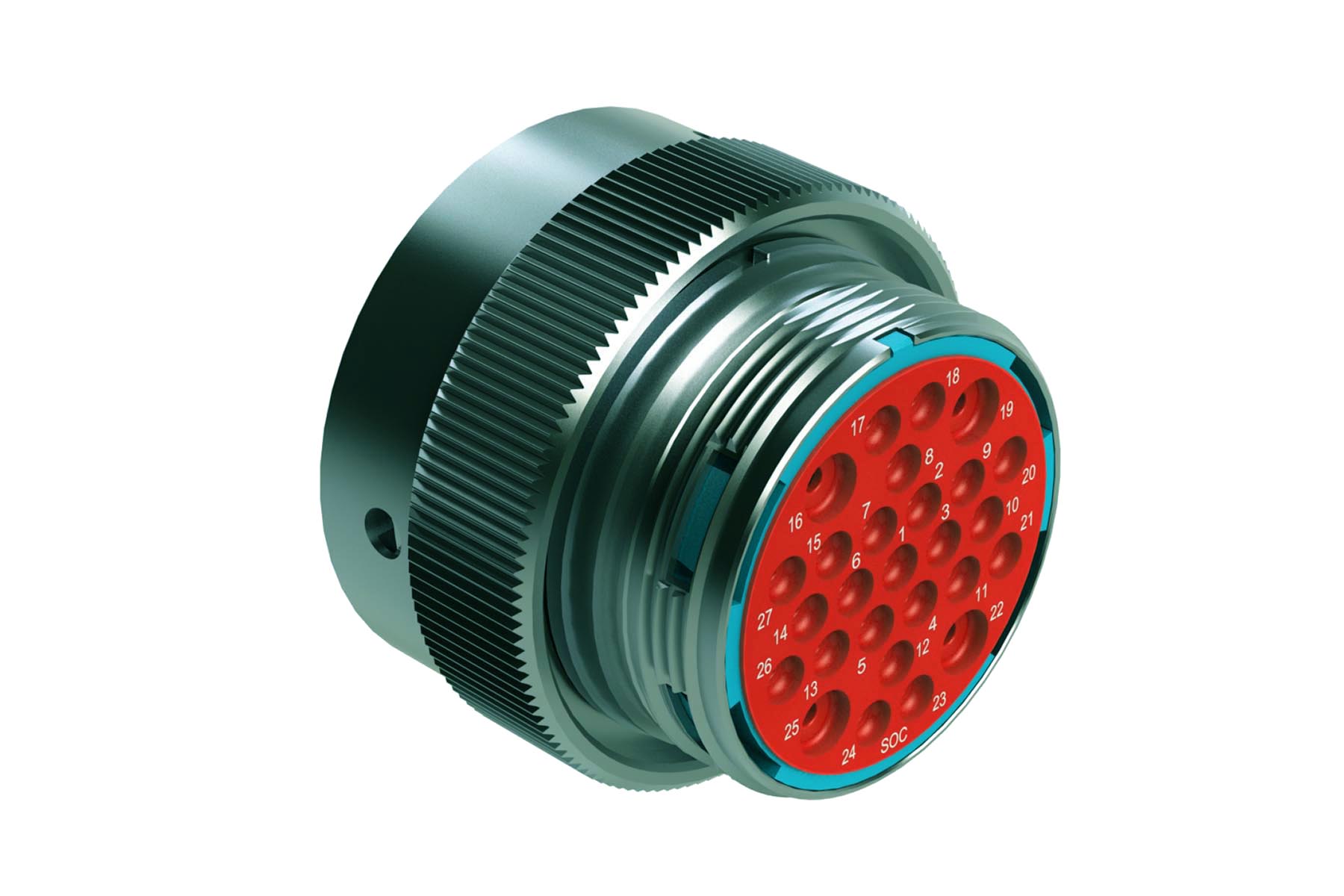

AHDM06-24-27SR 27 Position Plug, Shell Size 24, Socket, Reduced Diameter Seal, Wide Thread
AHDM06-24-27SR 27 Position Plug, Shell Size 24, Socket, Reduced Diameter Seal, Wide Thread
IMAGE MAY DIFFER
SKU:AHDM06-24-27SR
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 27Gender: Female (Standard)
Contact Size: 16,12
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-27PR
Seal Diameter: 1.35mm (.053") - 2.62mm (.103"), 2.46mm (.097") - 4.01mm (.158)
Wire Range: 14-20 AWG, 10-14 AWG
Shape: Circular
27 Position Plug, Shell Size 24, Socket, Reduced Diameter Seal, Wide Thread
