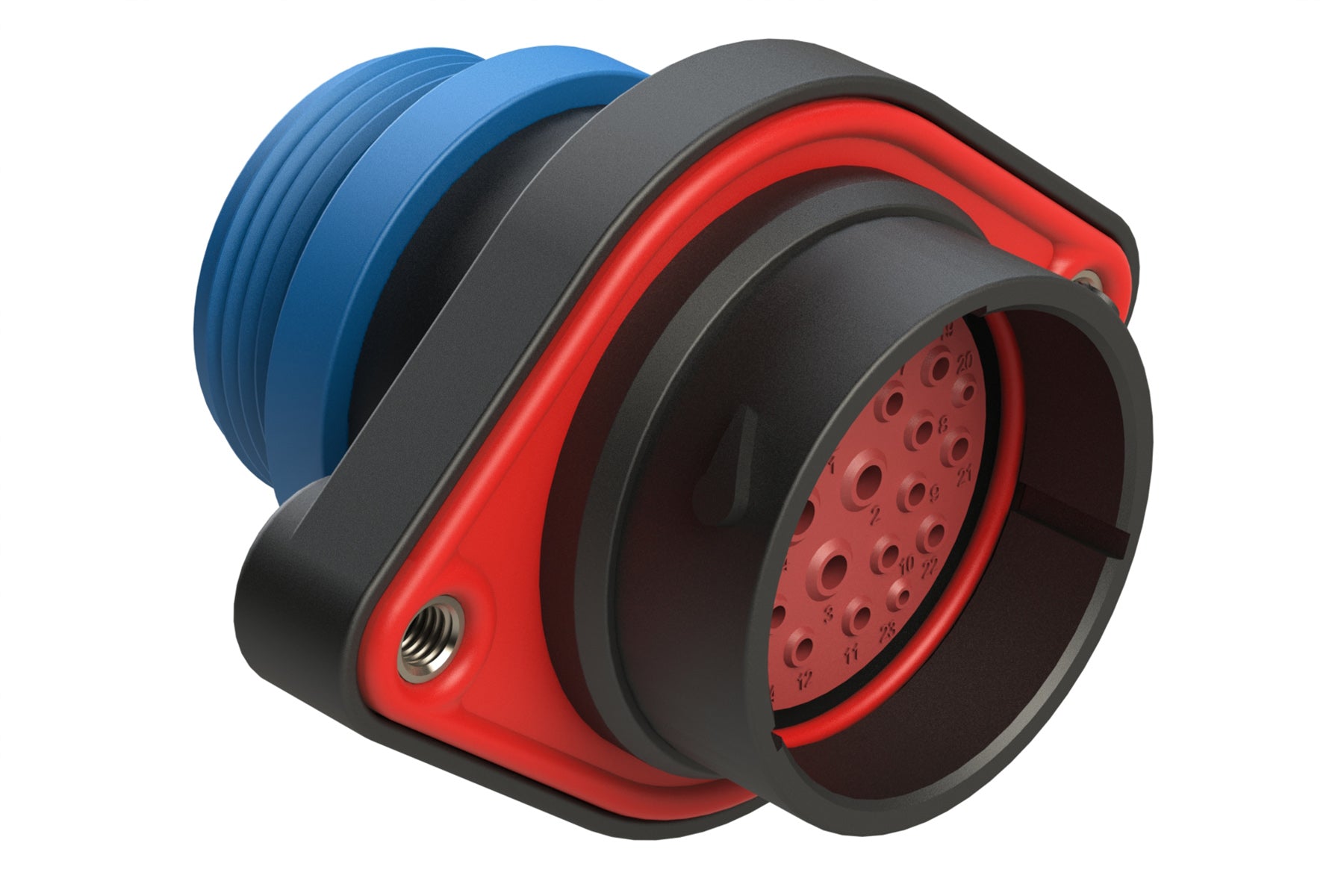

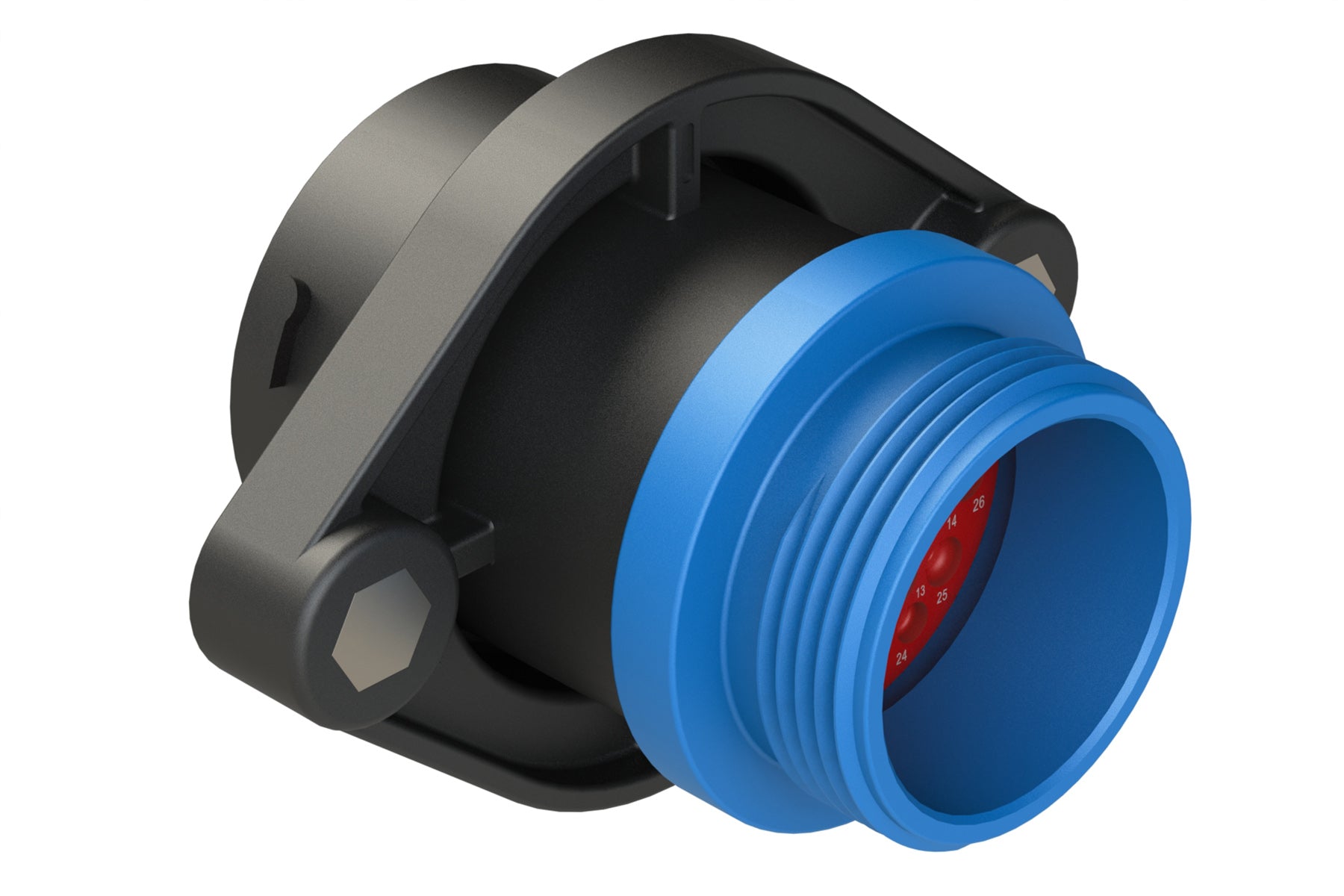

AHDP02-24-29PR-STA 29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
AHDP02-24-29PR-STA 29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-29PR-STA
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 29Gender: Male
Contact Size: 12,16,20
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-29S*
Seal Diameter: 1.02mm (.040") - 2.10mm (.083") / 1.35mm (.053") - 2.62mm (.103") / 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5 mm²), 16-22 AWG (1.5-0.35mm²)
Shape: Circular
29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
