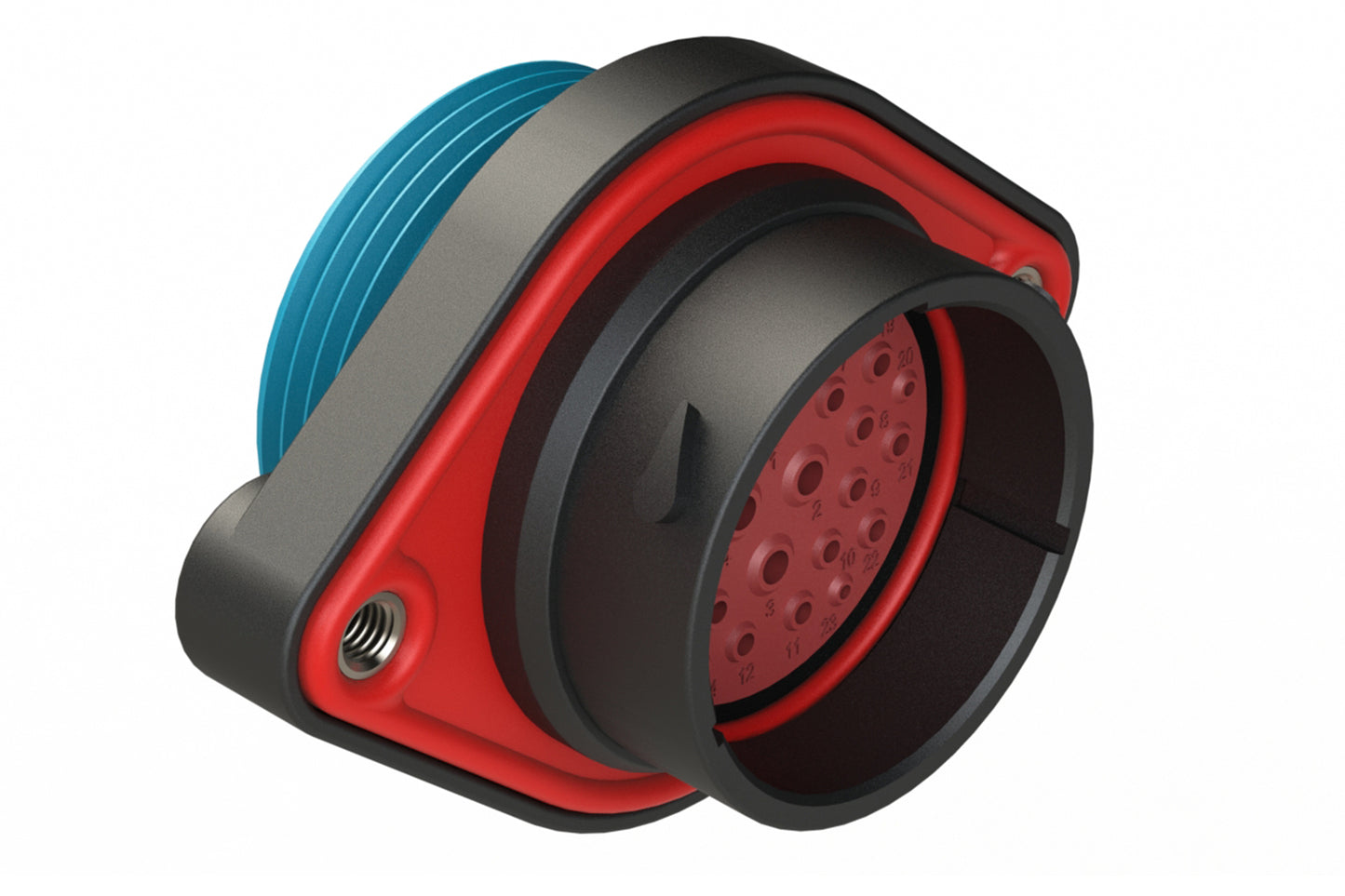

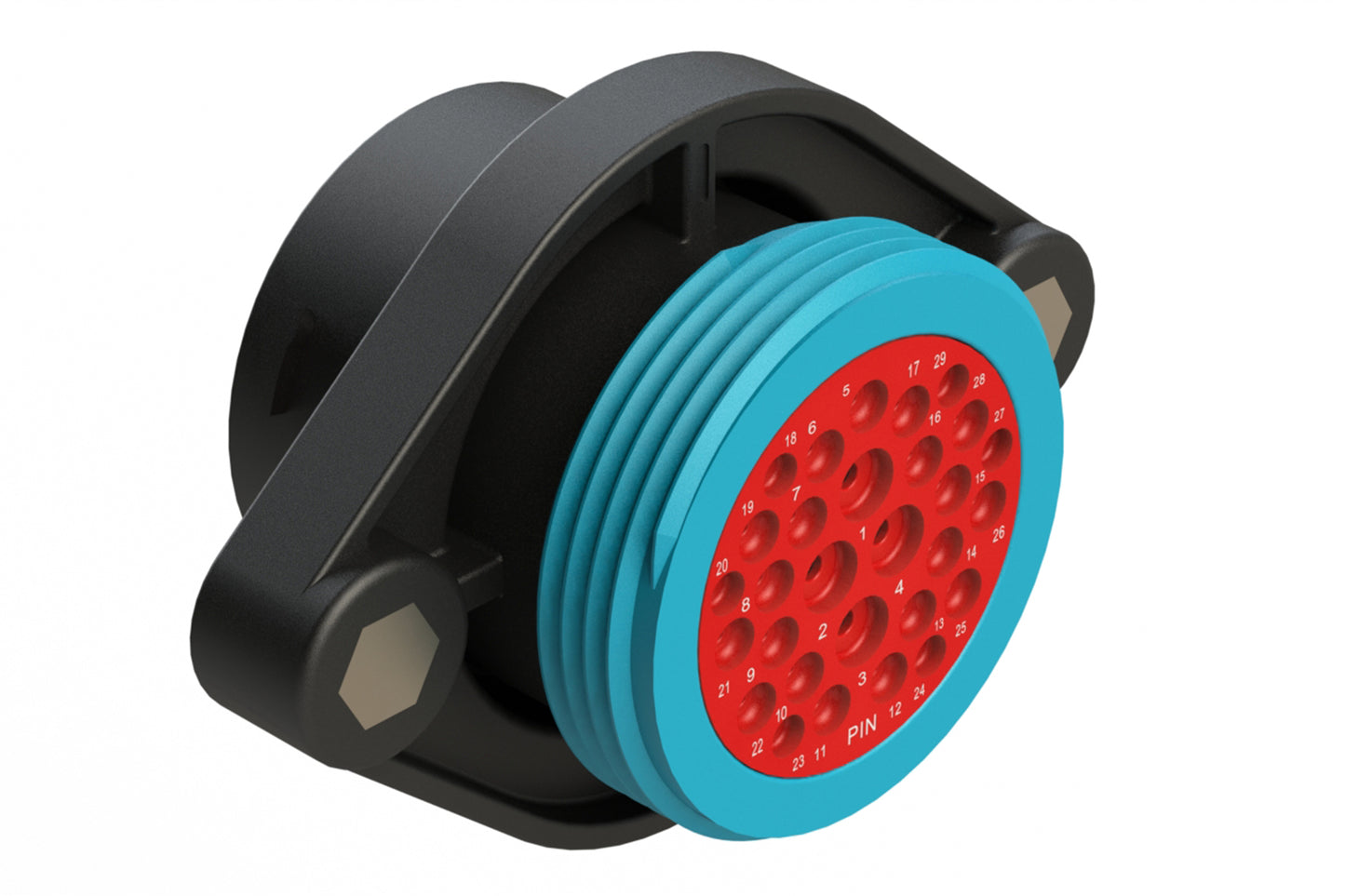

AHDP02-24-29PR-WTA 29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
AHDP02-24-29PR-WTA 29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-29PR-WTA
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 29Gender: Male (Standard)
Contact Size: 12,16,20
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-29S*
Seal Diameter: 1.02mm (.040") - 2.10mm (.083") / 1.35mm (.053") - 2.62mm (.103") / 2.46mm (.097") - 4.01mm (.158")
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²), 10-14 AWG (6.0-2.0mm²)
Shape: Circular
29 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
