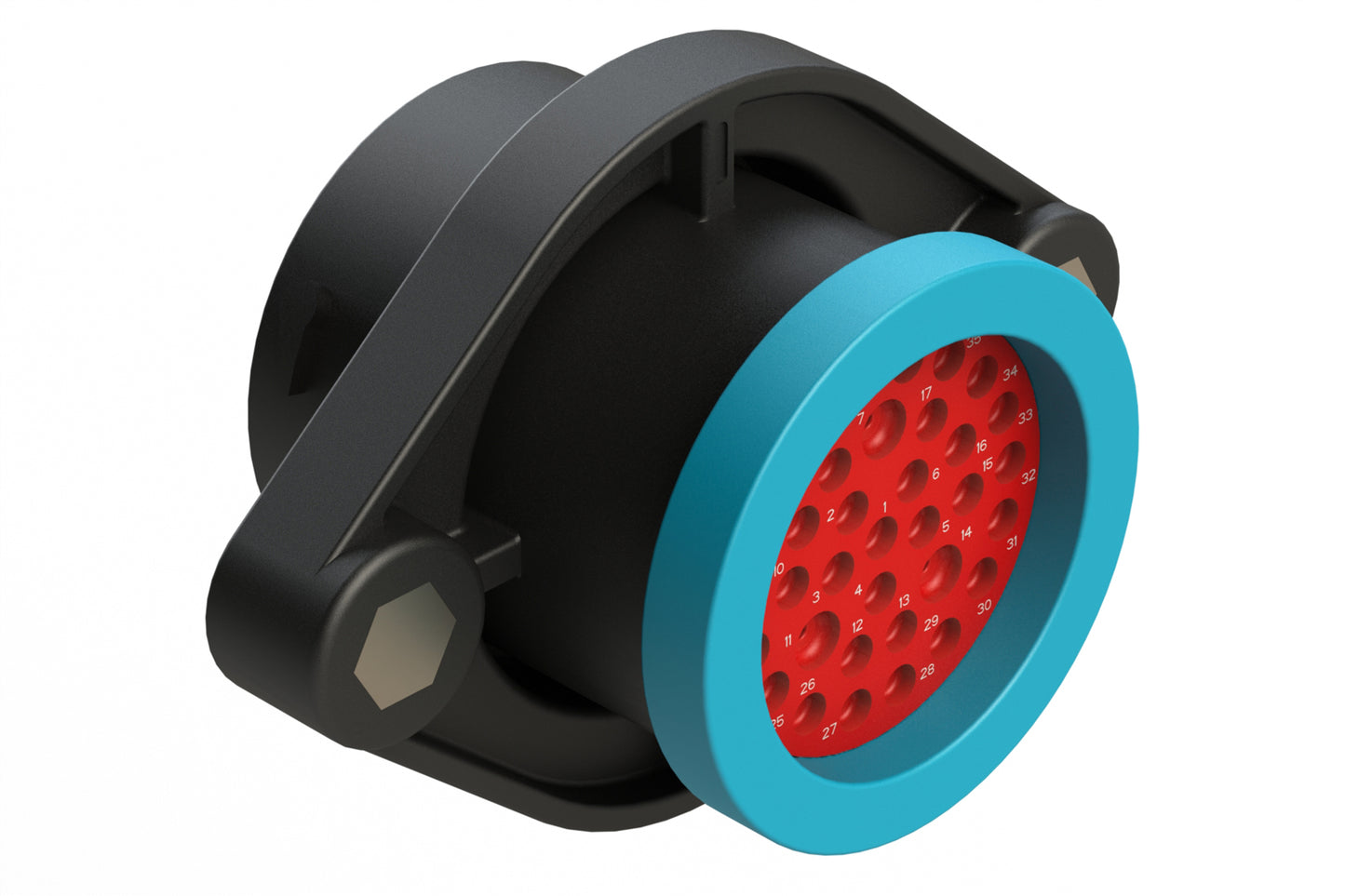

AHDP02-24-35PR-BRA 35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Backshell Ring Adapter
AHDP02-24-35PR-BRA 35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Backshell Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-35PR-BRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 35Gender: Male (Standard)
Contact Size: 16,20
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-35S*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120") / 1.02mm (.040") - 2.41mm (.095")
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Backshell Ring Adapter
