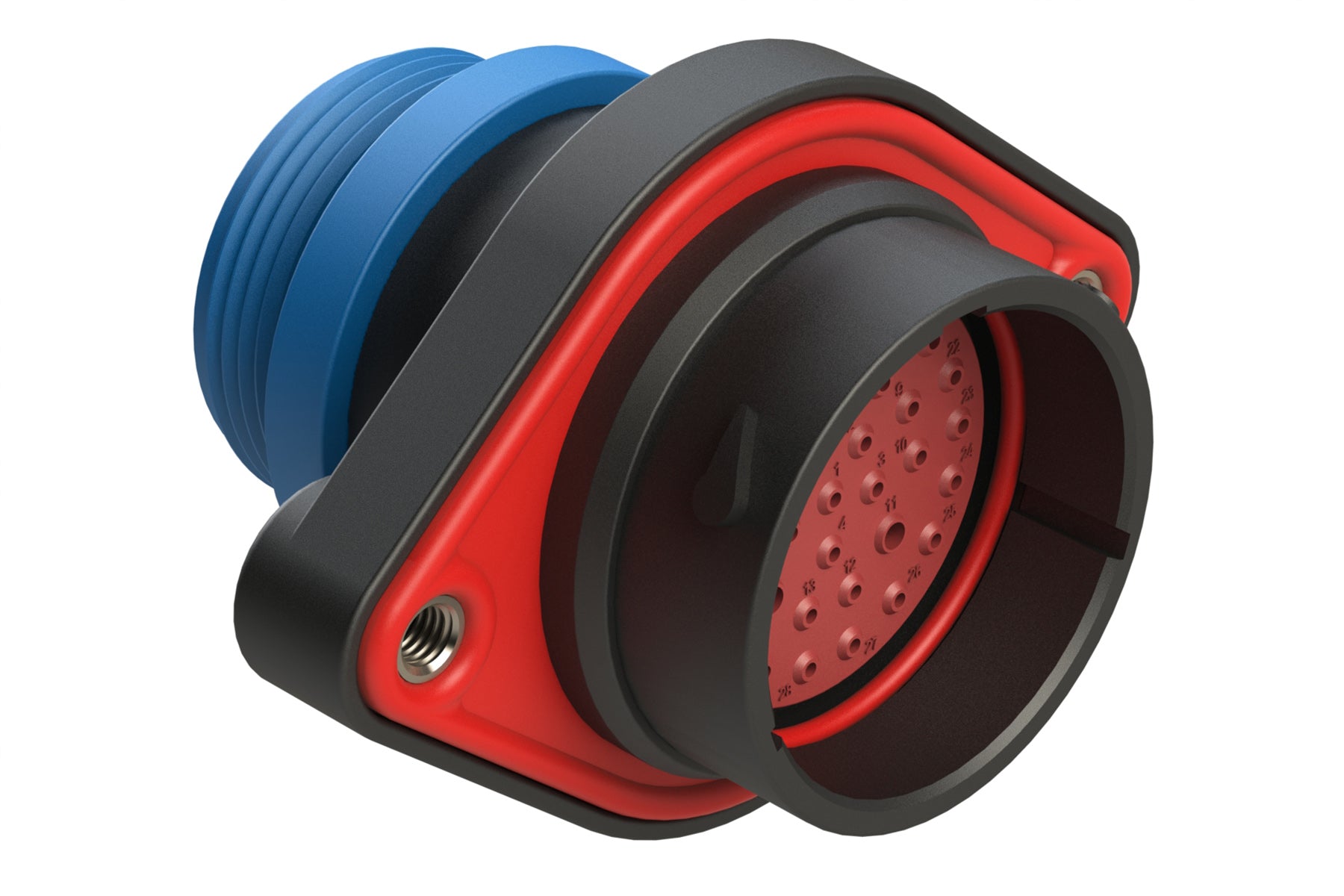

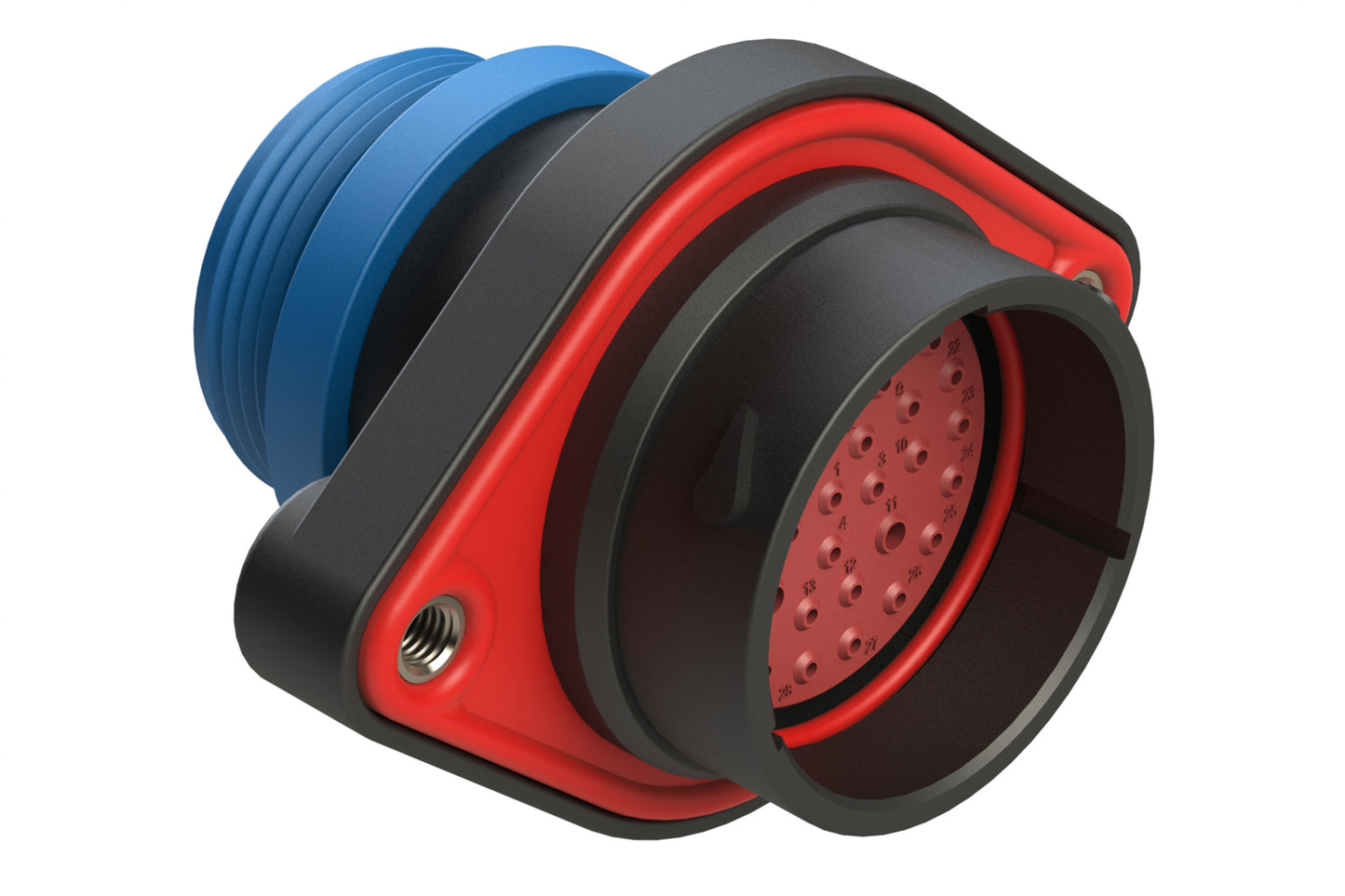

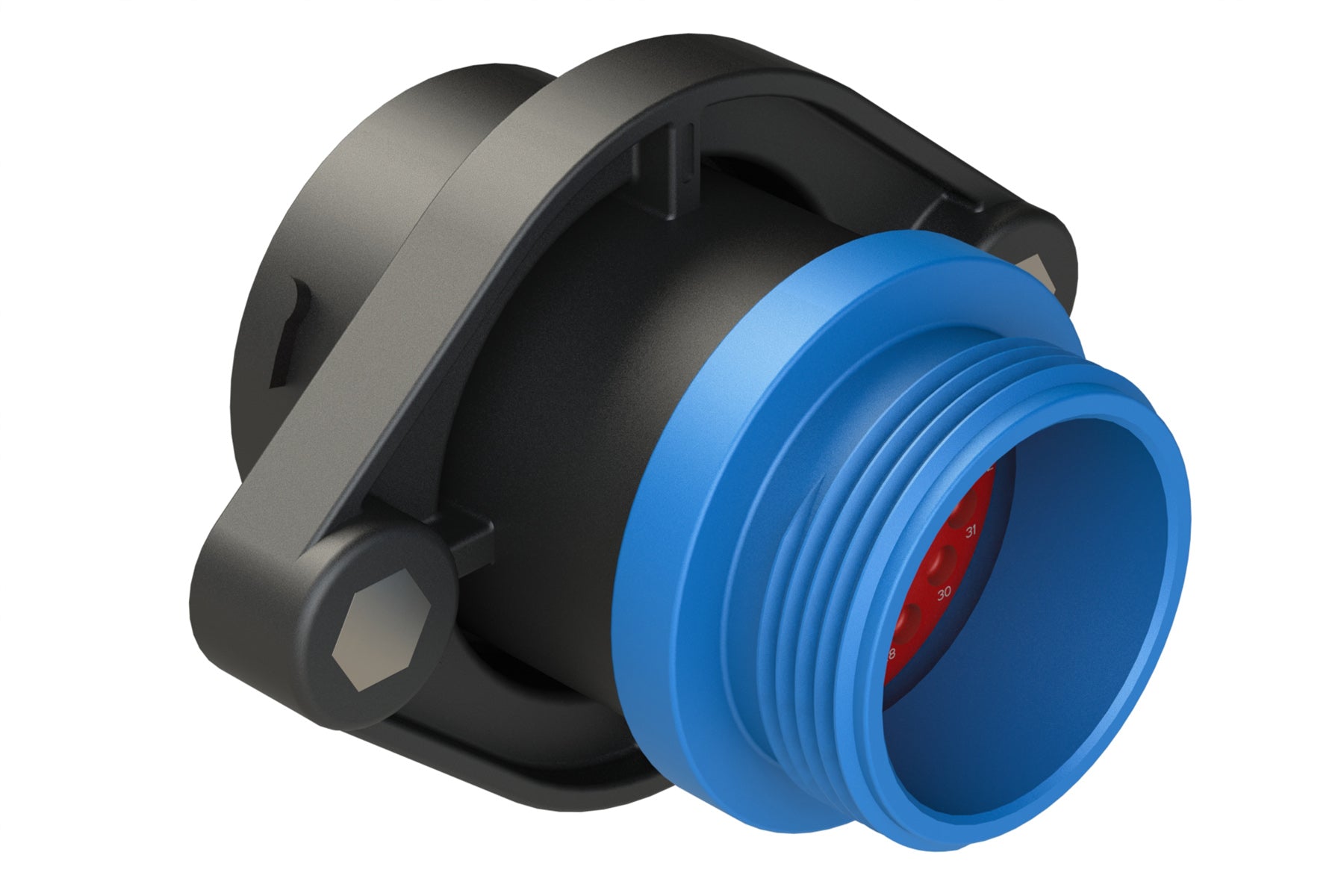

AHDP02-24-35PR-STA 35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter

AHDP02-24-35PR-STA 35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter

IMAGE MAY DIFFER

SKU:AHDP02-24-35PR-STA

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 35
Gender: Male
Contact Size: 16,20
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-35S*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120") / 1.02mm (.040") - 2.41mm (.095")
Wire Range: 14-20 AWG (2.0-0.5mm²), 16-22 AWG(1.5-0.35mm²)
Shape: Circular

35 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
