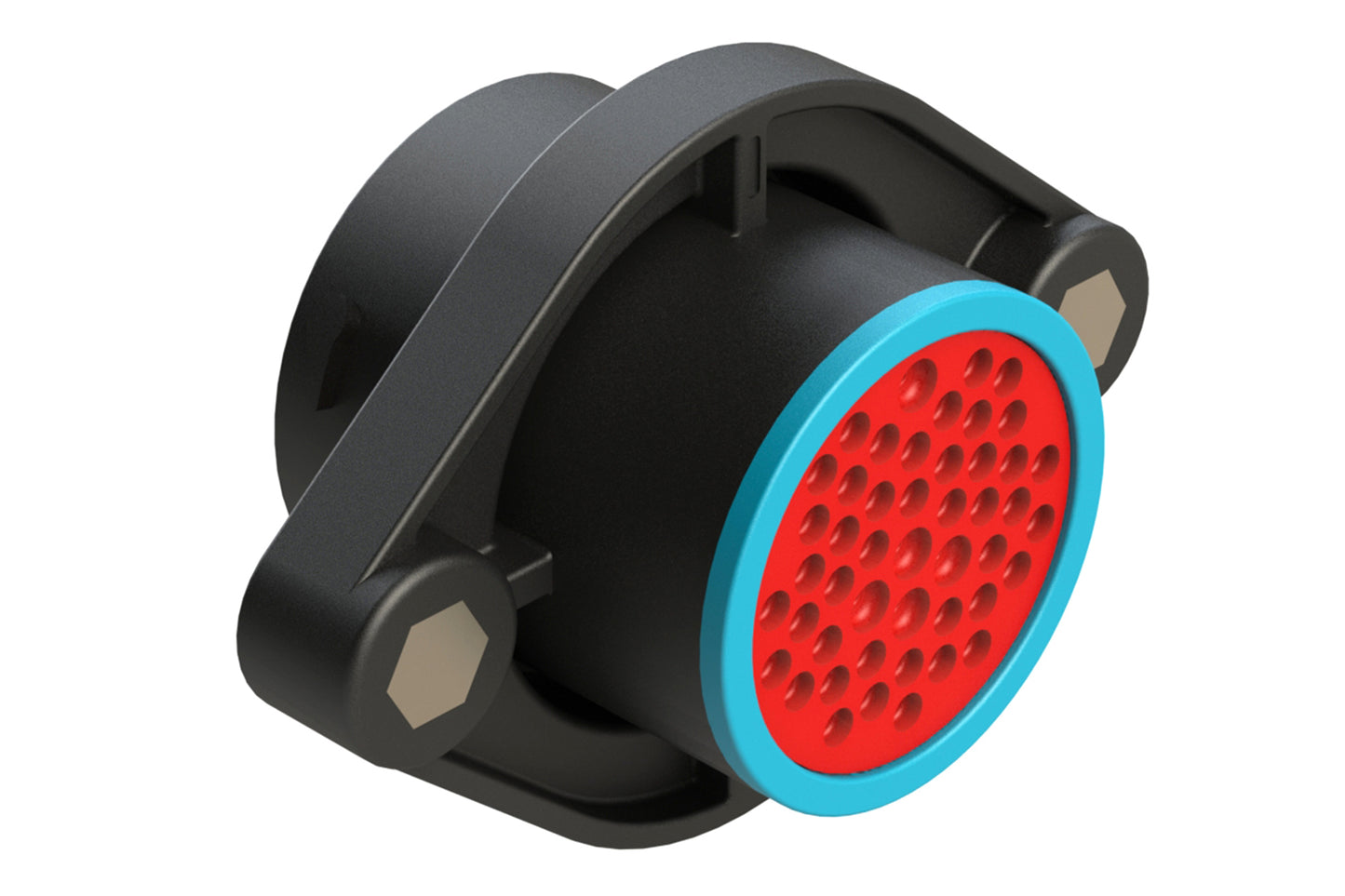

AHDP02-24-47SR-SRA 47 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter
AHDP02-24-47SR-SRA 47 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-47SR-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 47Gender: Female (Reversed)
Contact Size: 16,20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-47P*
Seal Diameter: 1.35mm (.053") - 2.62mm (.103") / 1.02mm (.040") - 2.10mm (.083")
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
47 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter
