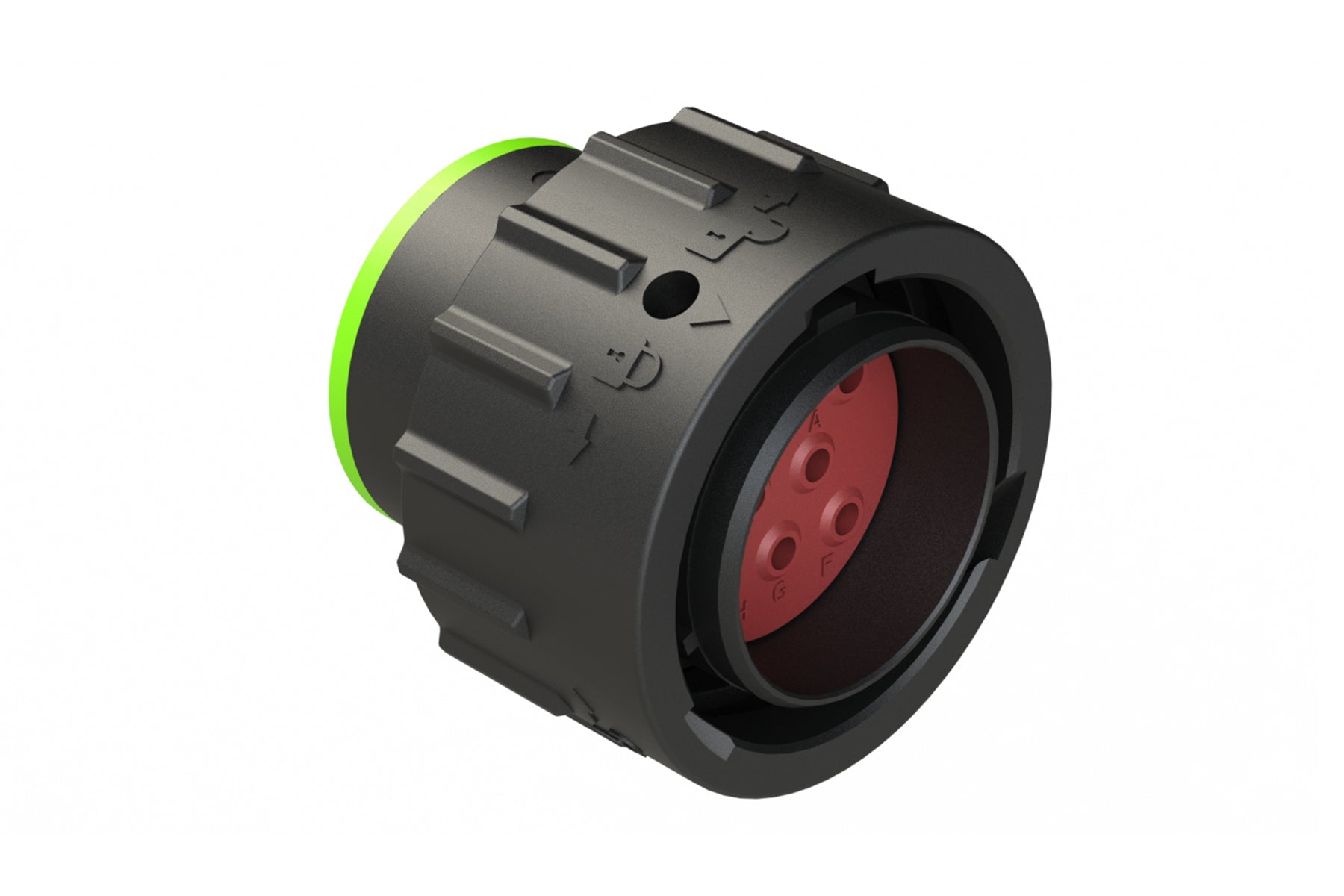

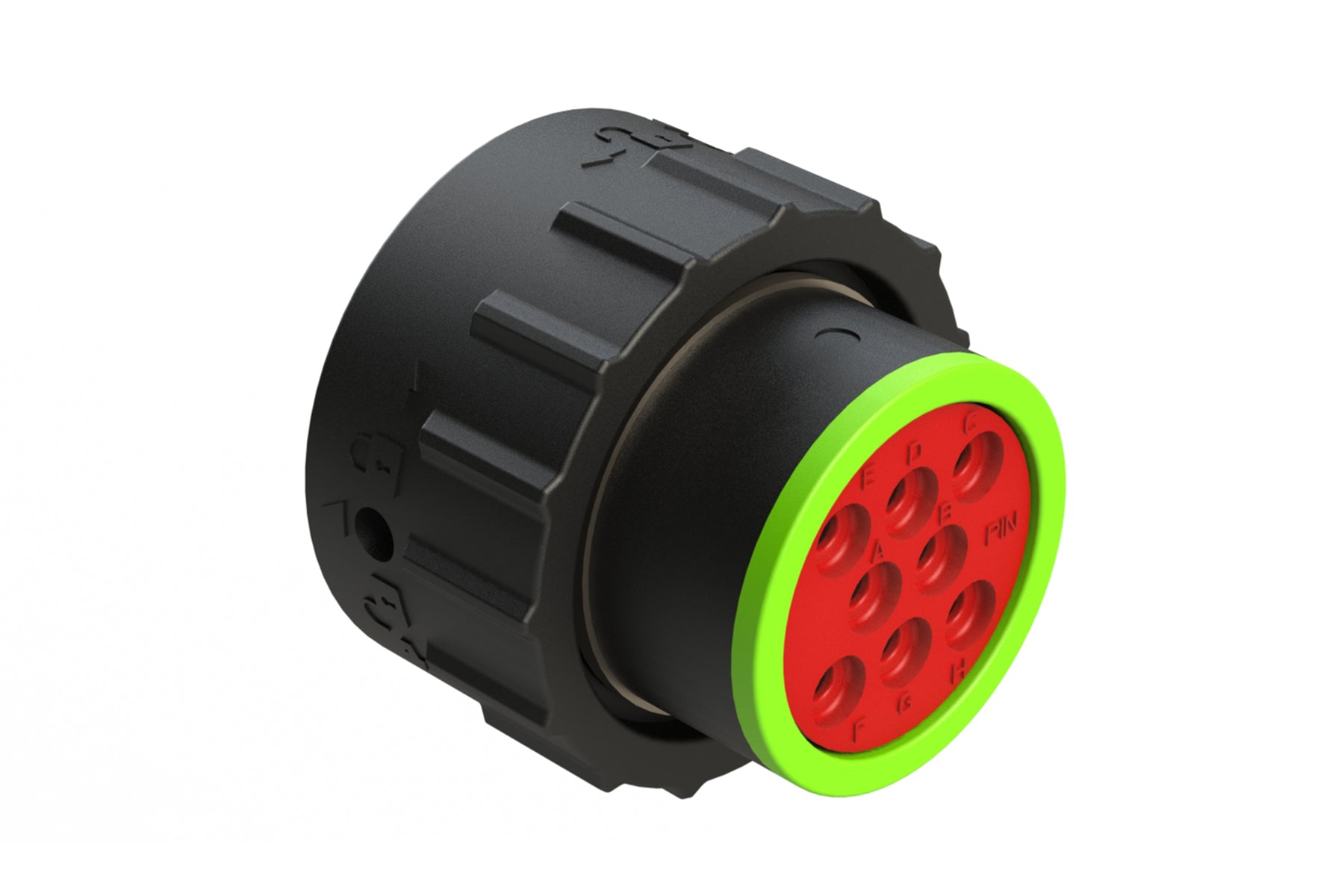

AHDP06-18-08PN-SRA 8 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. HDP26-18-8PN
AHDP06-18-08PN-SRA 8 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter. HDP26-18-8PN
IMAGE MAY DIFFER
SKU:AHDP06-18-08PN-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Male (Reversed)
Contact Size: 12
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-18-08S* & AHDP02-18-08S*
Seal Diameter: 3.40 mm (.135") - 4.32 mm (.170")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
8 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
