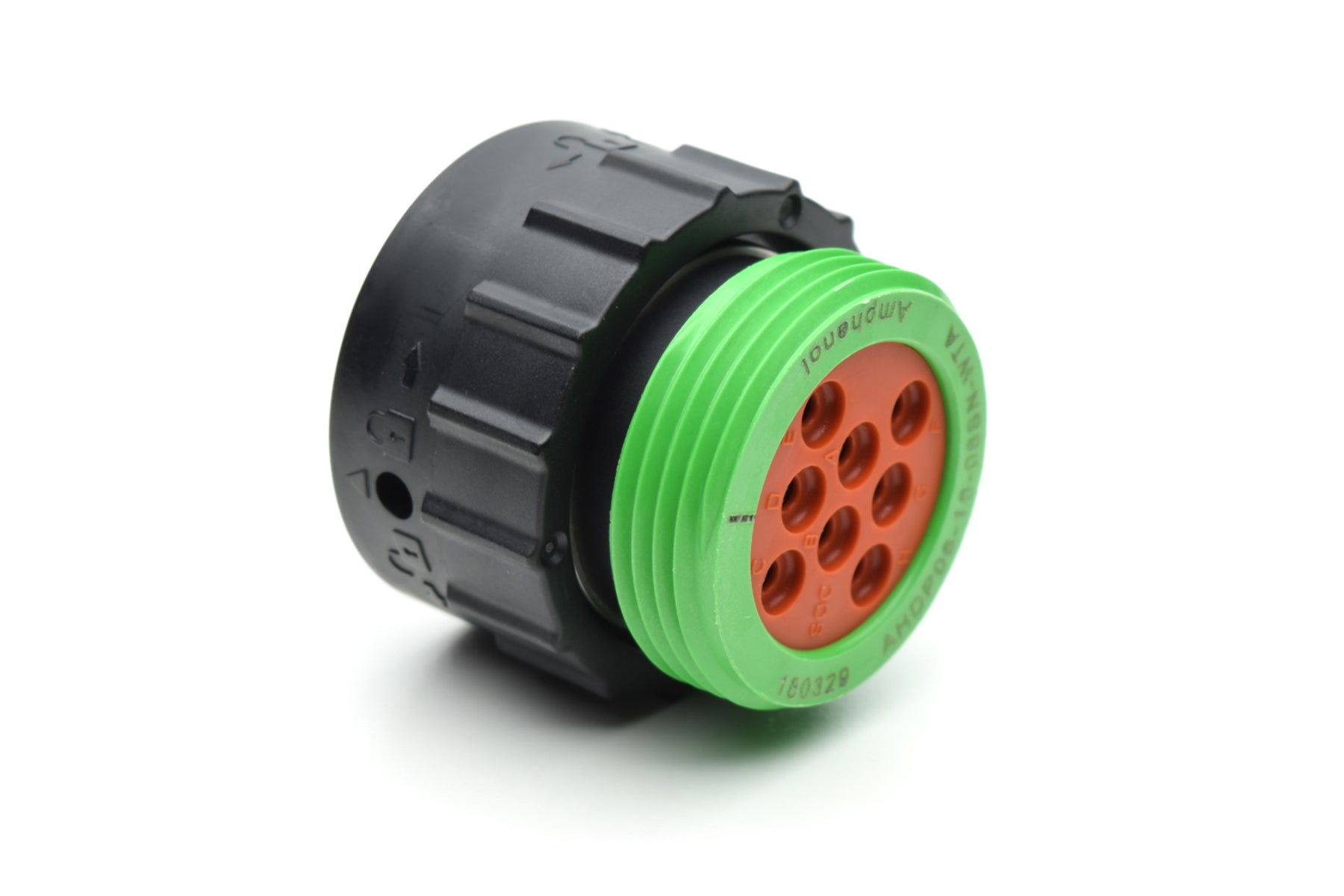

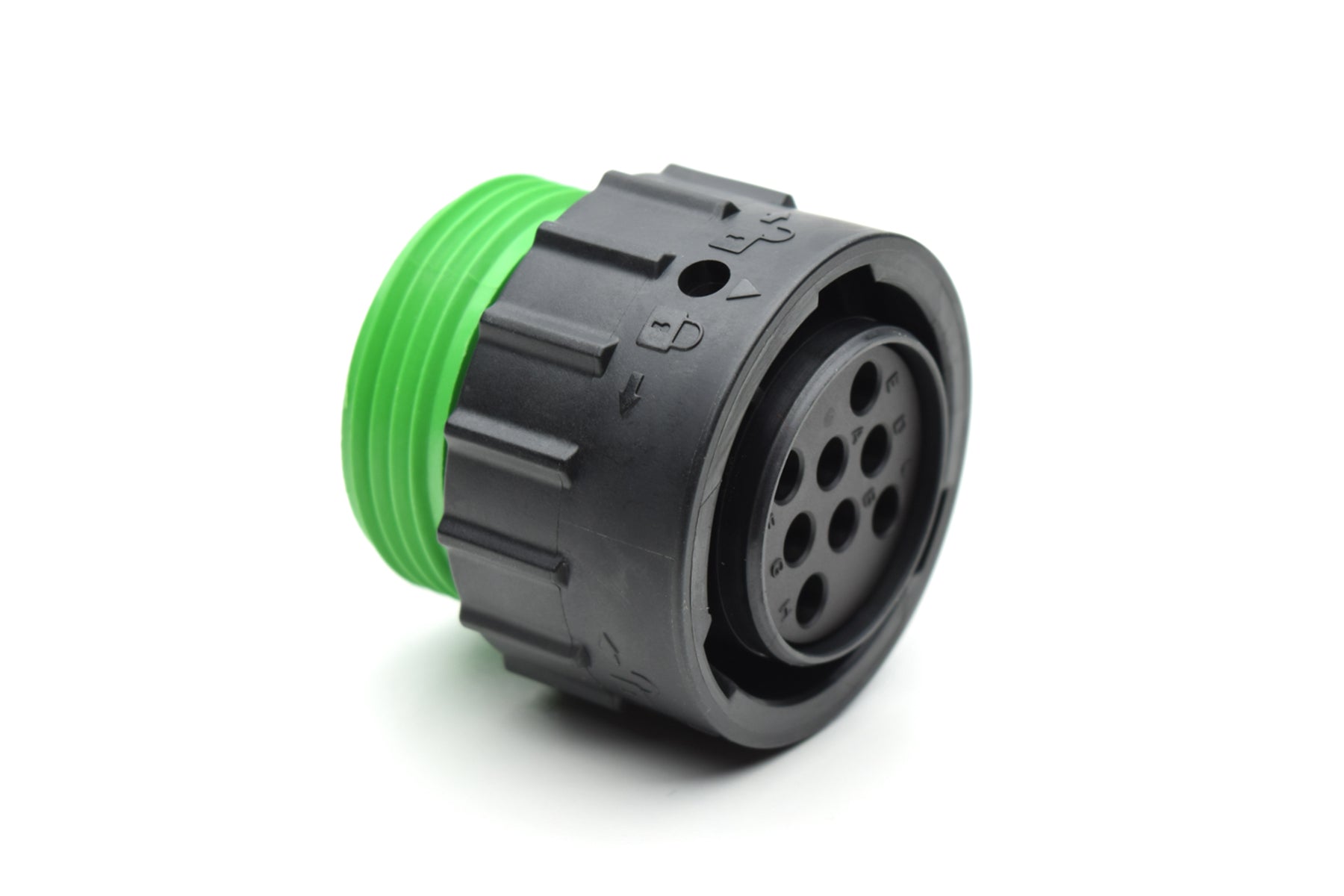

AHDP06-18-08SN-WTA 8 Position Plug, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter. HDP26-18-8SN-L024
AHDP06-18-08SN-WTA 8 Position Plug, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter. HDP26-18-8SN-L024
IMAGE MAY DIFFER
SKU:AHDP06-18-08SN-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Female (Standard)
Contact Size: 12
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-18-08P* & AHDP02-18-08P*
Seal Diameter: 3.43 mm (.135") - 4.32 mm (.170")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
8 Position Plug, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
