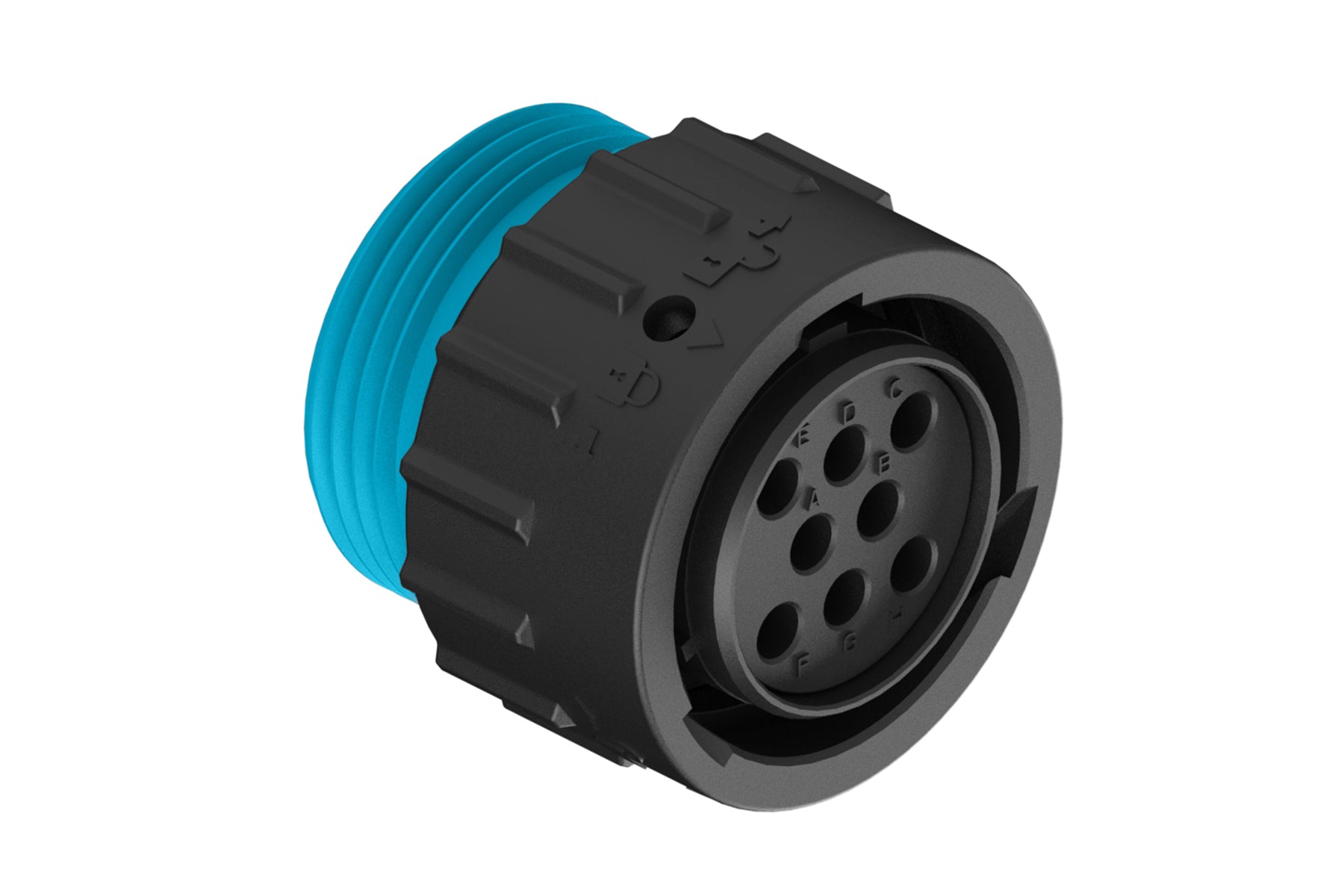

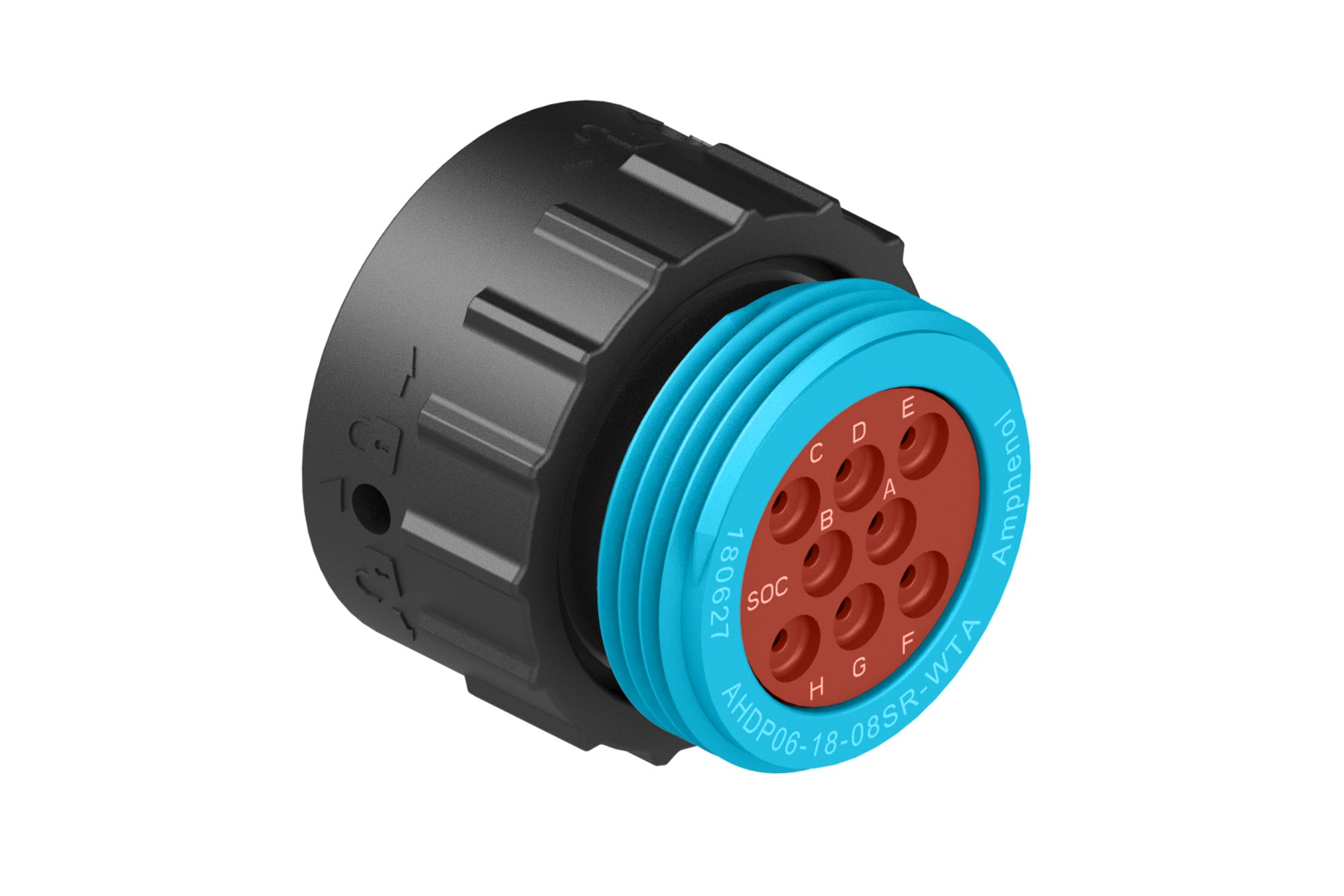

AHDP06-18-08SR-WTA 8 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter. HDP26-18-8SE-L024
AHDP06-18-08SR-WTA 8 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter. HDP26-18-8SE-L024
IMAGE MAY DIFFER
SKU:AHDP06-18-08SR-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Female (Standard)
Contact Size: 12
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-18-08P* & SHDP02-18-08P*
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
8 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
