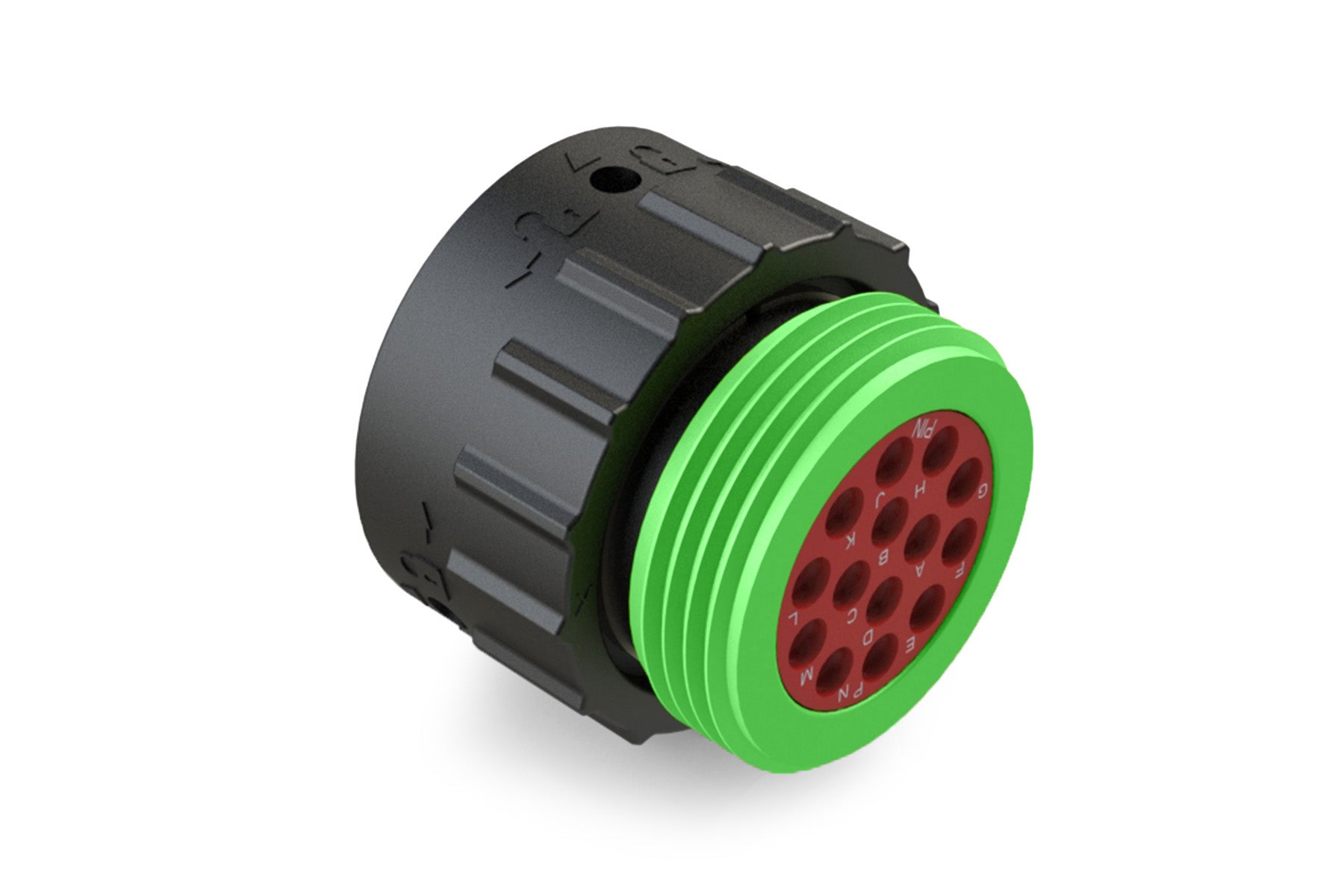

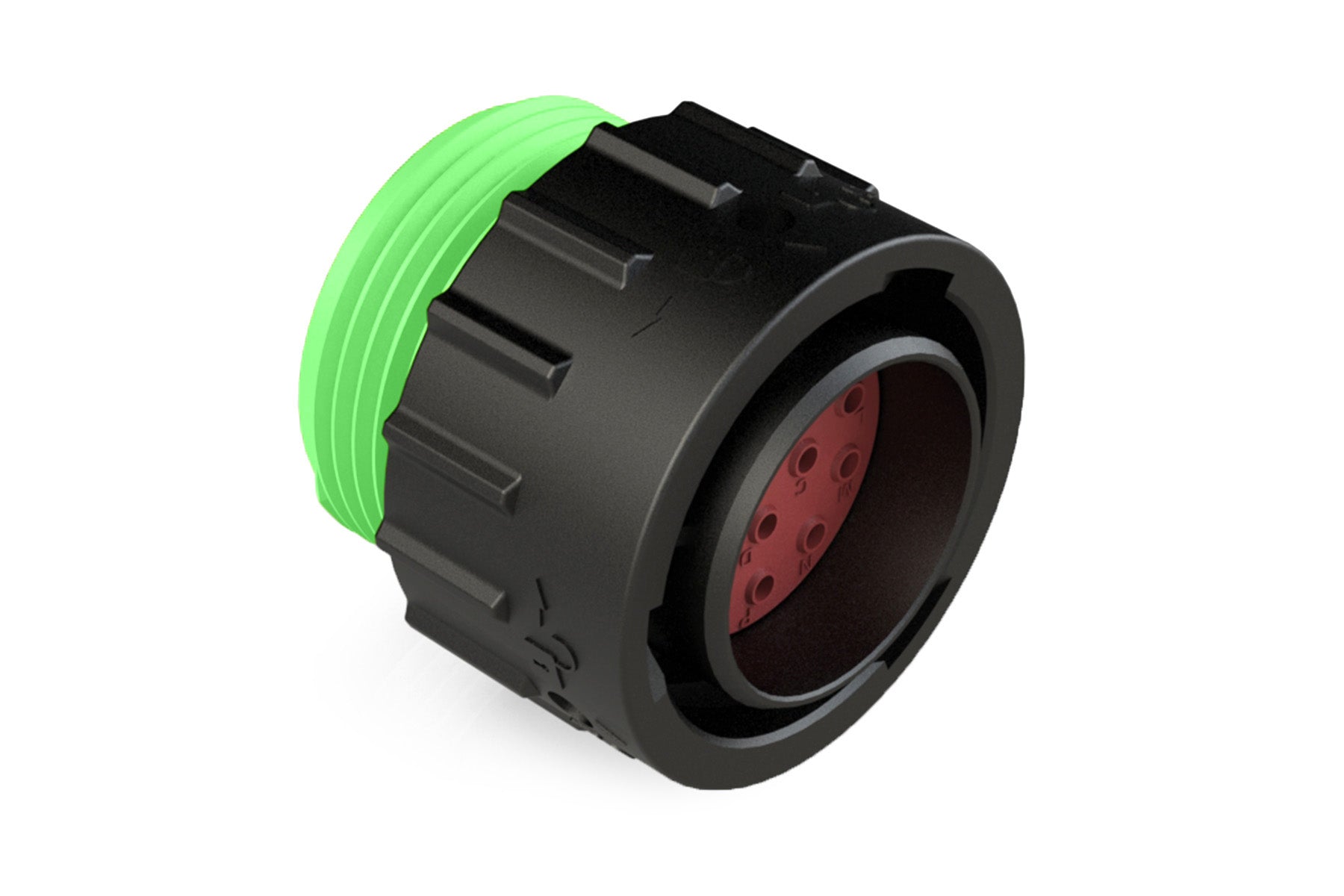

AHDP06-18-14PN-WTA 14 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter. HDP26-18-14PN-L024
AHDP06-18-14PN-WTA 14 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter. HDP26-18-14PN-L024
IMAGE MAY DIFFER
SKU:AHDP06-18-14PN-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 14Gender: Male (Reversed)
Contact Size: 16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-18-14S*& AHDP02-18-14S*
Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
14 Position Plug, Pin, Shell Size 18, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
