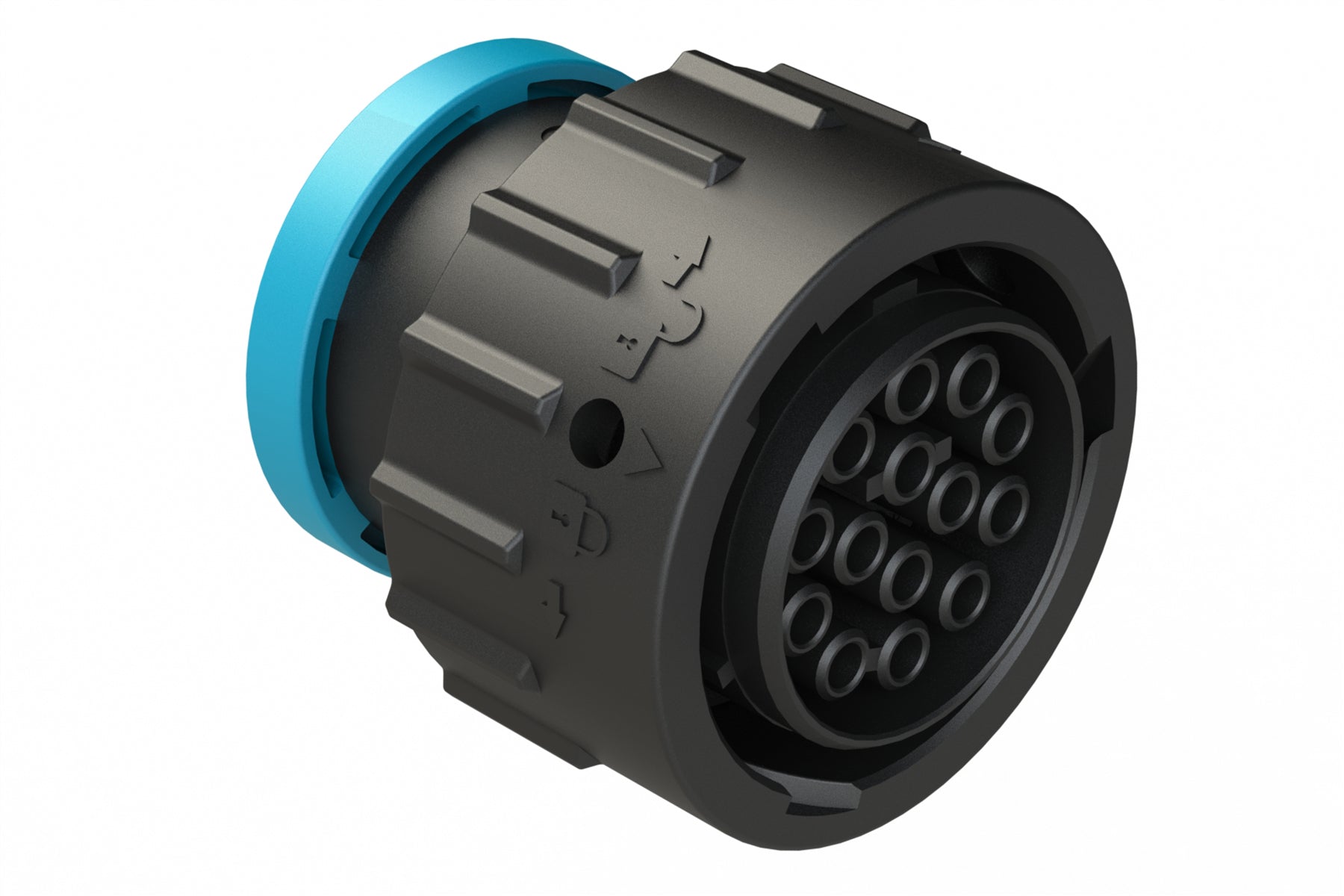

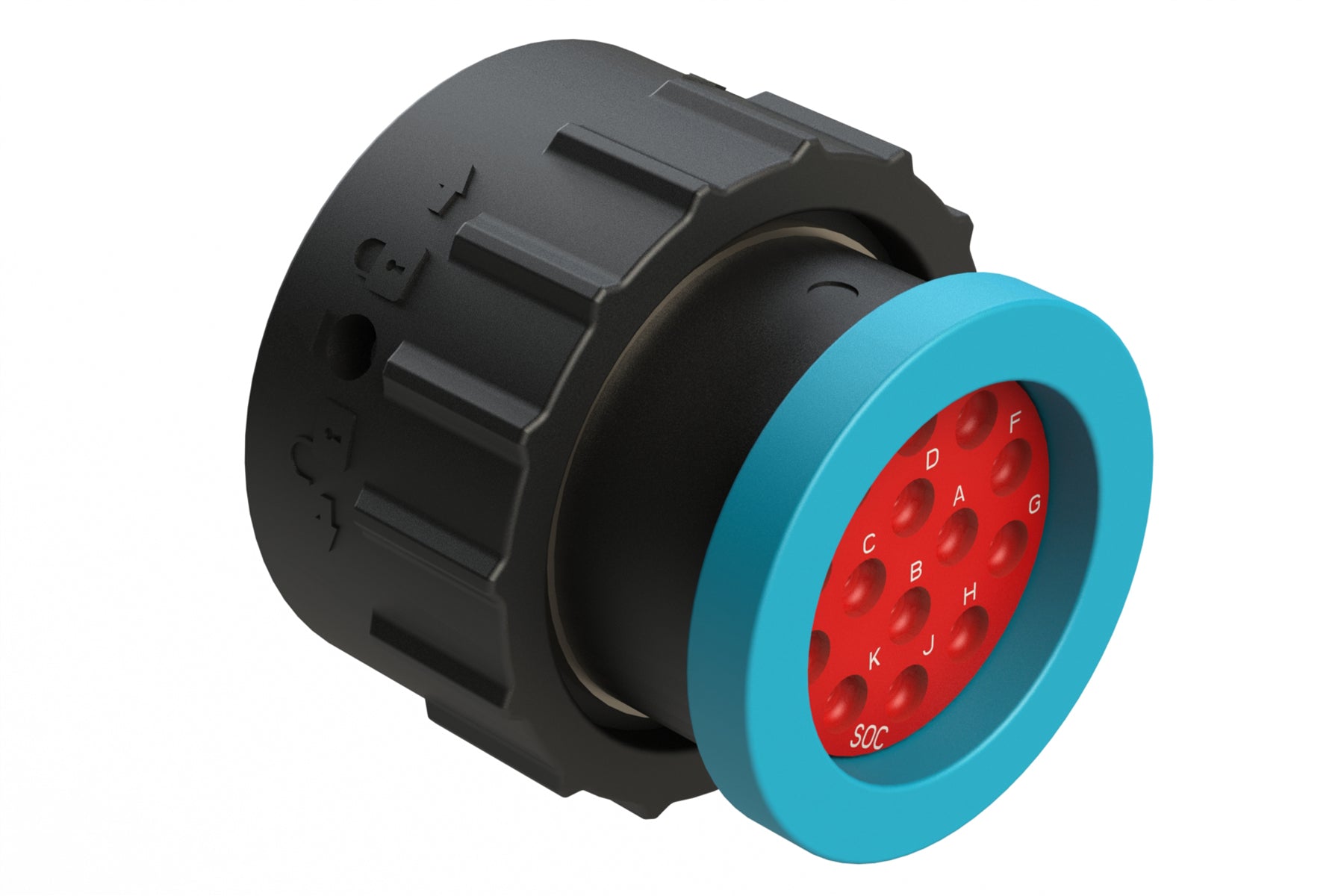

AHDP06-18-14SR-CL20 14 Position Plug, Socket, Shell Size 18, Reduced Diameter Rear Seal (Blue Adapter), Backshell Ring Adapter, CL20 w Diagnostic Keying. HDP26-18-14SE-CL20
AHDP06-18-14SR-CL20 14 Position Plug, Socket, Shell Size 18, Reduced Diameter Rear Seal (Blue Adapter), Backshell Ring Adapter, CL20 w Diagnostic Keying. HDP26-18-14SE-CL20
IMAGE MAY DIFFER
SKU:AHDP06-18-14SR-CL20
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 14Gender: Female (Standard)
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-24-14PR-C041
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
14 Position Plug, Socket, Shell Size 18, Reduced Diameter Rear Seal (Blue Adapter), Backshell Ring Adapter, CL20 w Diagnostic Keying
