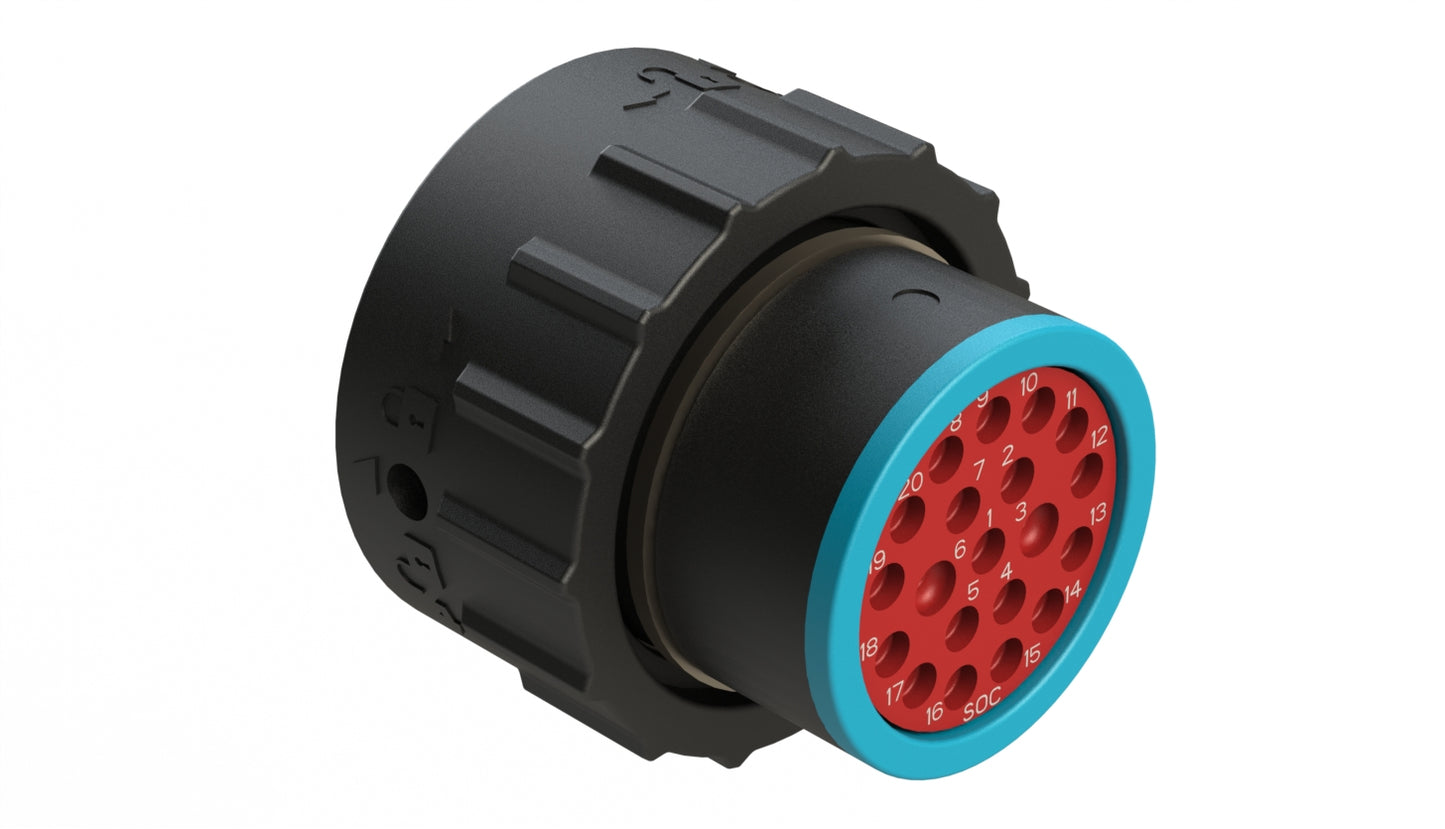

AHDP06-18-20SR-SRA 20 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter. HDP26-18-20SE
AHDP06-18-20SR-SRA 20 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter. HDP26-18-20SE
IMAGE MAY DIFFER
SKU:AHDP06-18-20SR-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 20Gender: Female (Standard)
Contact Size: 16,20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-18-20P* & AHDP02-18-20P*
Seal Diameter: 1.02mm (.040") - 2.10mm (.083") / 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
20 Position Plug, Socket, Shell Size 18, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter
