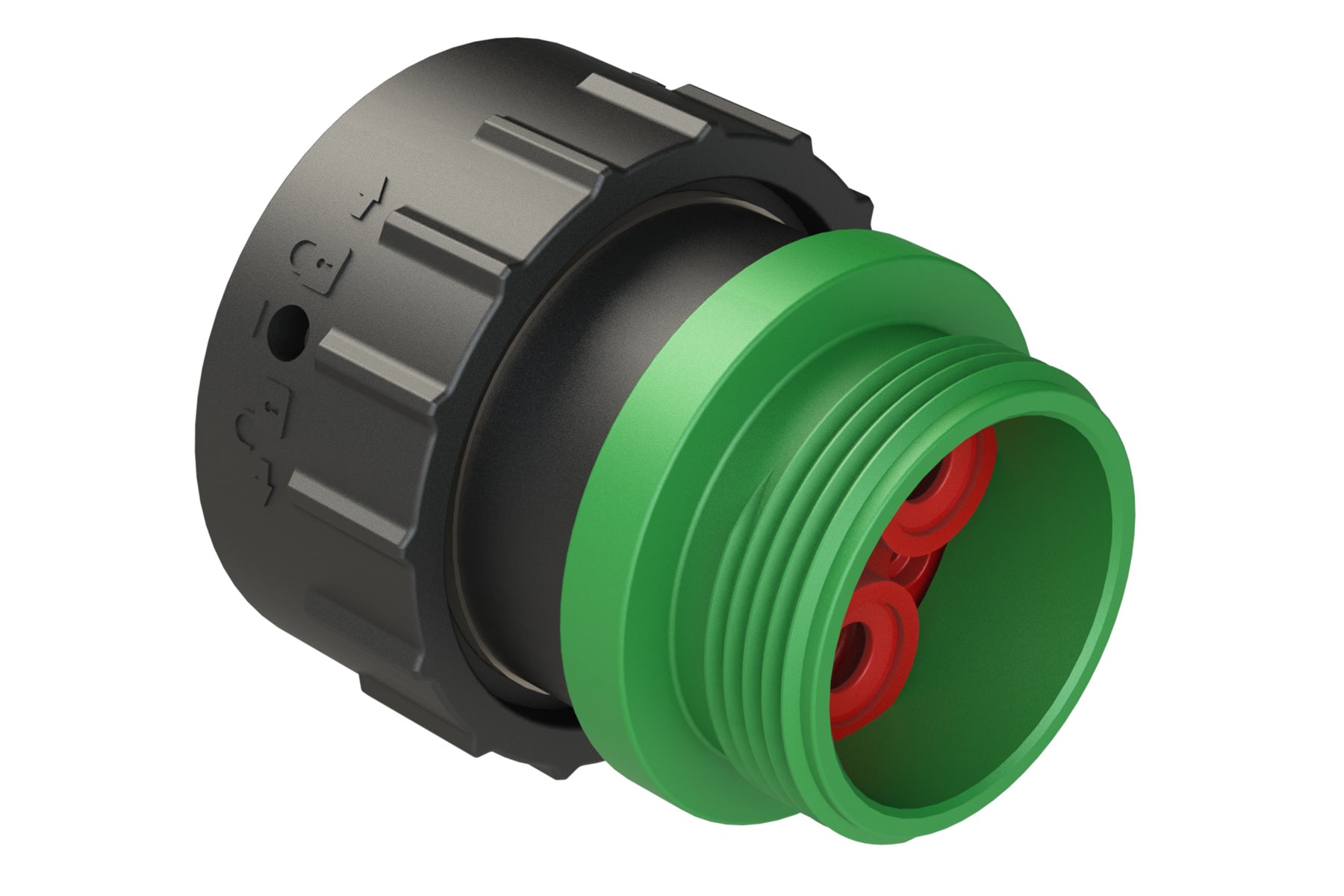

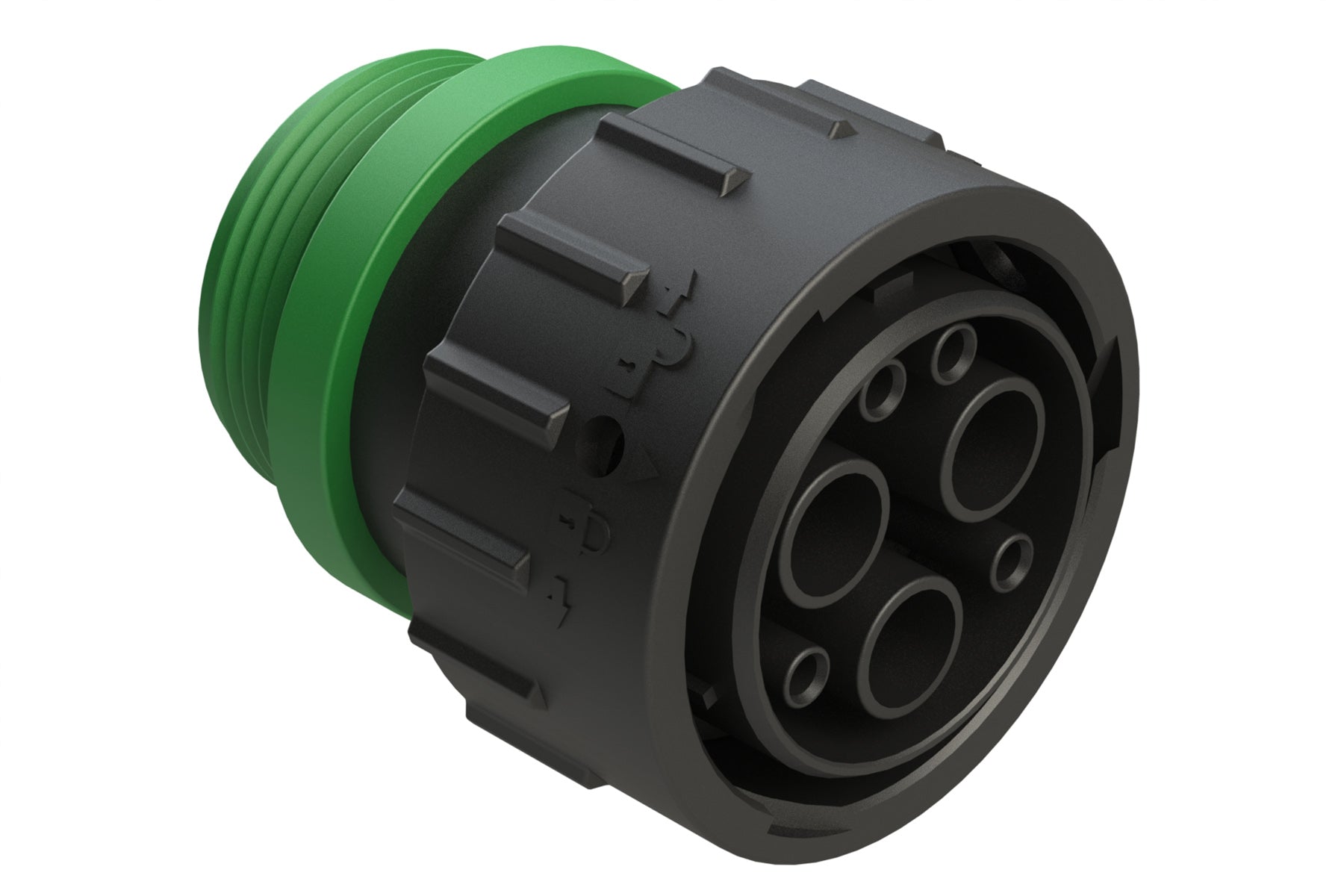

AHDP06-24-07SN-STACL22 7 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), CL22, Small Thread Adapter
AHDP06-24-07SN-STACL22 7 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), CL22, Small Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP06-24-07SN-STACL22
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 7Gender: Female
Contact Size: 4,16
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP02-24-07P* & AHDP04-24-07P*
Seal Diameter: 7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") - 3.40mm (.134")
Wire Range: 6 AWG (16.0-13.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
7 Position Plug, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), CL22, Small Thread Adapter
