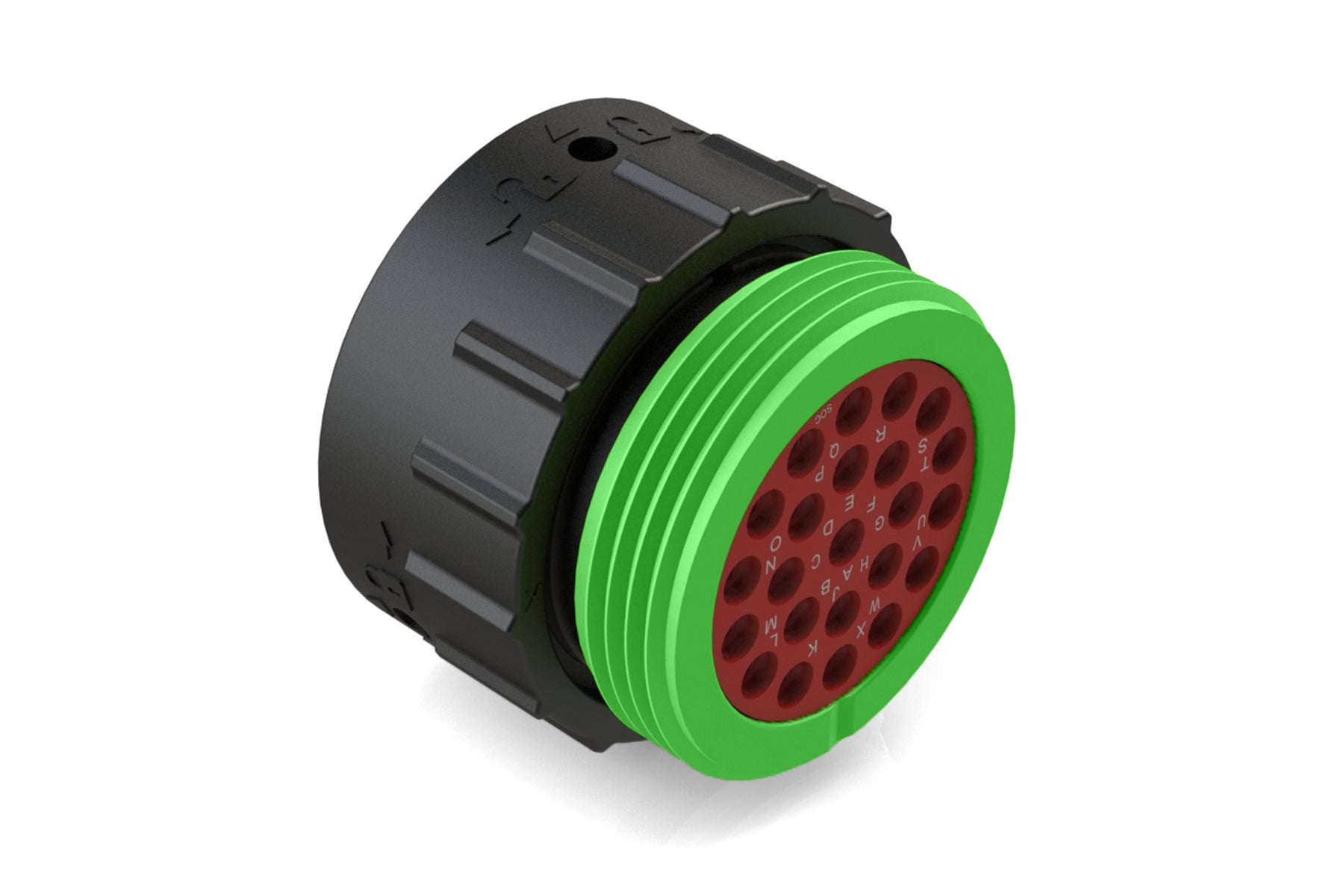

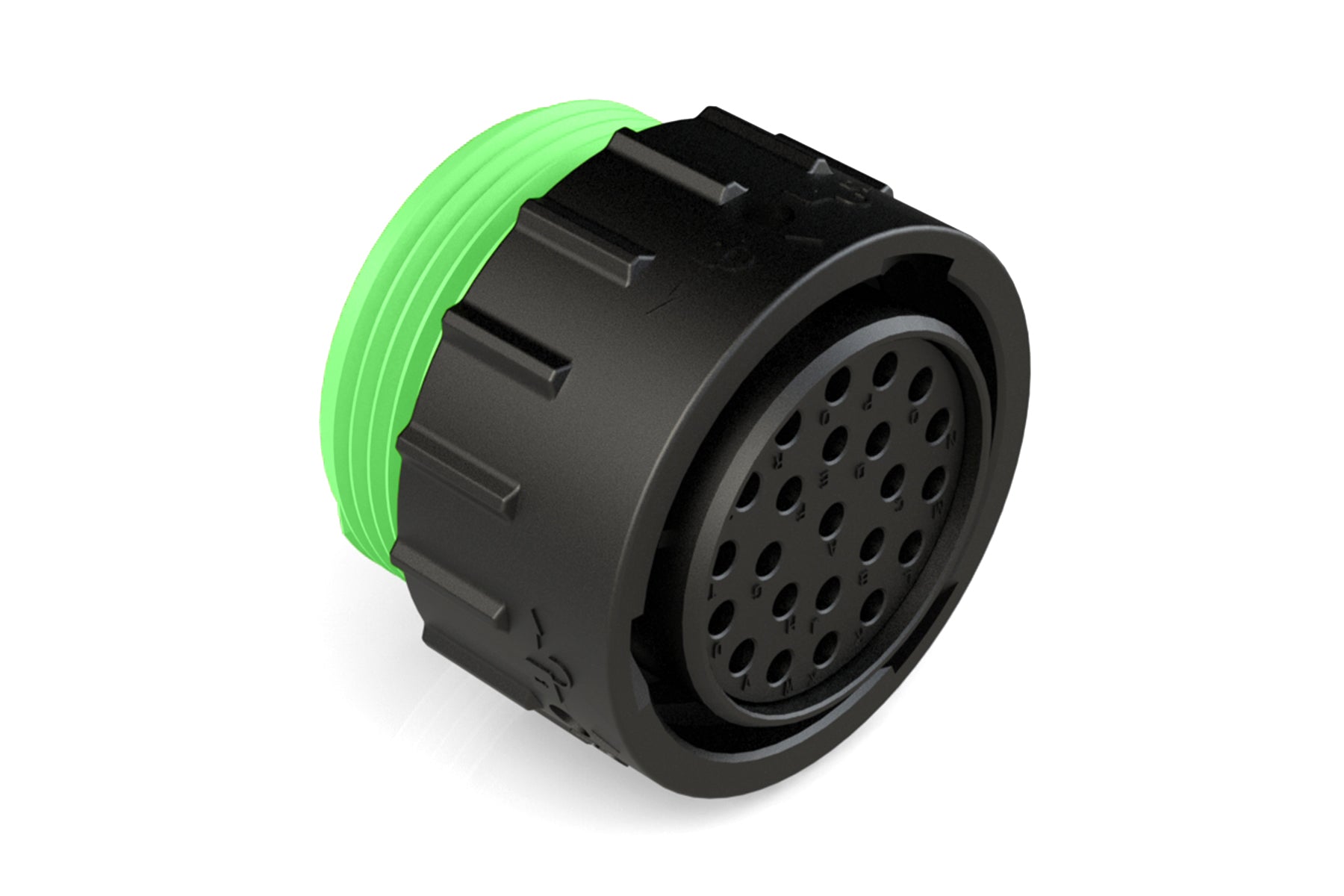

AHDP06-24-23SN-WTA 23 Position Socket, Shell Size 24, Normal Diameter Seal, (Green Adapter) Wide Thread Adapter. HDP26-24-23SN-L024
AHDP06-24-23SN-WTA 23 Position Socket, Shell Size 24, Normal Diameter Seal, (Green Adapter) Wide Thread Adapter. HDP26-24-23SN-L024
IMAGE MAY DIFFER
SKU:AHDP06-24-23SN-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 23Gender: Female (Standard)
Contact Size: 16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-24-23P* & AHDP02-24-23P*
Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
23 Position Socket, Shell Size 24, Normal Diameter Seal, (Green Adapter) Wide Thread Adapter
