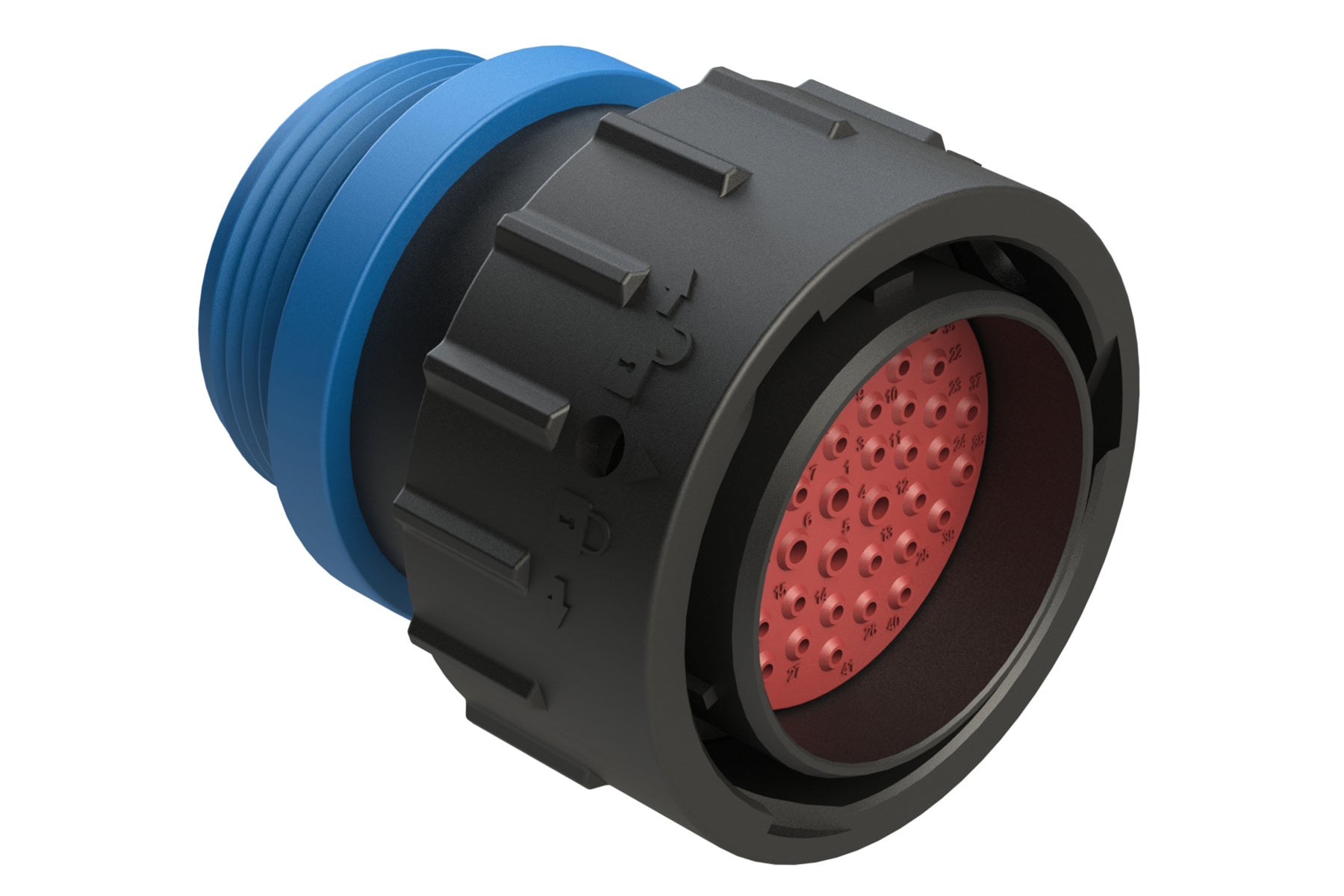

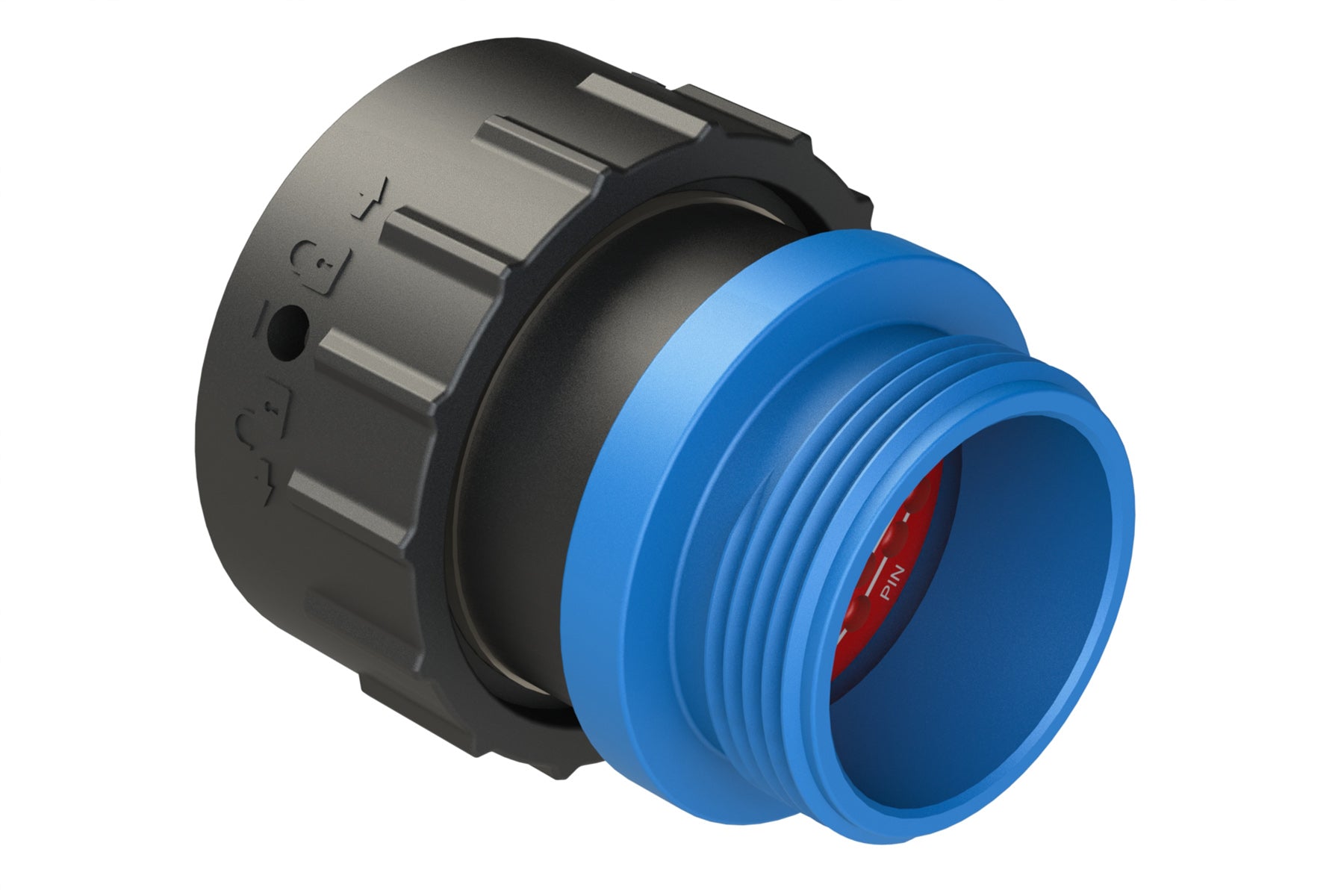

AHDP06-24-47PR-STA 47 Position Plug, Pin, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter. HDP26-24-47PE-L015
AHDP06-24-47PR-STA 47 Position Plug, Pin, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter. HDP26-24-47PE-L015
IMAGE MAY DIFFER
SKU:AHDP06-24-47PR-STA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 47Gender: Male
Contact Size: 16,20
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP02-24-47S* & AHDP04-24-47S*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120") / 1.02mm (.040") - 2.41mm (.095")
Wire Range: 14-20 AWG (2.0-0.5mm²), 16-22 AWG(1.5-0.35mm²)
Shape: Circular
47 Position Plug, Pin, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
