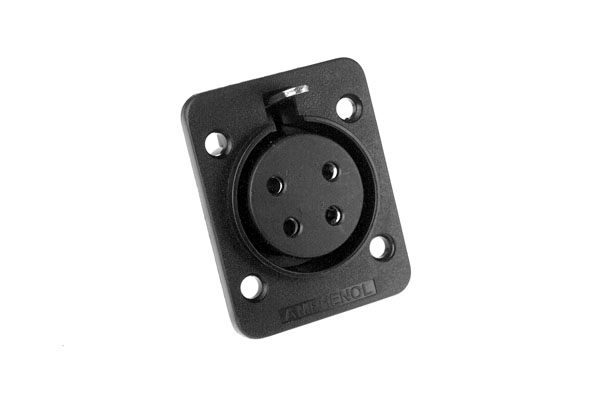

AP-4-21 4 Pole Female Loudspeaker ChassisMount,Thermoplastic Shell, Rectangular Flange, Black Finish

Name: AP-4-21 4 Pole Female Loudspeaker ChassisMount,Thermoplastic Shell, Rectangular Flange, Black Finish
Brand: Amphenol Audio
SKU: AP-4-21
Availability: InStock

IMAGE MAY DIFFER

SKU:AP-4-21

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 4
Gender: Female
Finish: Black
Current Carrying Capacity: 20A
IP Rating: IP40
Termination: Solder
Max Wire Gauge: 12AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25˚C to +75˚C (-13°F to +167°F)
Mating Cycle Durability: 1000
Housing Material: Modified PPE Resin

4 Pole Female Loudspeaker Chassis Mount, Thermoplastic Shell, Rectangular Flange, Black Finish
