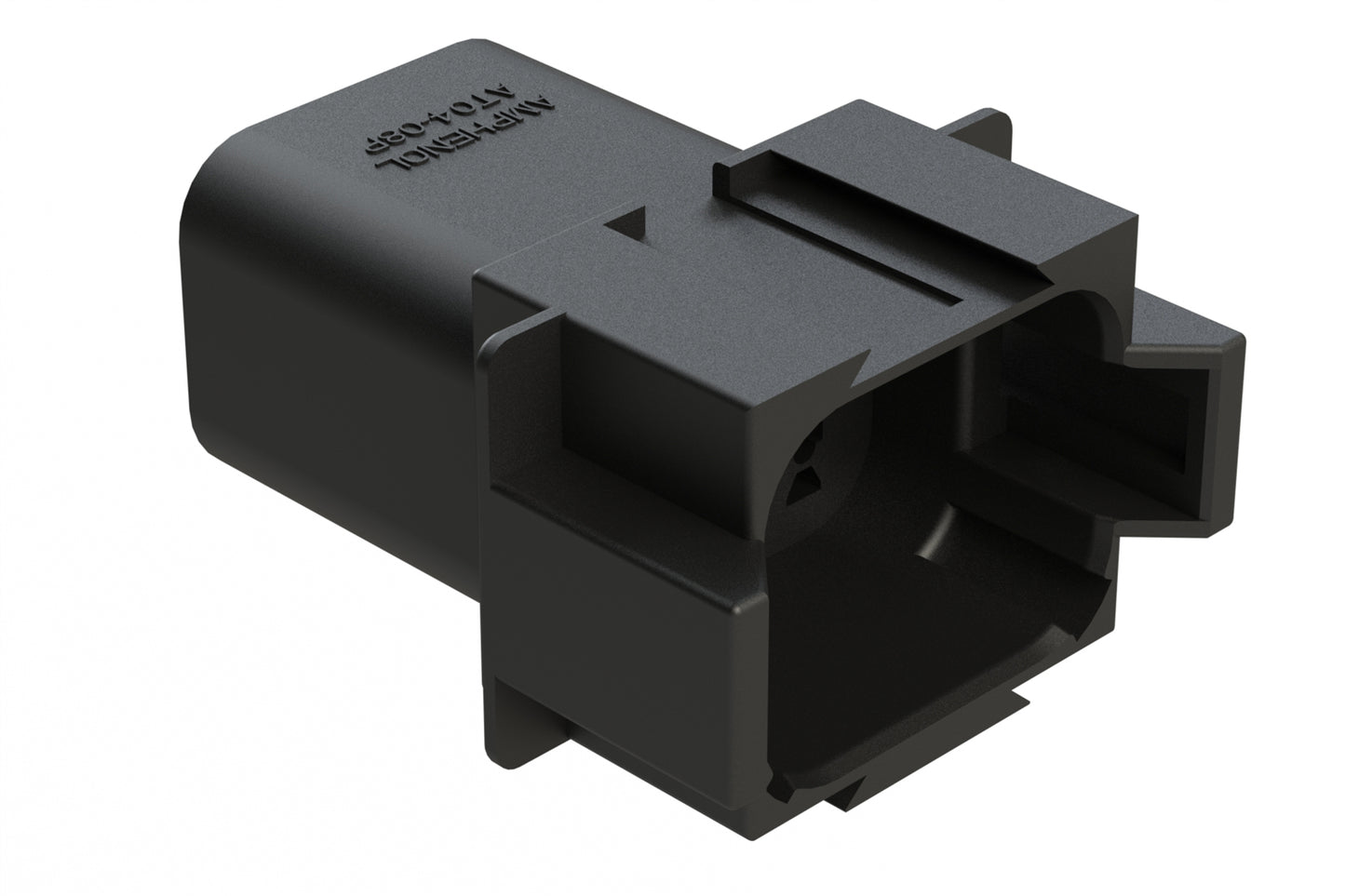

AT04-08PA-BLK 8-Way Receptacle, Male Connector with A Position Key, Black. DT04-08PA-E004
AT04-08PA-BLK 8-Way Receptacle, Male Connector with A Position Key, Black. DT04-08PA-E004
IMAGE MAY DIFFER
SKU:AT04-08PA-BLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8 A Position KeyGender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-08SA* Plug
Wedge Part: AW8P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
8-Way Receptacle, Male Connector with A Position Key, Black
