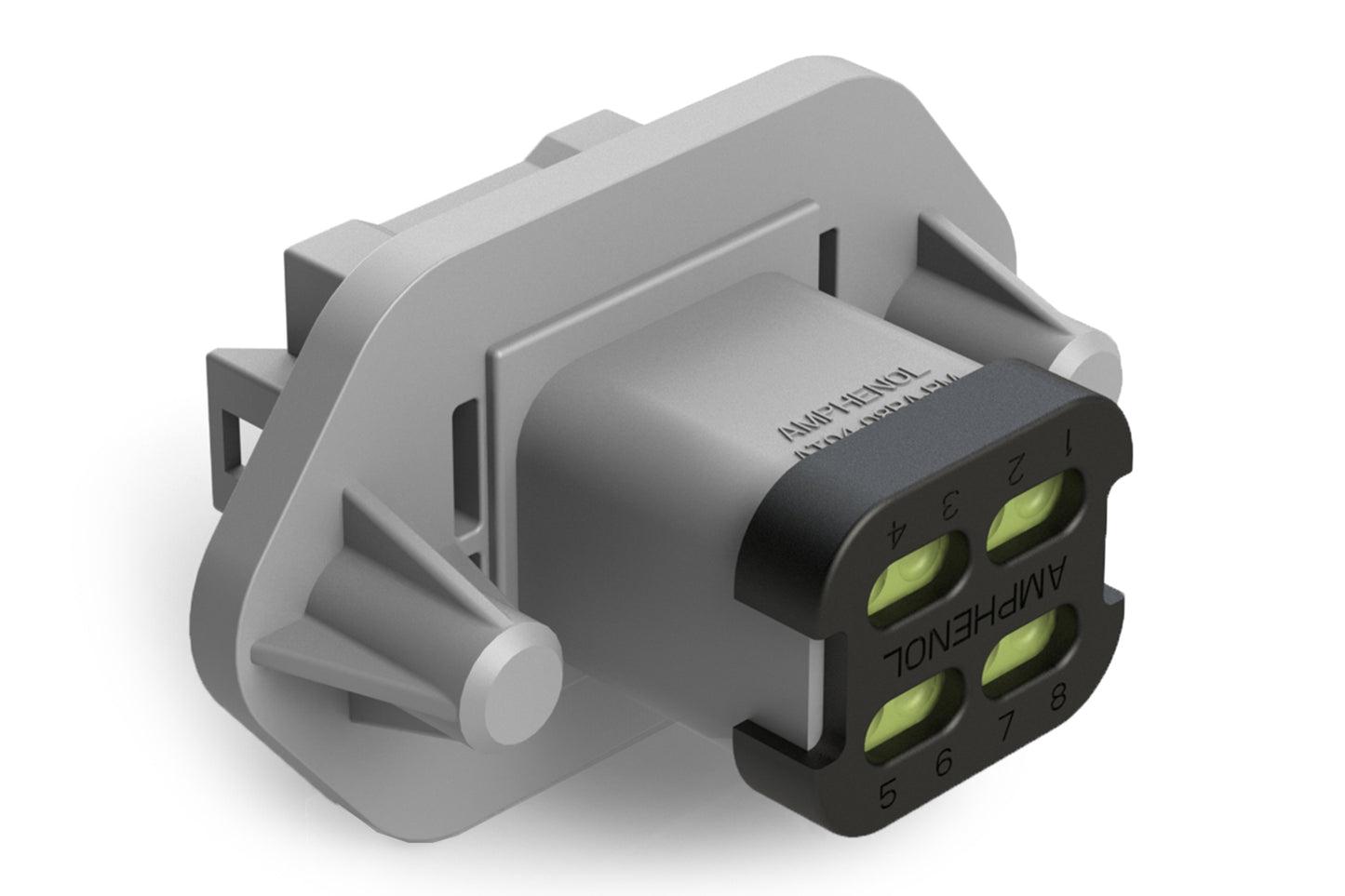

AT04-08PA-PM14 8 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal, Cap, Keyed A
AT04-08PA-PM14 8 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal, Cap, Keyed A
IMAGE MAY DIFFER
SKU:AT04-08PA-PM14
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 8Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-08SA* Plug
Wedge Part: AW8P
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Wire Range: 14-20AWG
Shape: Rectangular
8 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading, Reduced Diameter Seal, Cap, Keyed A
