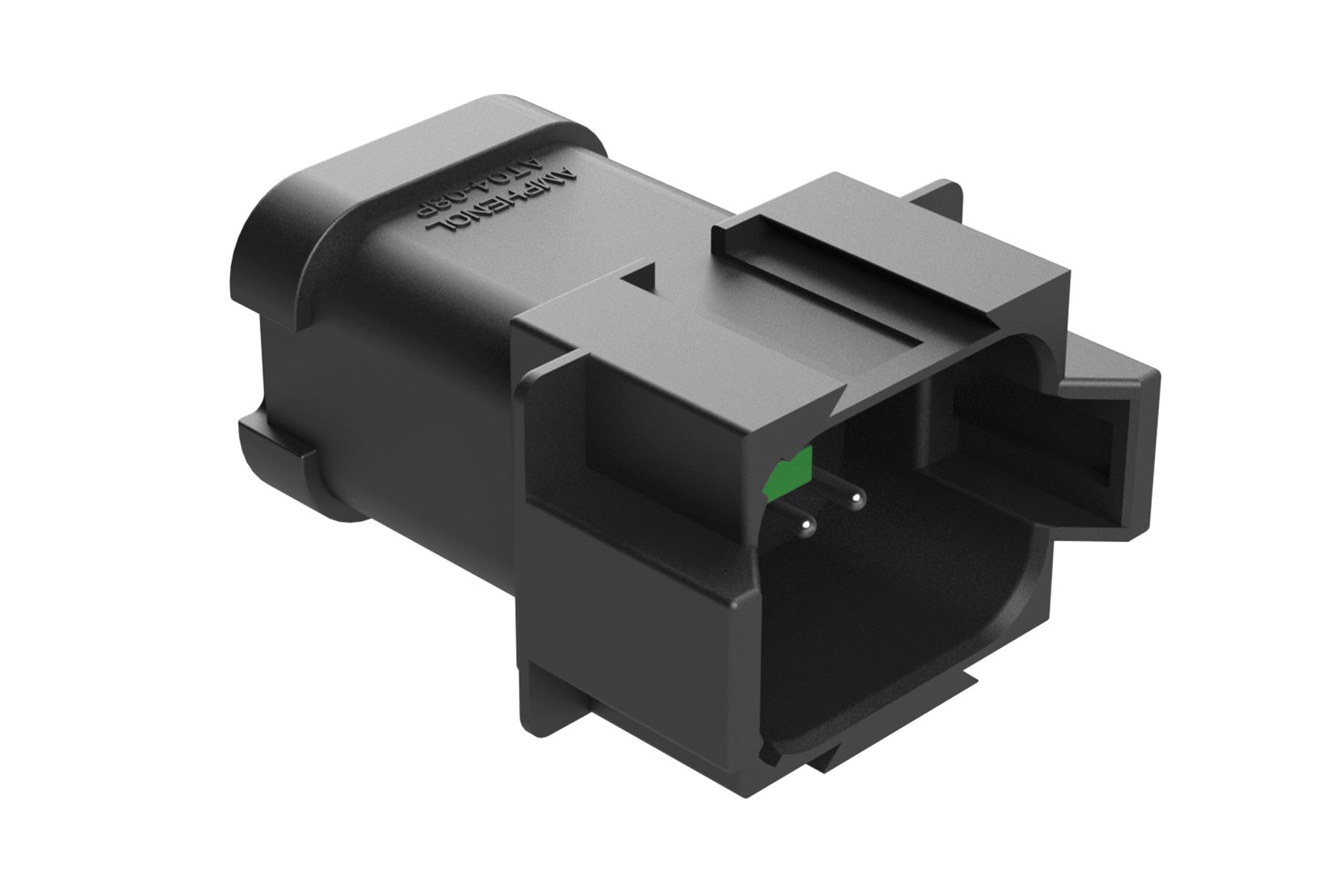

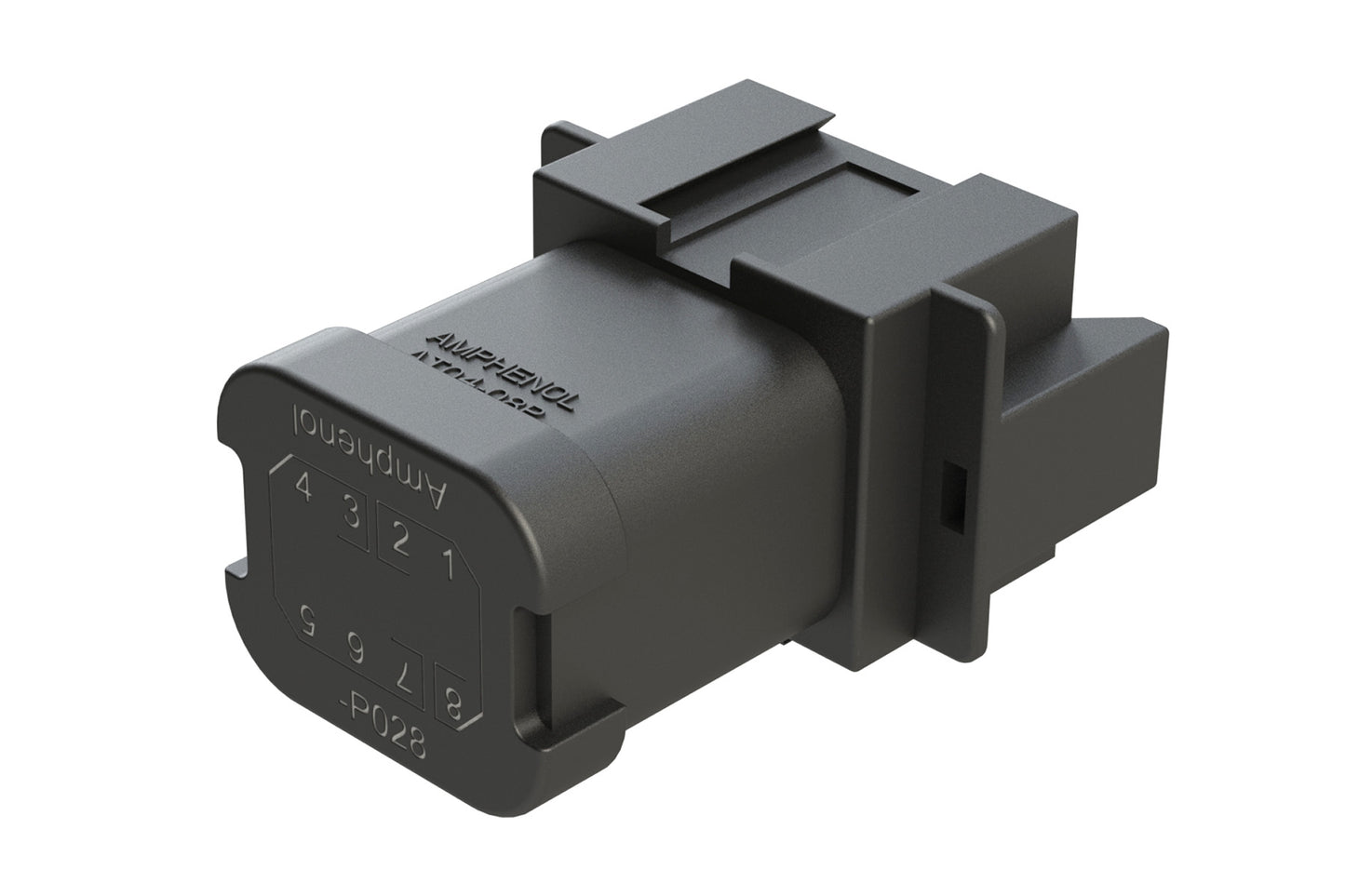

AT04-08PB-P028 8-way receptacle, (1) 3 Pin busbar=13 amps (1) 5 pin busbar=26 amps, nickel plating, keyed B, black. Contacts included. DT04-08PB-P028
AT04-08PB-P028 8-way receptacle, (1) 3 Pin busbar=13 amps (1) 5 pin busbar=26 amps, nickel plating, keyed B, black. Contacts included. DT04-08PB-P028
IMAGE MAY DIFFER
SKU:AT04-08PB-P028
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Male
Contact Size: contacts included
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: - 55C° to +125°C
Mating Cycle Durability: >100
Housing Material: Polyamide (PA)
Seal Material: Silicone Rubber
Mating Part: AT06-08SB* Plug
Wire Range: 14-20 AWG
Shape: Rectangular
8-way receptacle, (1) 3 Pin busbar=13 amps (1) 5 pin busbar=26 amps, nickel plating, keyed B, black. Contacts included
