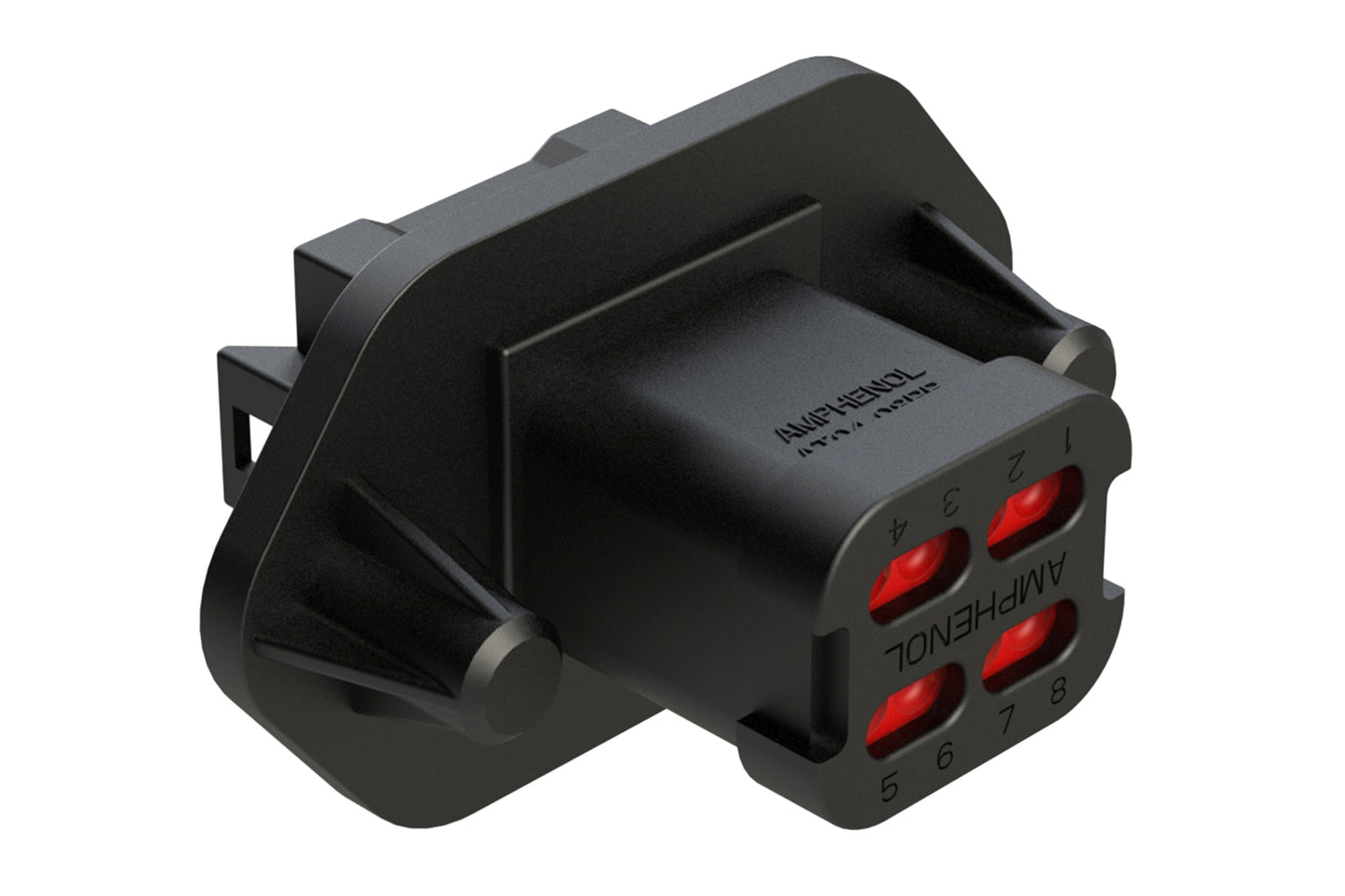

AT04-08PB-PM07 8 Position panel mount receptacle with endcap, Pin. Key position B
AT04-08PB-PM07 8 Position panel mount receptacle with endcap, Pin. Key position B
IMAGE MAY DIFFER
SKU:AT04-08PB-PM07
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet | 3D ModelSpecifications
No. of Positions: 8 B Position KeyGender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-08SB* Plug
Wedge Part: AW8P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
8 Position panel mount receptacle with endcap, Pin. Key position B
