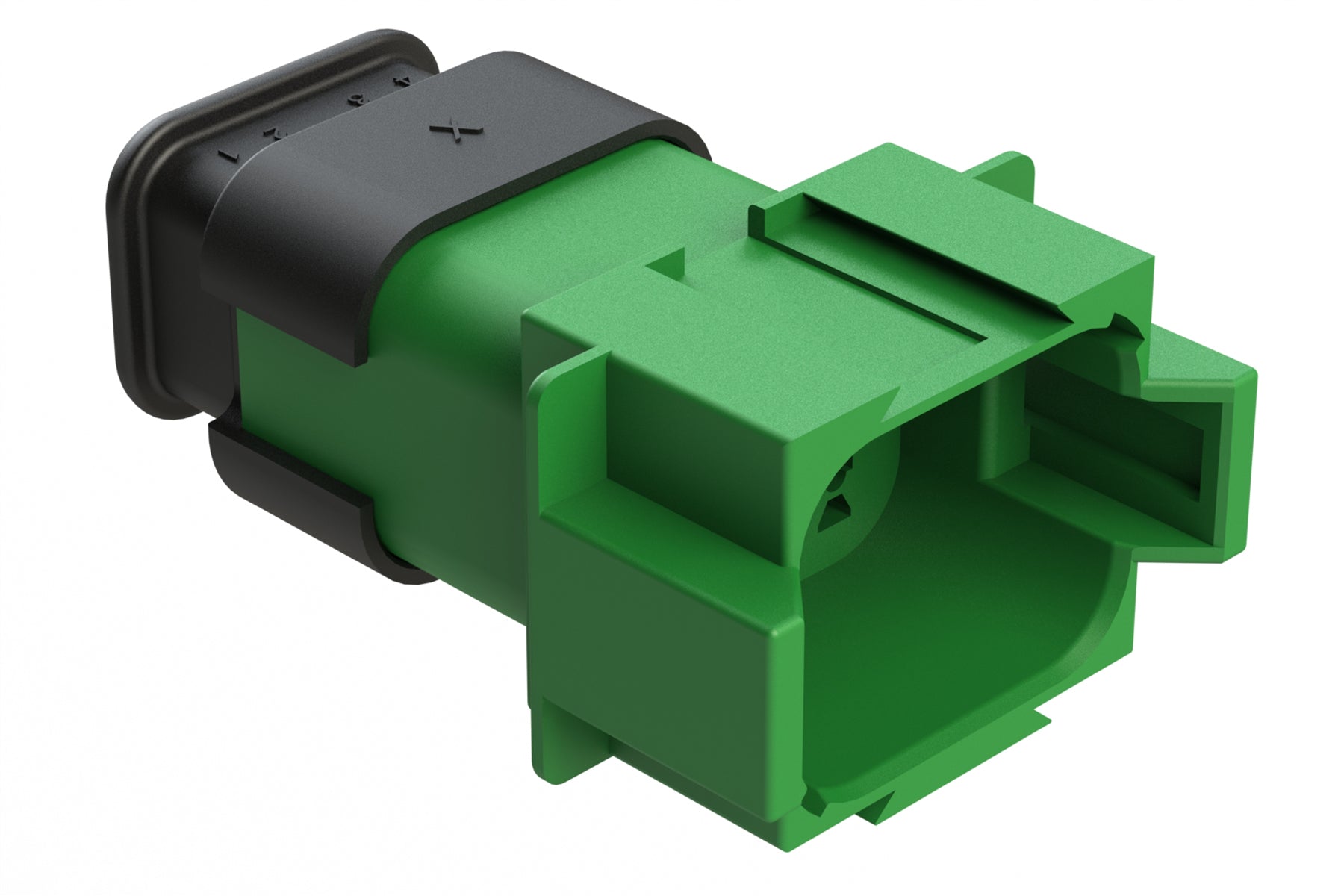

AT04-08PC-SRGN 8 position receptacle with strain relief endcap, Pin. Key position C, green. DT04-08PC-E008

AT04-08PC-SRGN 8 position receptacle with strain relief endcap, Pin. Key position C, green. DT04-08PC-E008

IMAGE MAY DIFFER

SKU:AT04-08PC-SRGN

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 8 C Position Key
Gender: Male
Contact Size: 16
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-08SC* Plug
Wedge Part: AW8P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular

8 position receptacle with strain relief endcap, Pin. Key position C, green
