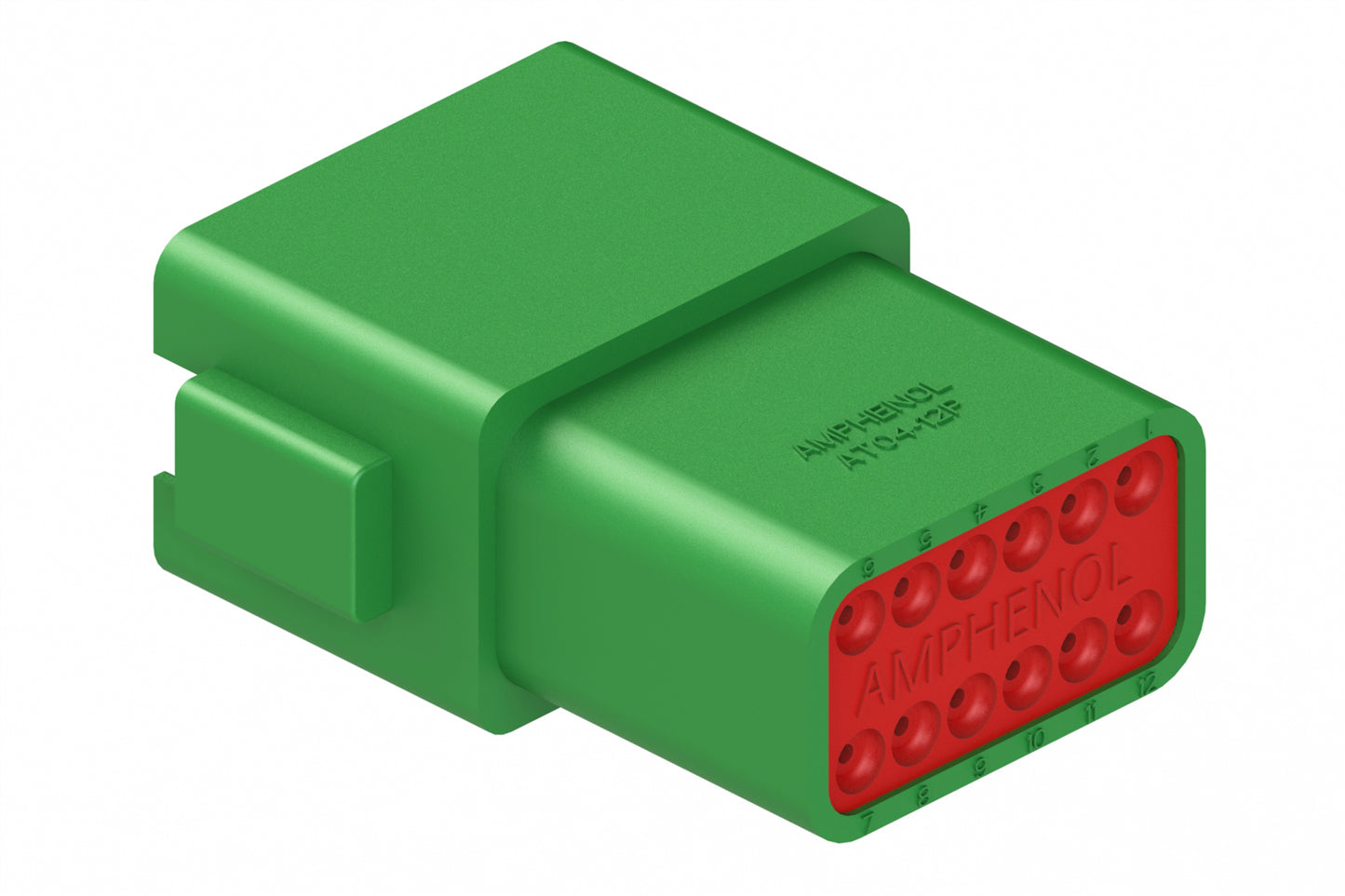

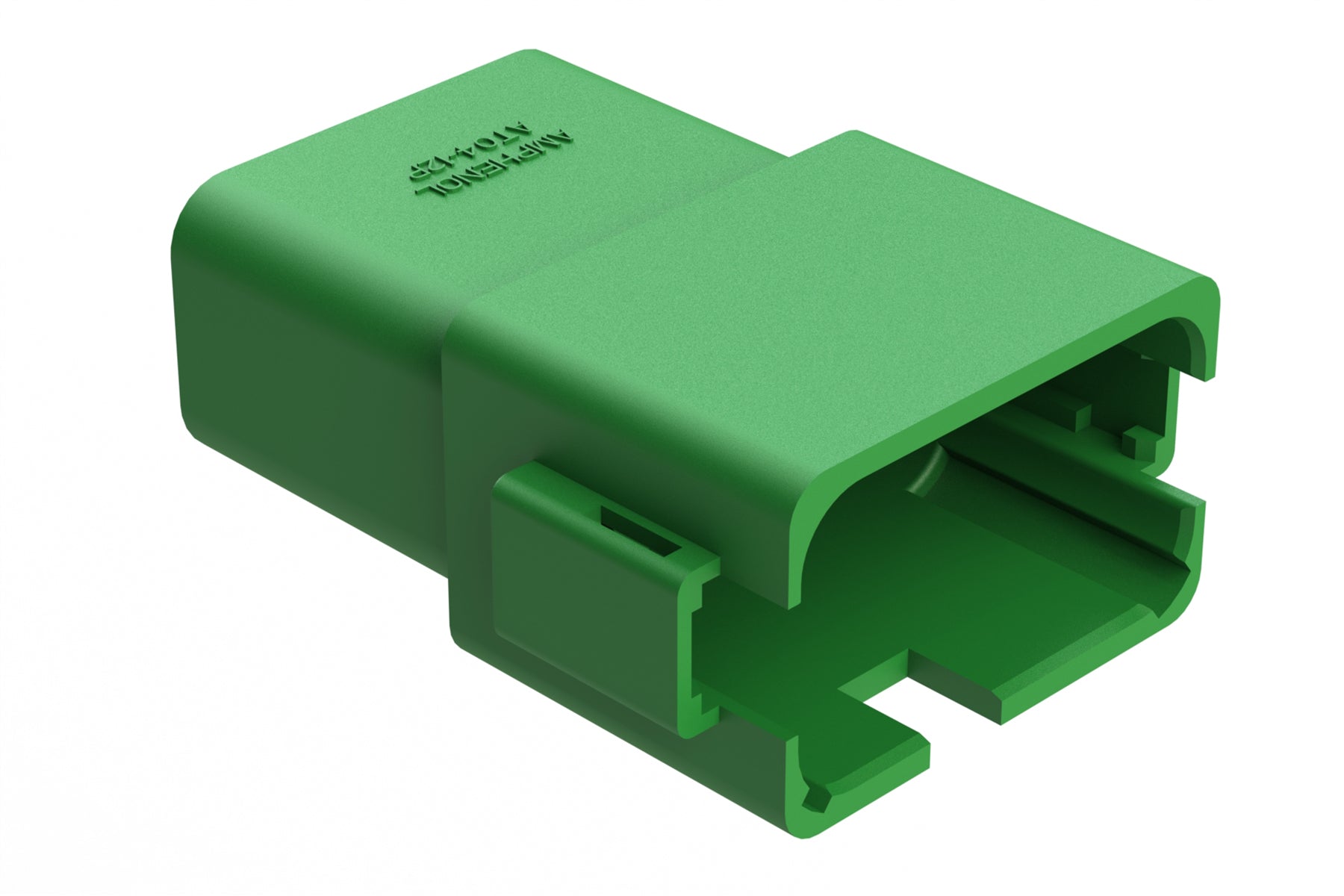

AT04-12PA-GRN 12-Way Receptacle, Black Male Connector with A Position Key and Extended Shroud, Green

Name: AT04-12PA-GRN 12-Way Receptacle, Black Male Connector with A Position Key and Extended Shroud, Green
Brand: Amphenol Sine Systems
SKU: AT04-12PA-GRN
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-12PA-GRN

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 12
Gender: Male
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-12SA* Plug
Wedge Part: AW12P
Wire Range: 14-20 AWG
Shape: Rectangular

12-Way Receptacle, Black Male Connector with A Position Key and Extended Shroud, Green

View full details
