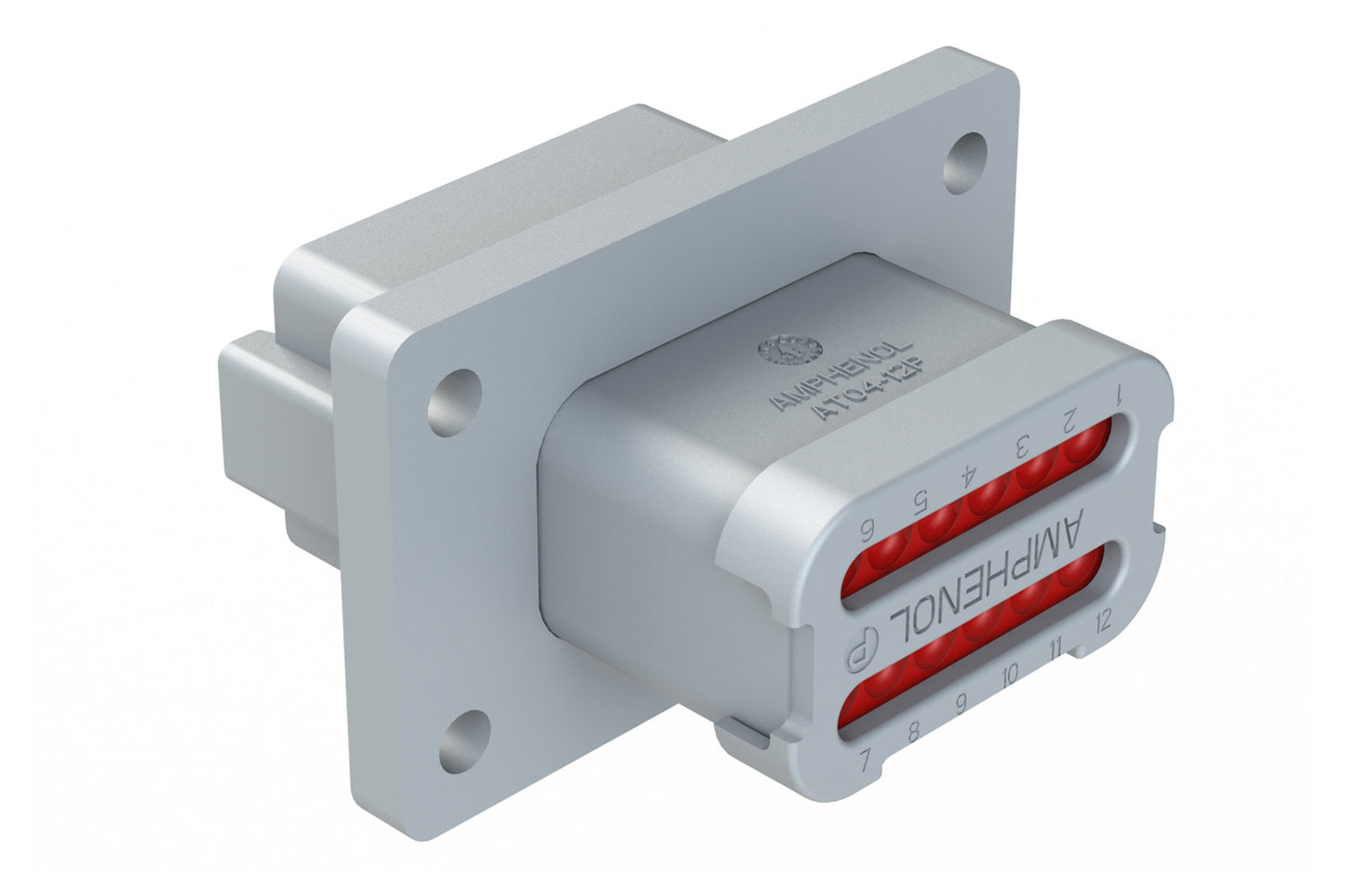

AT04-12PA-LE07 12 Position Receptacle Flange Mount Connector, Pin, Grey, Keyed A, with Endcap. DT04-12PA-LE07

Name: AT04-12PA-LE07 12 Position Receptacle Flange Mount Connector, Pin, Grey, Keyed A, with Endcap. DT04-12PA-LE07
Brand: Amphenol Sine Systems
SKU: AT04-12PA-LE07
Availability: InStock

IMAGE MAY DIFFER

SKU:AT04-12PA-LE07

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet | 3D Model

Specifications

No. of Positions: 12
Gender: Male
Contact Size: 16
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone rubber
Mating Part: AT06-12SA* PLUG
Wedge Part: AW12P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Shape: Rectangular

12 Position Receptacle Flange Mount Connector, Pin, Grey, Keyed A, with Endcap

View full details
